Description

Price

1

WHEEL,REAR (BLACK) | BODY COLOR:JWN,KGL,CJH

64111-10L01-019

$959.55

2

SPACER,RR WHEEL BEARING

64731-40F10

$67.28

3

BEARING (28X52X12)

09262-28062

$23.81

4

SEAL,OIL (37X52X8)

09284-37002

$7.19

5

RING,SPEED SENSOR RR

64162-10L00

$26.30

6

BOLT

07130-0512A

$2.19

7

DISC,REAR BRAKE

69211-10L00

$215.20

8

BOLT (8X21)

09106-08160

$3.22

9

AXLE,RR

64711-33E20

$175.22

10

WASHER (25.2X42X3.2)

09160-25070

$4.30

11

NUT,REAR AXLE

64721-17K00

$15.01

12

SPACER,REAR AXLE,R

64741-35F10

$12.34

13

SPACER,RR AXLE,L

64751-49G00

$36.60

14

DRUM,RR SPROCKET

64610-35F30

$363.98

15

RETAINER,RR SPROCKET DRUM

64733-35F00

$24.36

16

BEARING (32X65X17)

09262-32024

$35.55

17

SEAL,OIL (39X65X7)

09285-39001

$9.58

18

ABSORBER,RR HUB SHOCK

64651-35F30

$50.20

19

SPROCKET,RR (NT:43)

64511-15H00

$152.87

20

NUT

08319-3110A

$2.73

21

TIRE,REAR 190/5 This part replaces 65110-10L00.

65110-10L01

$362.78

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

23-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

23-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

23-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

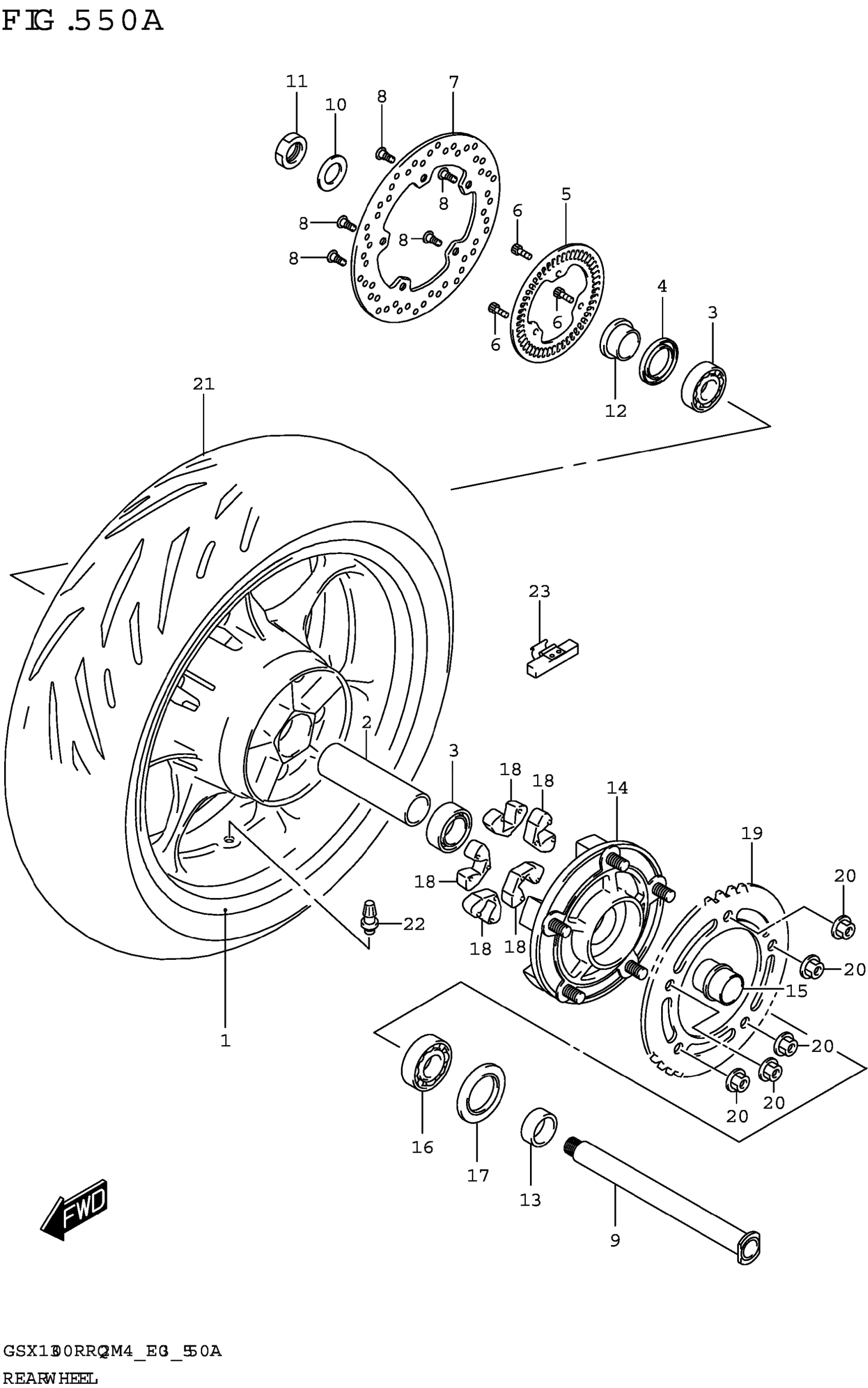

Suzuki GSX1300RRQ2M4 (2024) REAR WHEEL Diagram
