Description

Price

1

EMBLEM,S

68281-47HA0

$7.11

2

HANDLEBAR,R

56111-10L01

$202.58

3

BOLT,HANDLEBAR

56123-10L00

$8.18

4

HANDLEBAR,L

56151-10L01

$202.58

5

HOLDER,HANDLEBAR

56211-10L00

$215.20

6

CUSHION,UPR BRKT

56240-01D01

$37.40

7

SPACER,STEERING STEM HEAD

56243-01D00

$10.62

8

CUSHION,HANDLE HOLDER

56247-24F00

$12.83

9

BOLT,HANDLE HOLDER

56249-10L00

$9.77

10

BOLT,HANDLE BALANCER

56277-10L00

$5.59

11

BALANCER,HANDLEBAR

56278-10L00

$27.65

12

MIRROR ASSY,REAR VIEW,R

56500-10L00

$164.55

13

MIRROR ASSY,REAR VIEW,L

56600-10L00

$164.55

14

NUT,RR VIEW MIRROR

56619-41G01

$8.52

15

CABLE ASSY,THROTTLE NO.1

58300-10L00

$51.92

16

CABLE ASSY,THROTTLE NO.2

58300-10L10

$51.92

17

GUIDE,CABLE

58623-24F10

$8.87

18

SCREW (5X10)

09125-05042

$1.98

19

CLAMP

09403-07344

$2.72

20

BOLT

01547-0612A

$2.01

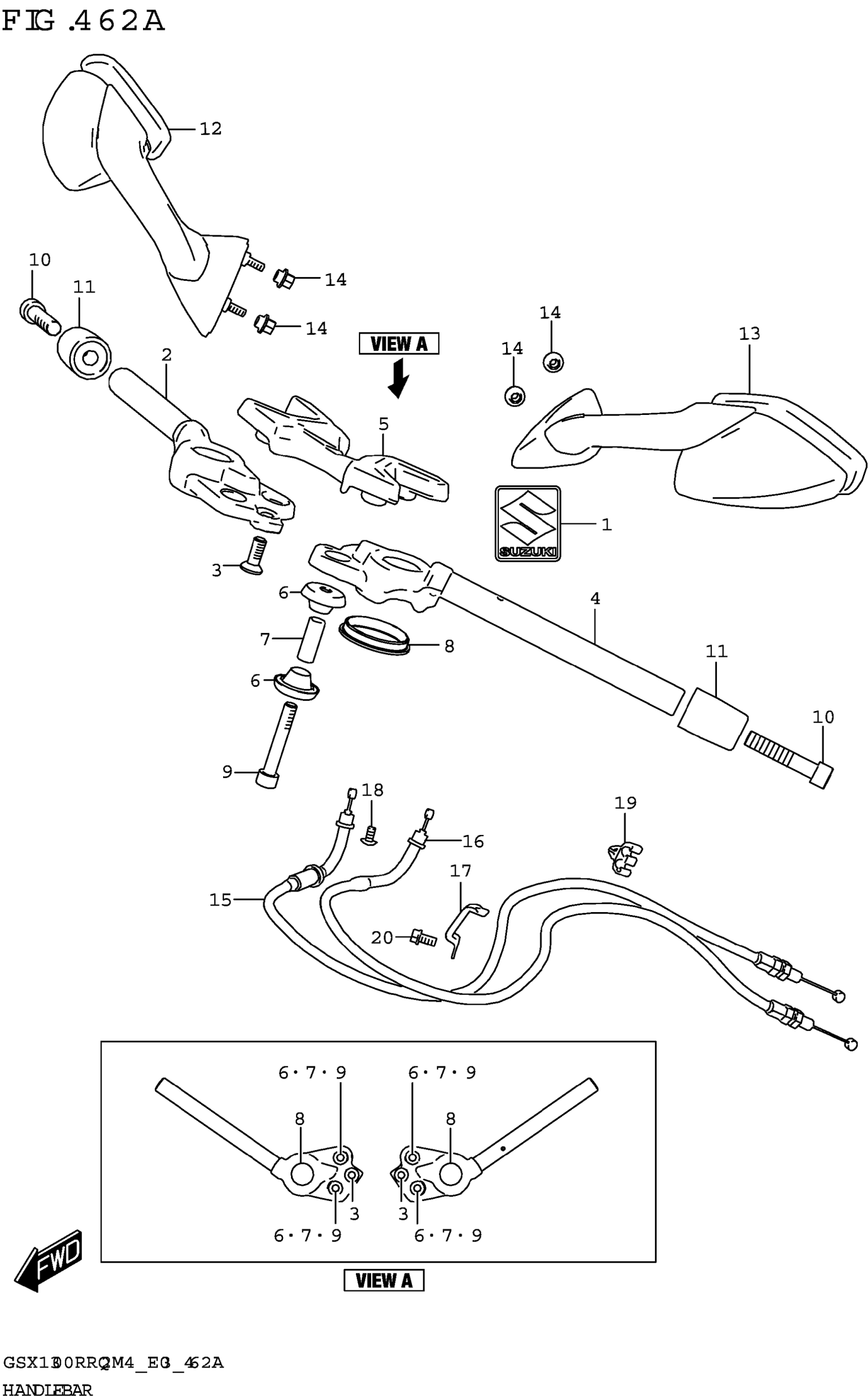

Suzuki GSX1300RRQ2M4 (2024) HANDLEBAR Diagram
