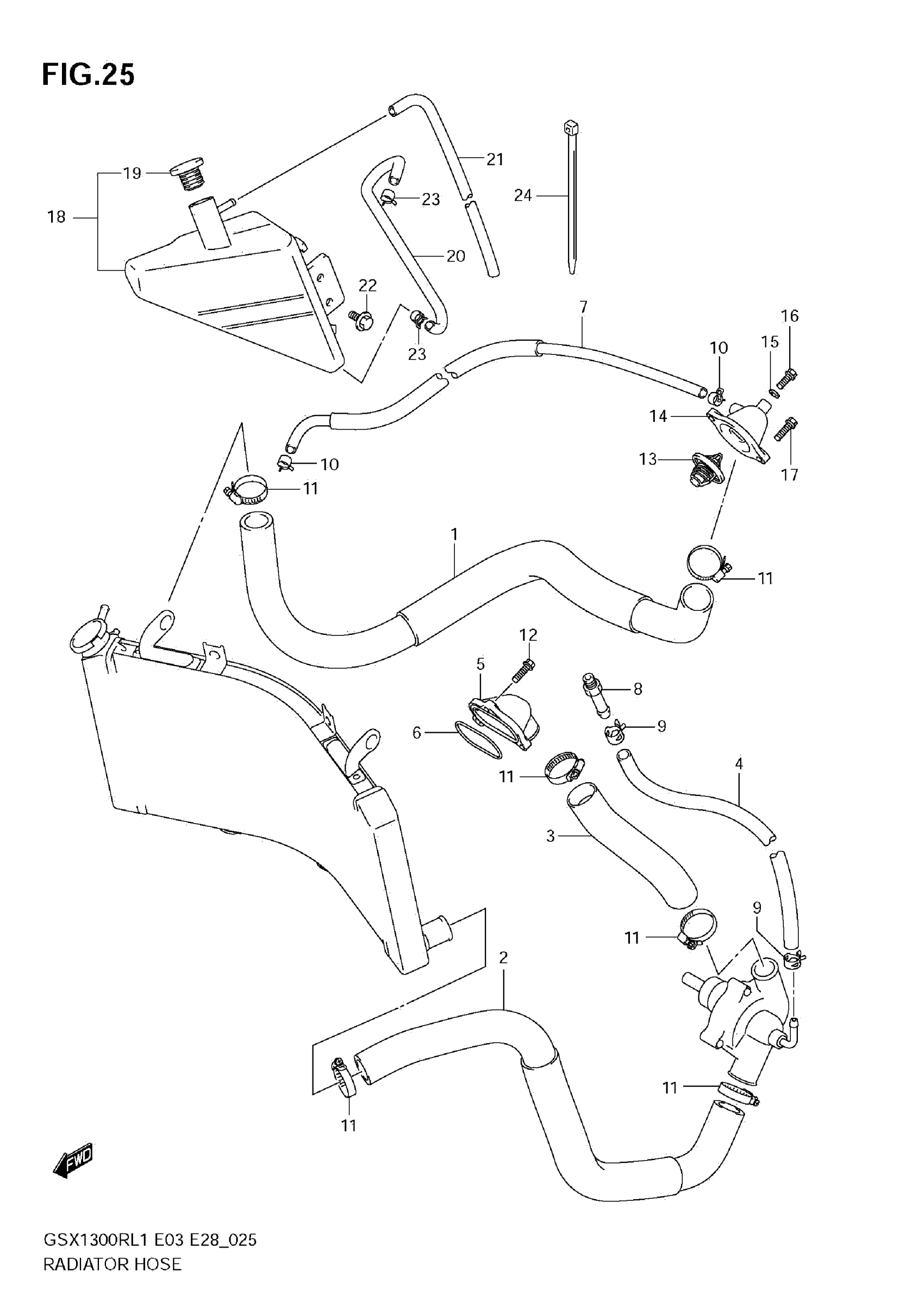

Find the part on the Radiator Hose diagram for your 2011 Suzuki GSX1300RL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX1300RL1 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, RADIATOR INLET

17851-15H00

1

$76.85

In stock

2

HOSE, RADIATOR OUTLET

17852-15H00

1

$65.10

In stock

3

HOSE, CYLINDER INLET

17853-24F00

1

$20.19

In stock

4

HOSE, WATER BYPASS

17854-24F00

1

$25.87

In stock

5

CONNECTOR

17861-33E20

1

$22.49

In stock

6

O-RING

17863-33E00

1

$4.02

In stock

7

HOSE, WATER AIR BLEED

17855-15H00

1

$38.08

In stock

8

UNION, BYPASS

09362-09011

1
Out of stock

9

CLIP This part replaces 09401-12409.

09401-12414

2
Out of stock

10

CLIP (ID:10.5,H:8)

09401-10409

2
Out of stock

11

CLAMP

09402-38512

6

$11.57

In stock

12

BOLT

01547-0620A

3
Out of stock

13

THERMOSTAT,WATER

17670-15H00

1

$36.68

In stock

14

COVER, THERMOSTAT

17661-35F00

1

$57.22

In stock

15

GASKET (6.4X11.5X0.8)

09168-06026

1

$3.00

In stock

16

BOLT

17568-50F00

1
Out of stock

17

BOLT

01547-0620A

2
Out of stock

18

TANK ASSY, RESERVOIR

17910-15H00

1

$86.32

In stock

19

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

20

1

$18.70

In stock

21

HOSE, RESERVER TANK OVERFLOW

17982-22H00

1
Out of stock

22

BOLT (6X12)

09111-06085

1
Out of stock

23

CLIP

09401-08411

2
Out of stock

24

CLAMP (L:145)

09407-14407

1
Out of stock
