2011 Suzuki GSX1300RL1 Crankcase Cover Diagram

← All diagrams

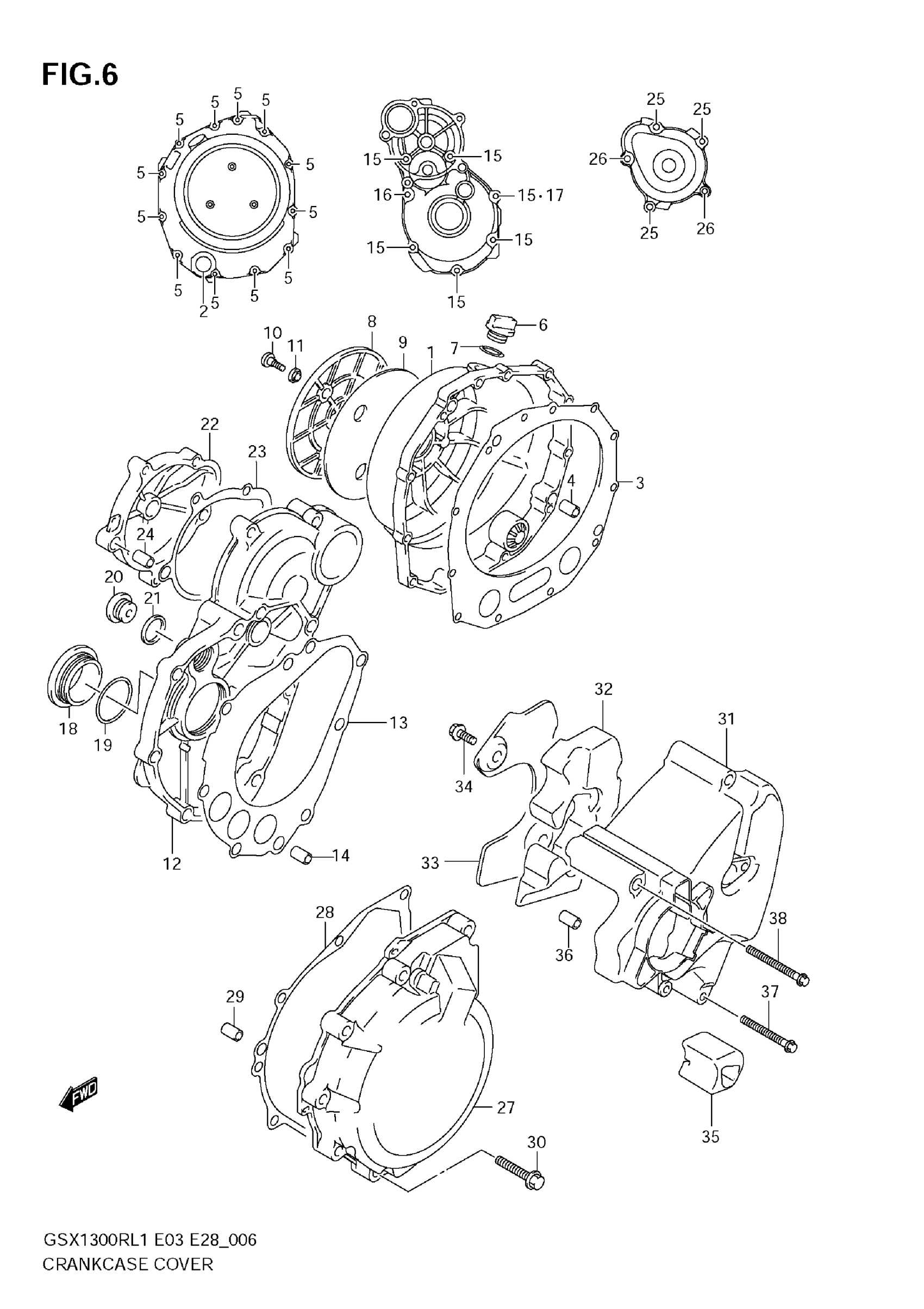

Find the part on the Crankcase Cover diagram for your 2011 Suzuki GSX1300RL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX1300RL1 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11340-24F01

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

GASKET, CLUTCH COVER

11482-24F00

1
Out of stock

4

PIN

04211-09189

2

$1.77

In stock

5

BOLT (6X30)

09103-06213

12

$2.63

In stock

6

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

7

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

8

COVER, CLUTCH OUTER

11371-24F00

1
Out of stock

9

CUSHION, CLUTCH OUTER COVER

11372-24F00

1
Out of stock

10

SCREW (6X16)

09139-06107

3
Out of stock

11

WASHER, CL OUTER COVER SCREW

11373-24F00

3
Out of stock

12

COVER,STARTER CLUTCH

11380-24F20

1
Out of stock

13

GASKET, STARTER CLUTCH COVER

11491-24F01

1
Out of stock

14

PIN

04211-09149

2
Out of stock

15

BOLT (6X25)

09103-06212

6
Out of stock

16

BOLT (6X35)

09103-06214

1
Out of stock

17

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

18

PLUG

09259-36021

1

$13.37

In stock

19

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

20

PLUG

09248-16012

1
Out of stock

21

GASKET (16X22X2)

09168-16002

1
Out of stock

22

CAP,STARTER IDLE GEAR

11382-24F20

1
Out of stock

23

GASKET, STARTER IDLE GEAR CAP

11492-24F00

1
Out of stock

24

PIN

04211-09149

2
Out of stock

25

BOLT (6X25)

09103-06212

3
Out of stock

26

BOLT (6X35)

09103-06214

2
Out of stock

27

COVER, MAGNETO

11351-24F00

1
Out of stock

28

GASKET, MAGNETO COVER

11483-24F00

1
Out of stock

29

PIN

04211-09149

2
Out of stock

30

BOLT (6X30)

09103-06213

9

$2.63

In stock

31

COVER, ENGINE SPROCKET

11361-15H00

1
Out of stock

32

DAMPER, ENGINE SPROCKET COVER

11362-15H00

1
Out of stock

33

PLATE, ENGINE SPROCKET COVER

11363-15H00

1
Out of stock

34

BOLT (6X12)

09103-06172

2
Out of stock

35

PROTECTOR,ENGIN This part replaces 11364-15H00.

11364-15H01

1
Out of stock

36

PIN

04211-09149

2
Out of stock

37

BOLT (6X55)

09103-06216

2
Out of stock

38

BOLT (6X65)

09103-06239

2
Out of stock
