2011 Suzuki GSX1300RL1 CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2011 Suzuki GSX1300RL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

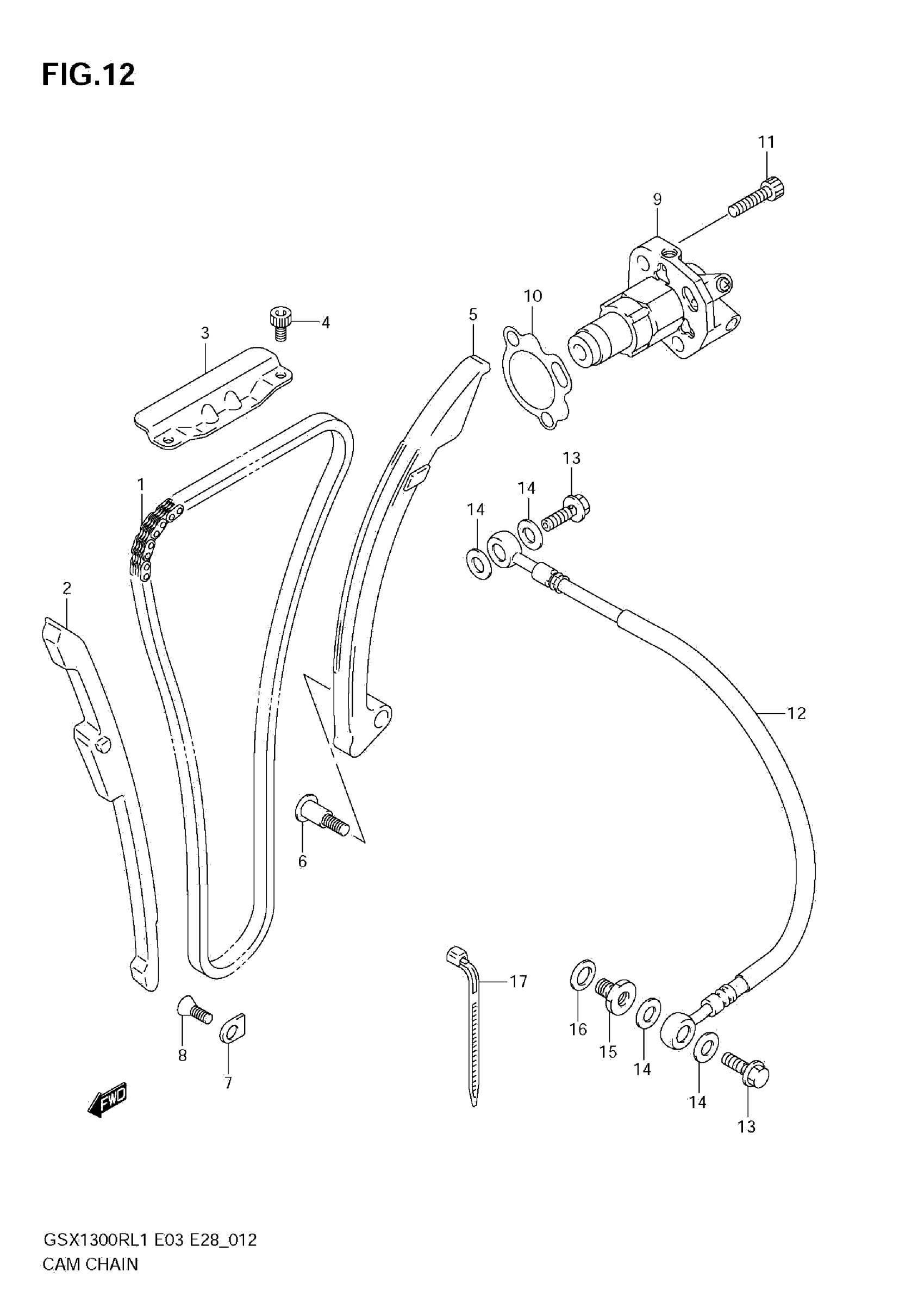

2011 Suzuki GSX1300RL1 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE

12760-24F01

1
Out of stock

2

GUIDE,CAM CHAIN NO.1 This part replaces 12771-15H00.

12771-15H01

1
Out of stock

3

GUIDE,CAM CHAIN This part replaces 12782-24F01.

12782-24F02

1
Out of stock

4

SCREW

07130-0612A

2
Out of stock

5

TENSIONER,CAM C This part replaces 12811-15H00.

12811-15H01

1
Out of stock

6

BOLT

12812-31G00

1
Out of stock

7

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

1
Out of stock

8

SCREW

02122-0612A

1
Out of stock

9

ADJUSTER ASSY, TENSIONER This part replaces 12830-15H00.

12830-15H01

1
Out of stock

10

GASKET, TNSN ADJUSTER

12837-02H00

1
Out of stock

11

BOLT (6X25)

07130-0625A

2
Out of stock

12

HOSE,CAM CHAIN TNSN ADJ OIL

12835-15H00

1
Out of stock

13

BOLT,ADJ OIL HOSE UNION

12838-15H00

2
Out of stock

14

GASKET (7.8X13.5X1.2)

09168-08034

4
Out of stock

15

PLUG,ADJ OIL HOSE UNION This part replaces 12839-15H00.

12839-15H01

1
Out of stock

16

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

17

CLAMP (L:165)

09407-18402

1
Out of stock
