2011 Suzuki GSX1300RL1 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2011 Suzuki GSX1300RL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

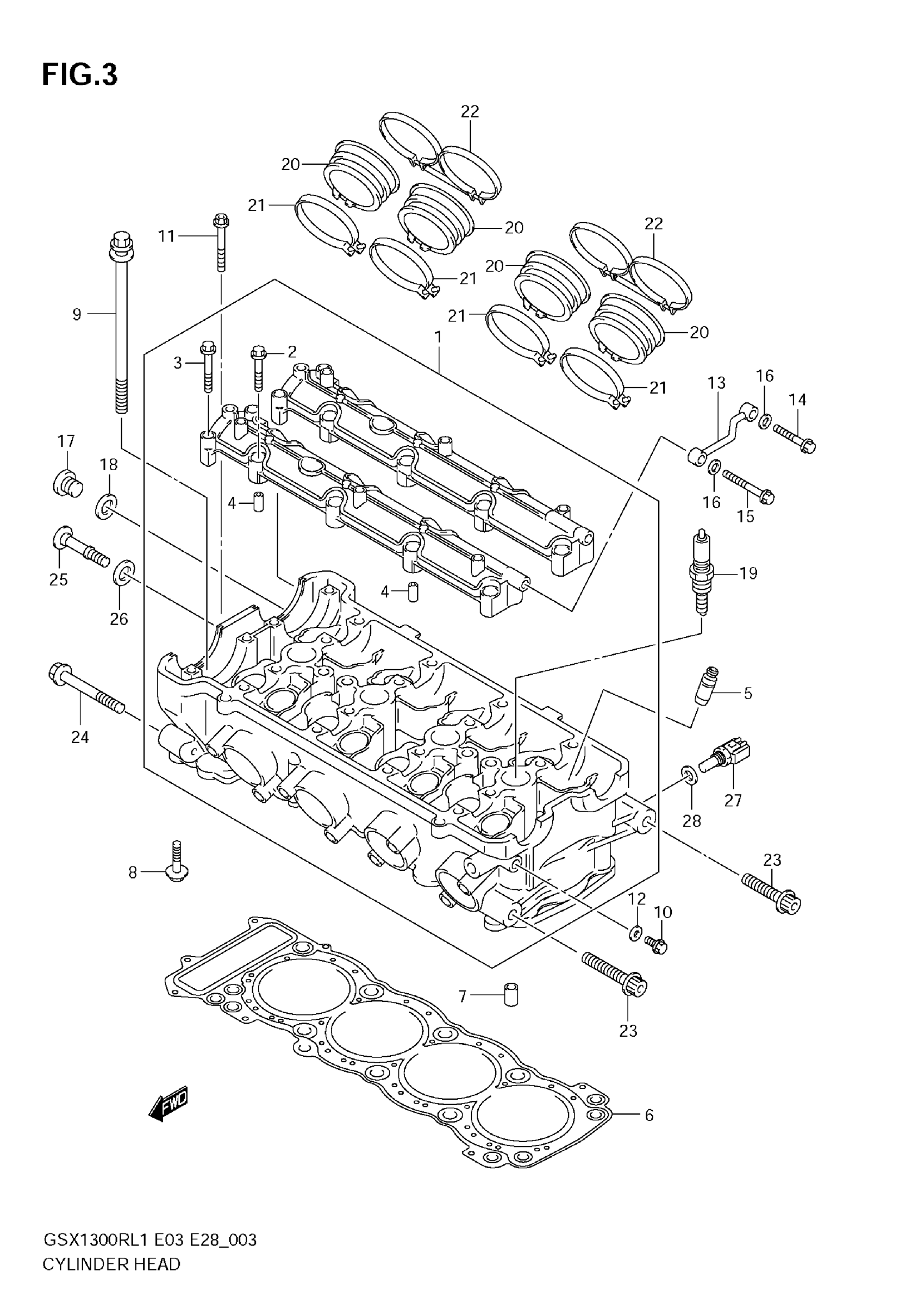

2011 Suzuki GSX1300RL1 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$2,223.67

In stock

2

BOLT (6X40)

09103-06266

16
Out of stock

3

BOLT (6X45)

09103-06293

4

$2.75

In stock

4

PIN

09206-08007

4

$2.84

In stock

5

16

$46.98

In stock

6

GASKET, CYLINDER HEAD

11141-15H00

1

$108.05

In stock

7

PIN

04211-11169

2

$1.90

In stock

8

BOLT

01550-0630B

1

$2.92

In stock

9

10

$18.33

In stock

10

BOLT (6X12)

09103-06222

1

$2.45

In stock

11

BOLT

07120-0655B

2
Out of stock

12

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

13

1

$52.72

In stock

14

BOLT

01550-0635A

1
Out of stock

15

BOLT

01550-0645A

1
Out of stock

16

WASHER

08322-0106A

2
Out of stock

17

PLUG

09248-16012

1
Out of stock

18

GASKET (16X22X0.8)

09168-16009

1

$2.68

In stock

19

4

$11.59

In stock

19

4

$16.44

In stock

19

SPARK PLUG (CR8EIA-9) | OPT NGK

09482-00556

4
Out of stock

19

4

$10.74

In stock

19

SPARK PLUG (IU24D) | OPT DENSO

09482-00555

4
Out of stock

19

4

$21.92

In stock

20

4

$20.30

In stock

21

..CLAMP

09402-60208

4

$4.95

In stock

22

CLAMP

13170-15H10

2

$27.78

In stock

23

BOLT (10X45)

09106-10069

2

$4.10

In stock

24

BOLT (10X60)

09106-10084

2

$7.03

In stock

25

1

$10.16

In stock

26

WASHER

11191-13E00

1

$4.52

In stock

27

SENSOR, WATER TEMPERATURE

13650-49X00

1
Out of stock

28

GASKET (12X17X1)

09168-12017

1
Out of stock
