2016 Suzuki GSX1300RAL6 Radiator Hose Diagram

← All diagrams

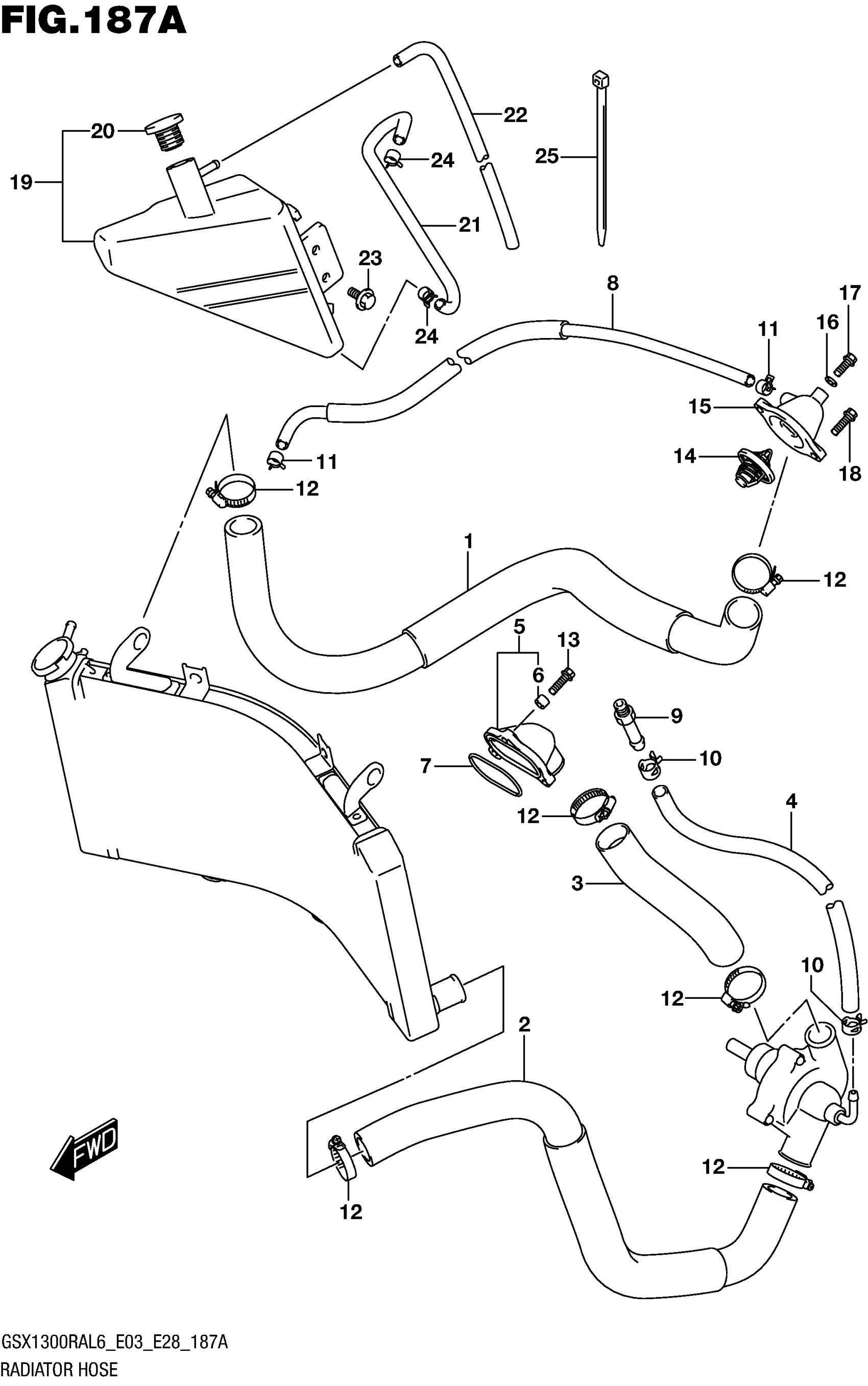

Find the part on the Radiator Hose diagram for your 2016 Suzuki GSX1300RAL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki GSX1300RAL6 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, RADIATOR INLET

17851-15H00

1
Out of stock

2

HOSE, RADIATOR OUTLET

17852-15H00

1
Out of stock

3

HOSE, CYLINDER INLET

17853-24F00

1
Out of stock

4

HOSE, WATER BYPASS

17854-24F00

1
Out of stock

5

CONNECTOR

17861-33E20

1
Out of stock

6

.SPACER (6.5X9X8)

09180-06261

3
Out of stock

7

O RING

17863-33E00

1
Out of stock

8

HOSE, WATER AIR BLEED

17855-15H00

1
Out of stock

9

UNION

09362-09011

1
Out of stock

10

CLIP

09401-12414

2
Out of stock

11

CLIP (ID:10.5,H:8)

09401-10409

2
Out of stock

12

CLAMP

09402-35501

6
Out of stock

13

BOLT

01547-0620A

3
Out of stock

14

THERMOSTAT,WATER

17670-15H00

1
Out of stock

15

COVER, THERMOSTAT

17661-35F00

1
Out of stock

16

GASKET (6.4X11.5X0.8)

09168-06026

1
Out of stock

17

UNION, AIR VENT

17568-50F00

1
Out of stock

18

BOLT

01547-0620A

2
Out of stock

19

TANK ASSY, RESERVOIR

17910-15H00

1
Out of stock

20

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

21

HOSE, RESERVER TANK INLET

17981-15H00

1
Out of stock

22

HOSE, RESERVER TANK OVERFLOW

17982-22H00

1
Out of stock

23

BOLT (6X12)

09111-06085

1
Out of stock

24

CLIP

09401-08411

2
Out of stock

25

CLAMP (L:145)

09407-14407

1
Out of stock
