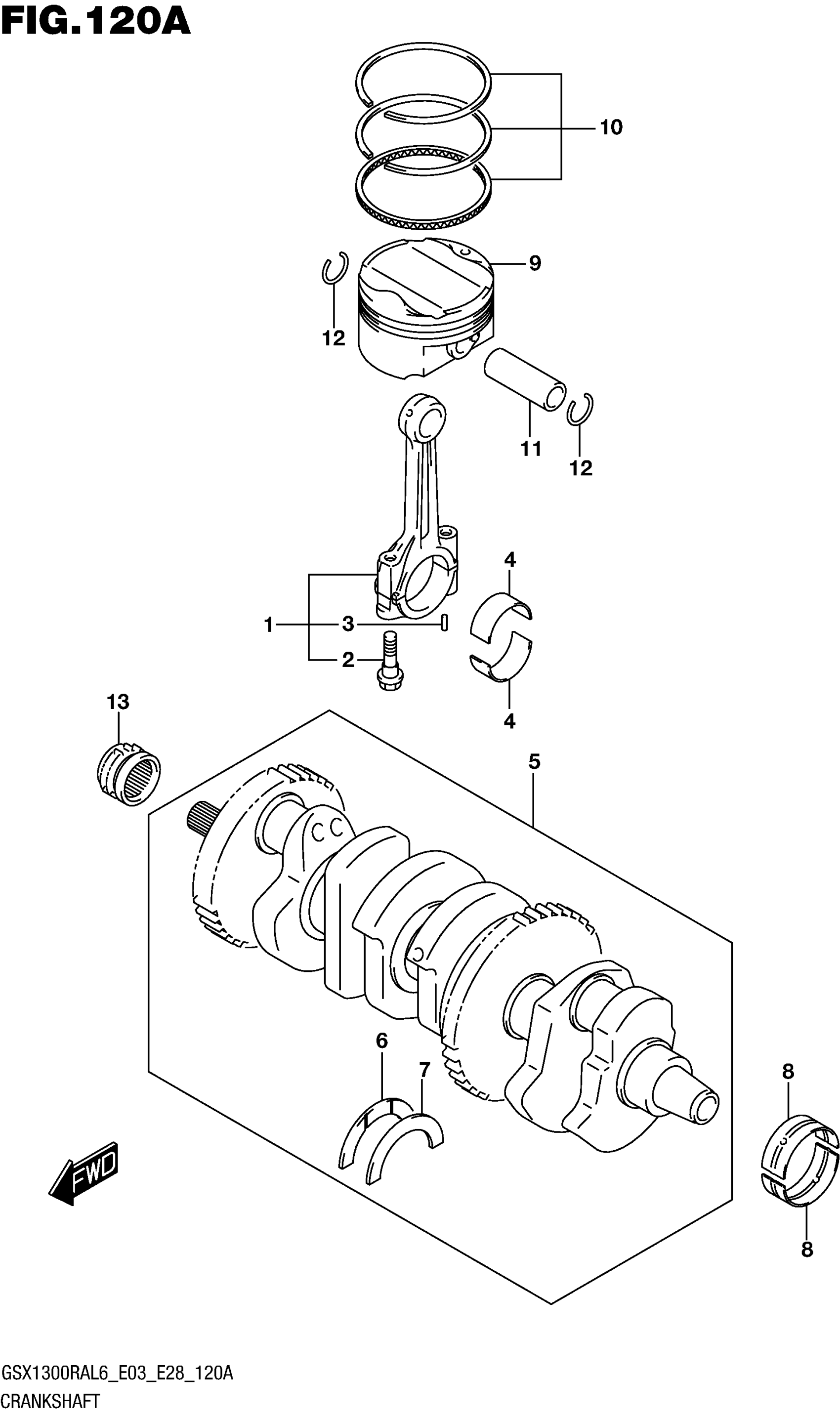

Suzuki GSX1300RAL6 (2016) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING

12160-15H00

$266.58

2

.BOLT,CONNECTING ROD

12163-24F10

$15.05

3

PIN (4X13.8)

04221-04089

$1.10

4-1

BEARING, CRANK PIN (GREEN)

12164-46E01-0A0

$15.38

4-2

BEARING, CRANK PIN (BLACK)

12164-46E01-0B0

$15.38

4-3

BEARING, CRANK PIN (BROWN)

12164-46E01-0C0

$15.84

4-4

BEARING, CRANK PIN (YELLOW)

12164-46E01-0D0

$15.84

5

CRANKSHAFT SET

12000-15810

$2,274.95

6

.BEARING, THRUST RH (GREEN)

12228-24F00-0D0

$10.18

7-1

.BEARING,CRANK THRUST,L (RED)

12228-24F00-0A0

$14.45

7-2

.BEARING,CRANK THRUST,L (BLAC

12228-24F00-0B0

$10.18

7-3

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$14.35

7-4

.BEARING, THRUST LH (GREEN)

12228-24F00-0D0

$10.18

7-5

.BEARING,CRANK THRUST,L (YELL

12228-24F00-0E0

$14.98

7-6

.BEARING,CRANK THRUST,L (WHIT

12228-24F00-0F0

$14.98

8-1

BEARING,CRANKSHAFT (GREEN)

12229-15H10-0A0

$12.55

8-2

BEARING,CRANKSHAFT (BLACK)

12229-15H10-0B0

$13.08

8-3

BEARING,CRANKSHAFT (BROWN)

12229-15H10-0C0

$12.71

8-4

BEARING,CRANKSHAFT (YELLOW)

12229-15H10-0D0

$12.71

8-5

BEARING,CRANKSHAFT (BLUE)

12229-15H10-0E0

$13.53

9

PISTON

12111-15H00-0F0

$275.60

10

RING SET, PISTON

12140-15H10

$88.84

11

PIN, PISTON

12151-07D00

$20.82

12

CIRCLIP This part replaces 09381-18003.

09381-18005

$1.91

13

SPROCKET,CAM CHAIN DRIVE

12731-24F10

$71.75
