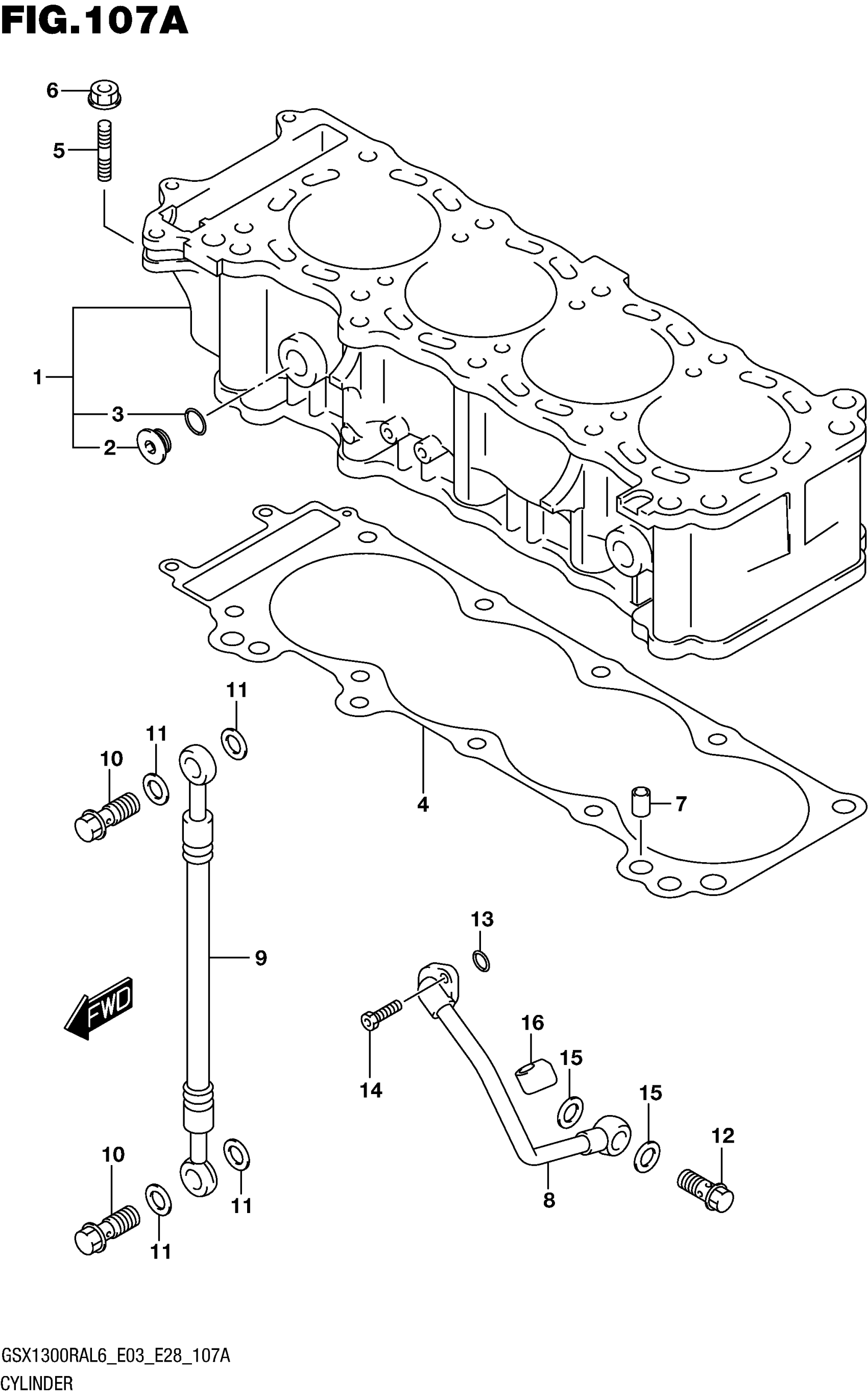

Suzuki GSX1300RAL6 (2016) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-15H00-0F0

$2,218.27

2

.PLUG, WATER JACKET

11318-35F00

$18.93

3

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.91

4

GASKET

11241-15H00

$47.33

5

STUD BOLT

01421-0625A

$2.00

6

NUT

08316-1006A

$2.19

7

PIN

04211-11169

$1.77

8

PIPE,CRANKCASE OIL

11280-24F00

$81.72

9

HOSE, OIL

11282-24F00

$74.06

10

UNION

09360-10062

$5.81

11

GASKET (10.1X16X1)

09168-10007

$1.71

12

UNION

09360-14012

$9.80

13

O RING (D:2.4,ID:11.8)

09280-12012

$4.19

14

BOLT (6X16)

09106-06073

$2.38

15

.GASKET (14X20X1.5)

09168-14015

$2.01

16

CUSHION,CRANKCASE OIL PIPE This part replaces 11283-24F00.

11283-24F01

$5.73
