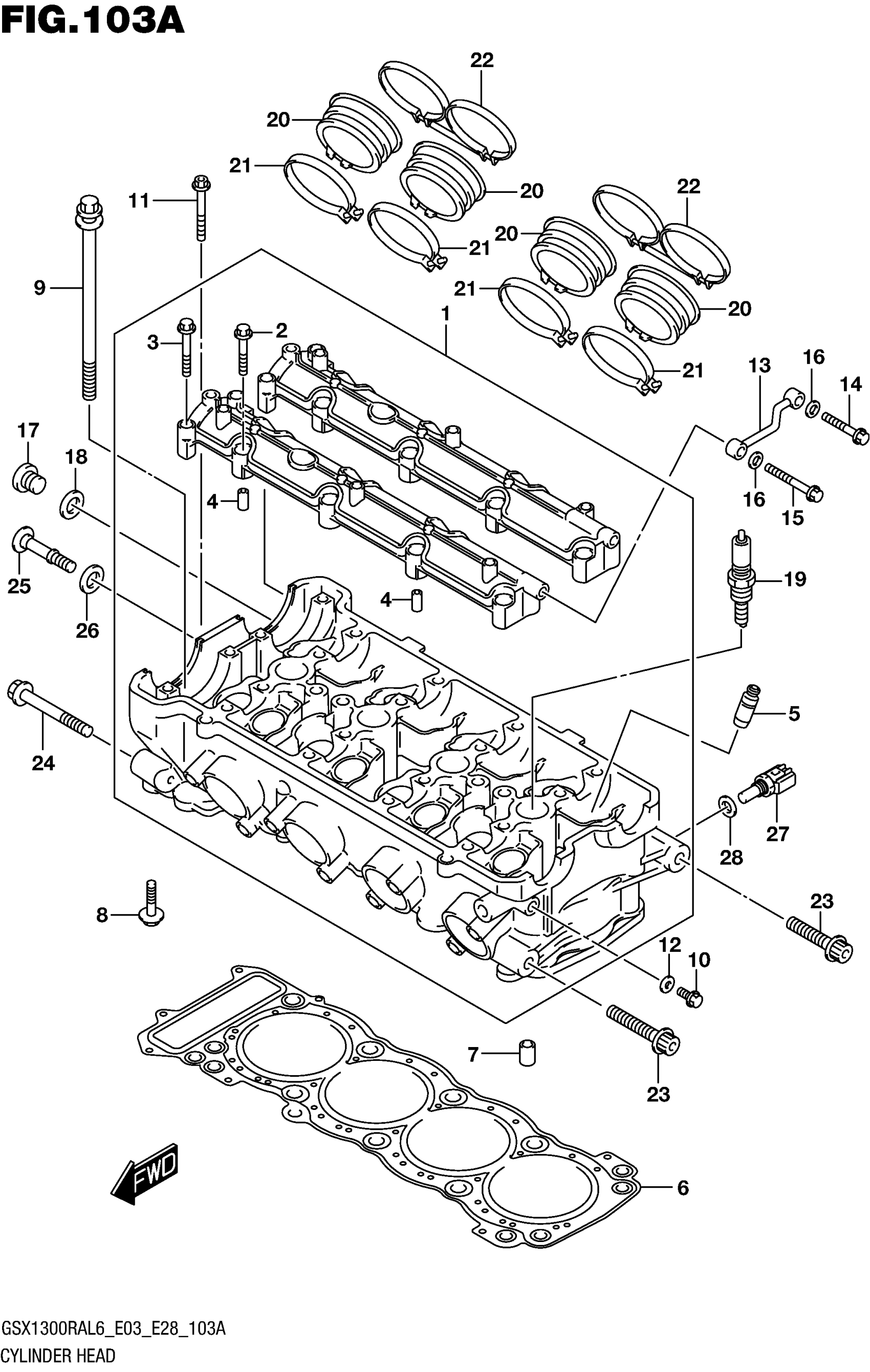

Suzuki GSX1300RAL6 (2016) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLIN This part replaces 11100-15H01.

11100-15H02

$2,223.67

2

.BOLT (6X40)

09103-06266

$2.13

3

.BOLT (6X45)

09103-06293

$2.55

4

.PIN (6.2X8X16)

09206-08007

$2.62

5

GUIDE,VALVE (OS:0.3) | OPT

11115-15H70

$46.98

6

GASKET, CYLINDER HEAD

11141-15H00

$99.21

7

PIN

04211-11169

$1.77

8

BOLT

01550-0630A

$2.31

9

BOLT,CYLINDER HEAD (L180)

11117-15H00

$16.84

10

BOLT

01550-0612A

$1.97

11

BOLT

07120-0655B

$4.45

12

GASKET (5.8X13X1.2)

09168-06023

$2.01

13

PIPE,OIL

11131-33E01

$52.72

14

BOLT

01550-0635A

$2.31

15

BOLT

01550-0645A

$2.42

16

WASHER

08322-0106A

$1.83

17

PLUG (16X8)

09248-16012

$4.19

18

GASKET (16X22X0.8)

09168-16009

$2.50

19-1

SPARK PLUG (CR9EIA-9) | NGK

09482-00558

$10.79

19-2

SPARK PLUG (IU27D) | DENSO

09482-00557

$15.20

19-3

SPARK PLUG (CR8EIA-9) | OPT

09482-00556

$9.65

19-3

PLUG,SPARK (CR8EIA-9) | NGK

09482-00556

$9.65

19-4

SPARK PLUG (CR10EIA-9) | OPT

09482-00560

$9.93

19-4

PLUG,SPARK (CR10EIA-9) | NGK

09482-00560

$9.93

19-5

SPARK PLUG (IU24D) | OPT

09482-00555

$16.44

19-5

PLUG,SPARK (IU24D) | DENSO

09482-00555

$16.44

19-6

SPARK PLUG (IU31D) | OPT

09482-00559

$21.92

19-6

PLUG,SPARK (IU31D) | DENSO

09482-00559

$21.92

20

PIPE,INTAKE This part replaces 13111-15H00.

13111-15H01

$20.30

21

..CLAMP

09402-60208

$4.62

22

CLAMP

13170-15H10

$25.51

23

BOLT (10X45)

09106-10069

$3.82

24

BOLT (10X60)

09106-10084

$7.03

25

BOLT, CYL HEAD SIDE FACE

11161-33E00

$9.32

26

WASHER

11191-13E00

$4.16

27

SENSOR, WATER TEMPERATURE

13650-49X00

$82.56

28

GASKET (12X17X1)

09168-12017

$1.97
