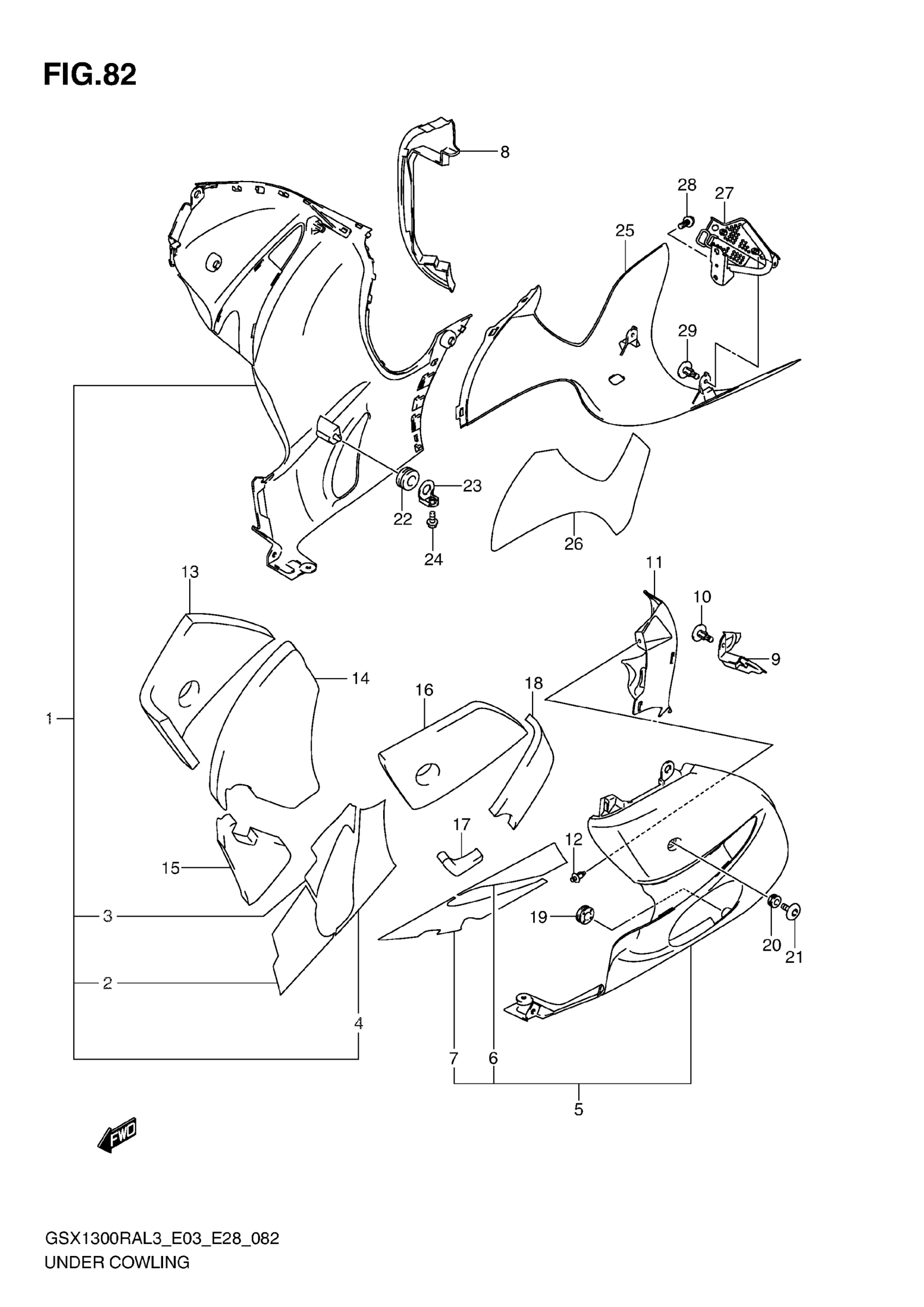

Suzuki GSX1300RAL3 (2013) UNDER COWLING Diagram

#

Description
Price

1

COWLING, UNDER RH (YELLOW) | FOR KGK

94470-15H20-YMF

$383.68

1

COWLING, UNDER RH (WHITE) | FOR AJN

94470-15H20-YWW

$387.40

1

COWLING, UNDER RH (BLACK) | FOR AJM

94470-15H20-YVB

$369.60

2

SHIELD, HEAT RH NO.1

94472-15H00

$25.95

3

SHIELD, HEAT RH NO.3

94472-15H20

$17.20

4

SHIELD, HEAT RH NO.2

94472-15H10

$25.95

5

COWLING, UNDER LH (YELLOW) | FOR KGK

94480-15H20-YMF

$376.60

5

COWLING, UNDER LH (WHITE) | FOR AJN

94480-15H20-YWW

$387.40

5

COWLING, UNDER LH (BLACK) | FOR AJM

94480-15H20-YVB

$369.60

6

SHIELD, HEAT LH NO.1

94482-15H00

$27.73

7

SHIELD, HEAT LH NO.2

94482-15H10

$18.42

8

PROTECTOR, RH

94475-15H00

$37.62

9

PROTECTOR, LH

94485-15H00

$20.65

10

CLIP, LH

94479-35F00

$5.14

11

COVER, UNDER LH

94489-15H00

$35.65

12

CLIP (BLACK) | LH

09409-06314-5PK

$2.80

13

CUSHION, UNDER COWL RH NO.1

94478-15H00

$73.63

14

CUSHION, UNDER COWL RH NO.2

94478-15H10

$60.38

15

CUSHION, UNDER COWL RH NO.3

94478-15H20

$19.56

16

CUSHION, UNDER COWL LH NO.1

94488-15H00

$56.87

17

CUSHION, UNDER COWL LH NO.2

94488-15H10

$28.07

18

CUSHION, UNDER COWL LH NO.3 This part replaces 94488-15H20.

94488-15H21

$28.18

19

CUSHION, LH

94479-15H00

$4.22

20

CUSHION

09320-09016

$1.97

21

SCREW (6X20)

09139-06190

$3.77

22

CUSHION

09320-08028

$2.80

23

PLATE, UNDER COWL

94560-15H00

$14.18

24

BOLT

01550-0612B

$2.38

25

COWLING, UNDER REAR (YELLOW) | FOR KGK

94661-15H00-YMF

$468.50

25

COWLING, UNDER REAR (WHITE) | FOR AJN

94661-15H00-YWW

$397.88

25

COWLING, UNDER REAR (BLACK) | FOR AJM

94661-15H00-YVB

$397.88

26

SHIELD, HEAT

94667-15H00

$31.98

27

BRACKET, REAR COWLING This part replaces 94540-15H00.

94540-15H01

$93.08

28

BOLT (8X16)

01550-0816A

$2.31

29

CLIP

94479-35F00

$5.14
