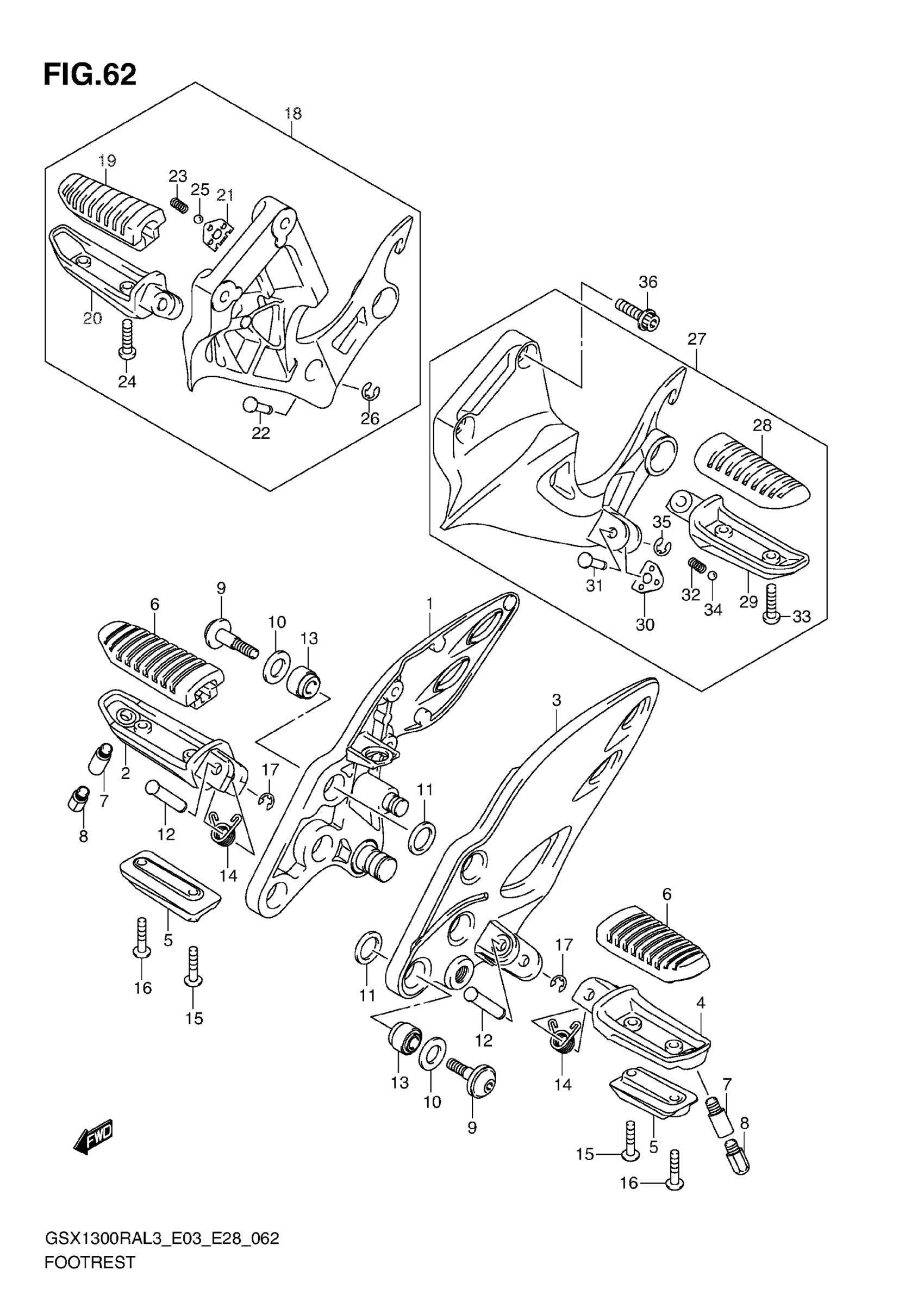

Suzuki GSX1300RAL3 (2013) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43510-15H00

$278.97

2

BAR,FR FOOTREST,R

43511-44G10

$46.44

3

BRACKET, FRONT FOOTREST LH

43521-15H00

$244.85

4

BAR,FR FOOTREST,L

43521-44G10

$45.14

5

BALANCER, FRONT FOOTREST

43536-44G00

$58.20

6

RUBBER, FOOTREST

43550-44G10

$27.96

7

SENSOR,FOOTREST

43576-15H00

$14.34

8

BOLT, BANK SENSOR

43576-15H10

$24.96

9

BOLT (8X30)

09106-08147

$5.92

10

WASHER (13.7X24X2)

09161-13004

$3.71

11

WASHER (17.2X24X2.2)

09161-17002

$5.00

12

PIN

09208-08019

$2.80

13

BUSH (8.4X20X16)

09319-08045

$18.85

14

SPRING

09448-14046

$3.89

15

SCREW

02142-0525A

$2.43

16

SCREW

02142-0530A

$2.43

17

E RING

08332-1106A

$1.46

18

FOOTREST ASSY, PILLION RH

43600-15H00

$265.18

19

RUBBER

43550-44G00

$40.13

20

BAR, PILLION FOOTREST RH

43611-44G00

$61.88

21

PLATE,PILLION FOOTREST

43816-01H10

$8.87

22

PIN

09208-08020

$3.62

23

SPRING

09440-05003

$1.48

24

SCREW

02142-0516A

$1.46

25

BALL

06111-07004

$1.25

26

E RING

08332-1106A

$1.46

27

FOOTREST ASSY, PILLION LH

43700-15H00

$265.18

28

RUBBER

43550-44G00

$40.13

29

BAR, PILLION FOOTREST LH

43621-44G00

$61.88

30

PLATE,PILLION FOOTREST

43816-01H10

$8.87

31

PIN

09208-08020

$3.62

32

SPRING

09440-05003

$1.48

33

SCREW

02142-0516A

$1.46

34

BALL

06111-07004

$1.25

35

E RING

08332-1106A

$1.46

36

BOLT (8X30)

09106-08121

$3.00
