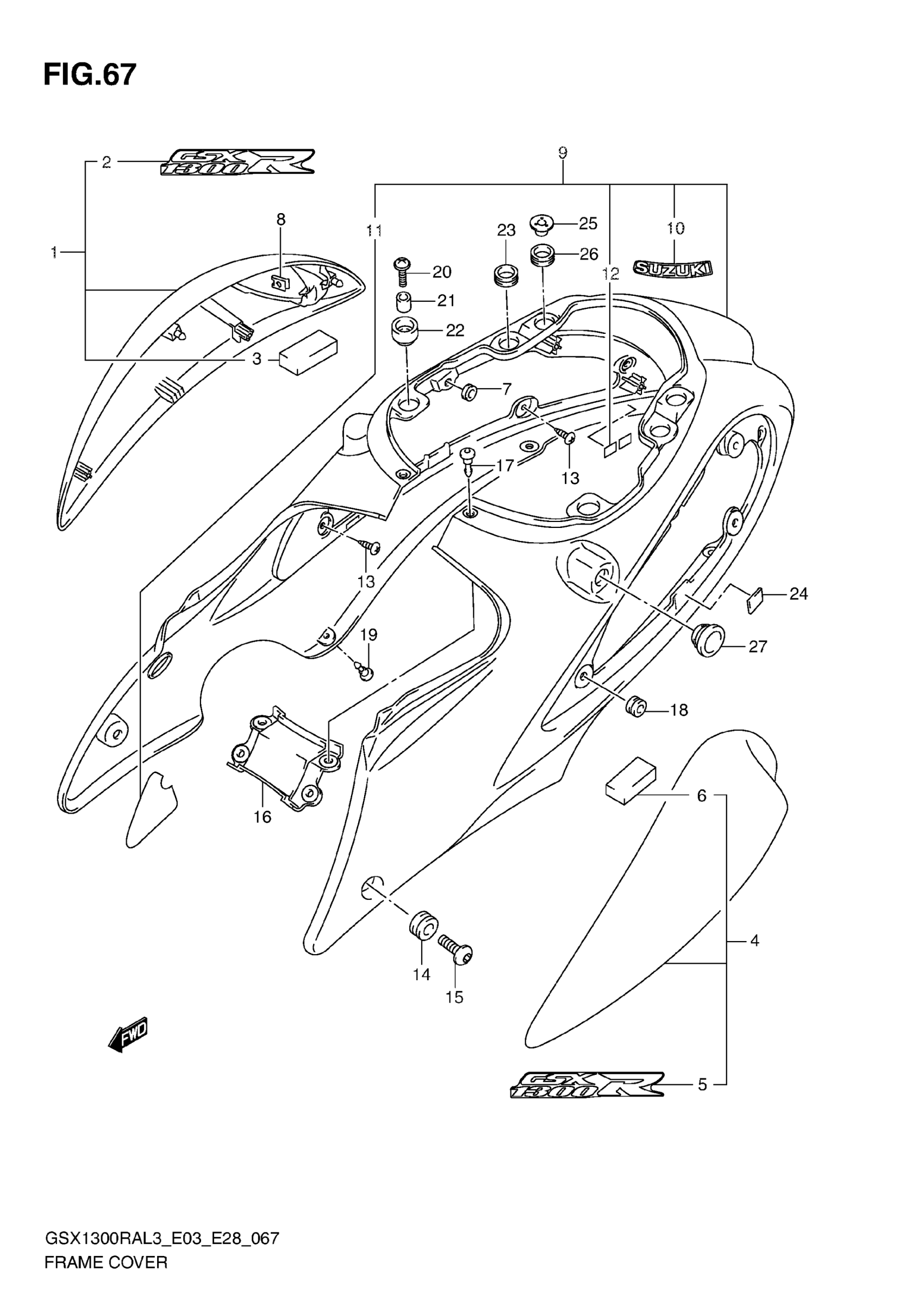

Suzuki GSX1300RAL3 (2013) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME,R | FOR KGK This part replaces 47110-15H00-YMF.

47110-15H01-YMF

$148.02

1

COVER,FRAME,R | FOR AJN This part replaces 47110-15H00-YWW.

47110-15H01-YWW

$279.13

1

COVER,FRAME,R | FOR AJM This part replaces 47110-15H00-YVB.

47110-15H01-YVB

$300.15

2

EMBLEM, FRAME COVER | FOR YMF

68131-15H00-AJW

$18.53

2

EMBLEM, FRAME COVER | FOR YWW

68131-15H00-AKC

$18.53

2

EMBLEM, FRAME COVER | FOR YVB

68131-15H00-AJY

$17.87

3

CUSHION

47511-15H00

$4.92

4

COVER,FRAME,L | FOR KGK This part replaces 47210-15H00-YMF.

47210-15H01-YMF

$269.12

4

COVER,FRAME,L | FOR AJN This part replaces 47210-15H00-YWW.

47210-15H01-YWW

$262.53

4

COVER,FRAME,L | FOR AJM This part replaces 47210-15H00-YVB.

47210-15H01-YVB

$300.15

5

EMBLEM, FRAME COVER | FOR YMF

68131-15H00-AJW

$18.53

5

EMBLEM, FRAME COVER | FOR YWW

68131-15H00-AKC

$18.53

5

EMBLEM, FRAME COVER | FOR YVB

68131-15H00-AJY

$17.87

6

CUSHION

47511-15H00

$4.92

7

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

8

NUT This part replaces 09148-04034.

09148-04015

$2.21

9

COVER,FRAME CTR | FOR KGK This part replaces 47310-15H20-YMF.

47310-15H21-YMF

$499.38

9

COVER,FRAME CTR | FOR AJN This part replaces 47310-15H20-AHX.

47310-15H21-AHX

$499.38

9

COVER,FRAME CTR | FOR AJM This part replaces 47310-15H20-YVB.

47310-15H21-YVB

$463.27

10

EMBLEM,"SUZUKI" | FOR YMF,AHX This part replaces 68641-19F00-17U.

68641-19F01-17U

$10.03

10

.EMBLEM,"SUZUKI" (BLACK) | FOR YVB This part replaces 68281-24F10-019.

68281-24F11-019

$10.25

11

TAPE, CENTER

47312-15H00

$20.87

12

CUSHION

45516-01H00

$6.00

13

SCREW (5X15)

09136-05062

$2.19

14

CUSHION

09320-09016

$1.97

15

SCREW (6X20)

09139-06190

$3.77

16

LID, CENTER (YELLOW) | FOR KGK

47411-15H00-YMF

$67.88

16

LID, CENTER (WHITE) | FOR AJN

47411-15H00-YWW

Unavailable

16

LID, CENTER (BLACK) | FOR AJM

47411-15H00-YVB

Unavailable

17

CLIP (BLACK)

09409-06314-5PK

$2.80

18

CUSHION

09320-09016

$1.97

19

CLIP

09409-06329

$2.80

20

SCREW (6X20)

09136-06105

$1.99

21

SPACER (6.5X10X11)

09180-06288

$2.04

22

CUSHION,FRAME COVER UP This part replaces 47115-16G00.

47115-16G01

$3.17

23

CUSHION, UPPER CENTER

47191-24F00

$4.86

24

CUSHION, LOWER

33651-37000

$4.09

25

WASHER,FRAME COVER

47190-24F21

$9.36

26

CUSHION, UPPER REAR

47191-24F30

$7.12

27

SPACER, SIDE CENTER

47191-24F20

$6.61
