Description

Price

1

FRAME (BLACK)

41100-15H10-YAP

Unavailable

2

RAIL, SEAT This part replaces 41200-15H10.

41200-15H13

$1,055.60

3

BOLT (10X30)

09103-10296

$6.28

4

HOOK, SEAT RAIL

46315-24F01

$53.05

5

CAP (OD:10)

09250-05009

$2.17

6

SPACER, ENGINE MOUNT

41911-33E10

$29.57

7

BOLT (8X30)

09106-08105

$4.12

8

BOLT,CRANK CASE ADJUST This part replaces 41921-15H00.

41921-15H20

$61.72

9

BOLT,CRANK CASE ADJUST This part replaces 41921-15H10.

41921-15H30

Unavailable

10

NUT,CRANK CASE ADJUST This part replaces 41922-19F11.

41922-19F12

$33.57

11

NUT,CRANK CASE ADJUST

41922-33E30

$24.80

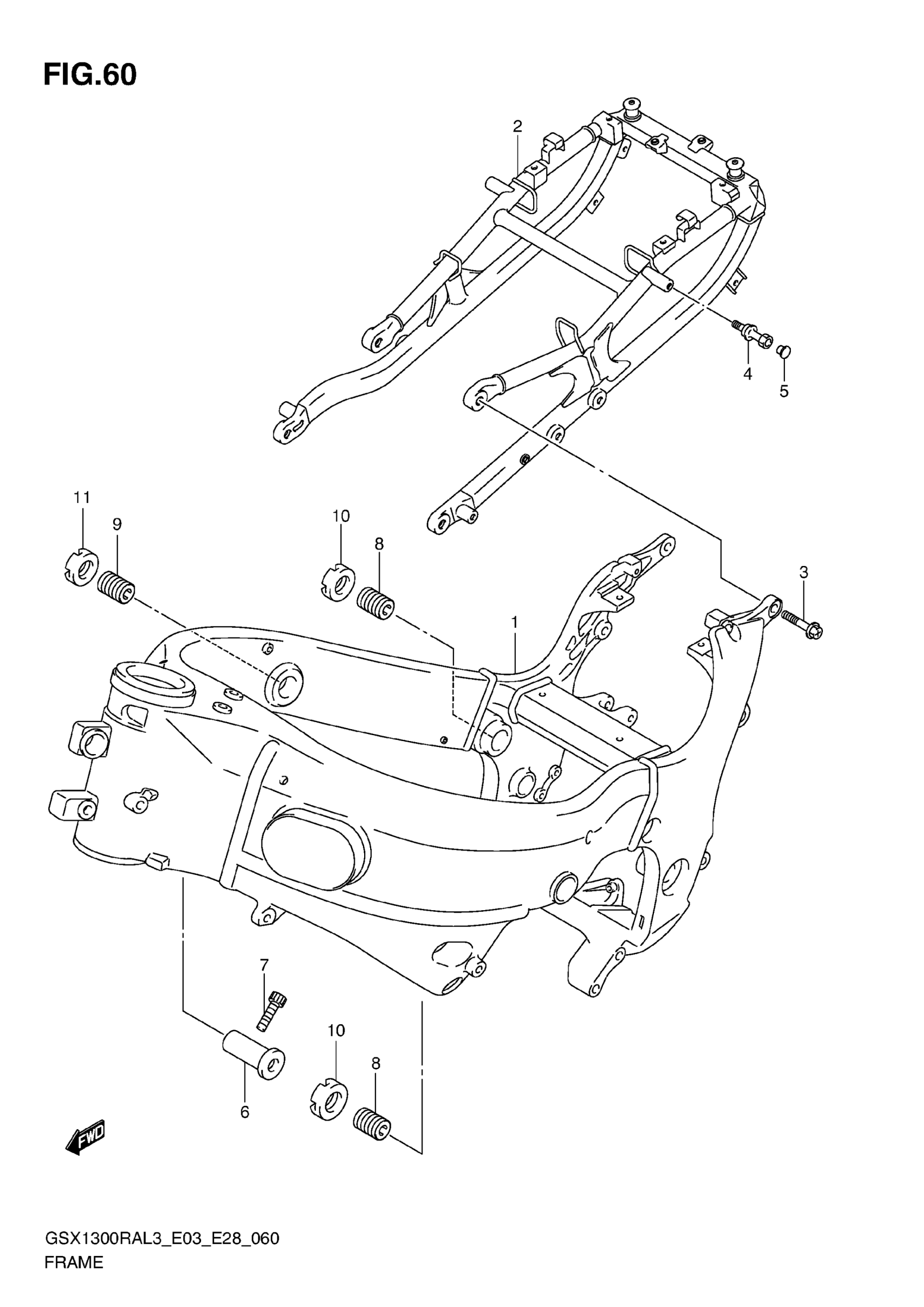

Suzuki GSX1300RAL3 (2013) FRAME Diagram
