2007 Suzuki GSX1300R Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 2007 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

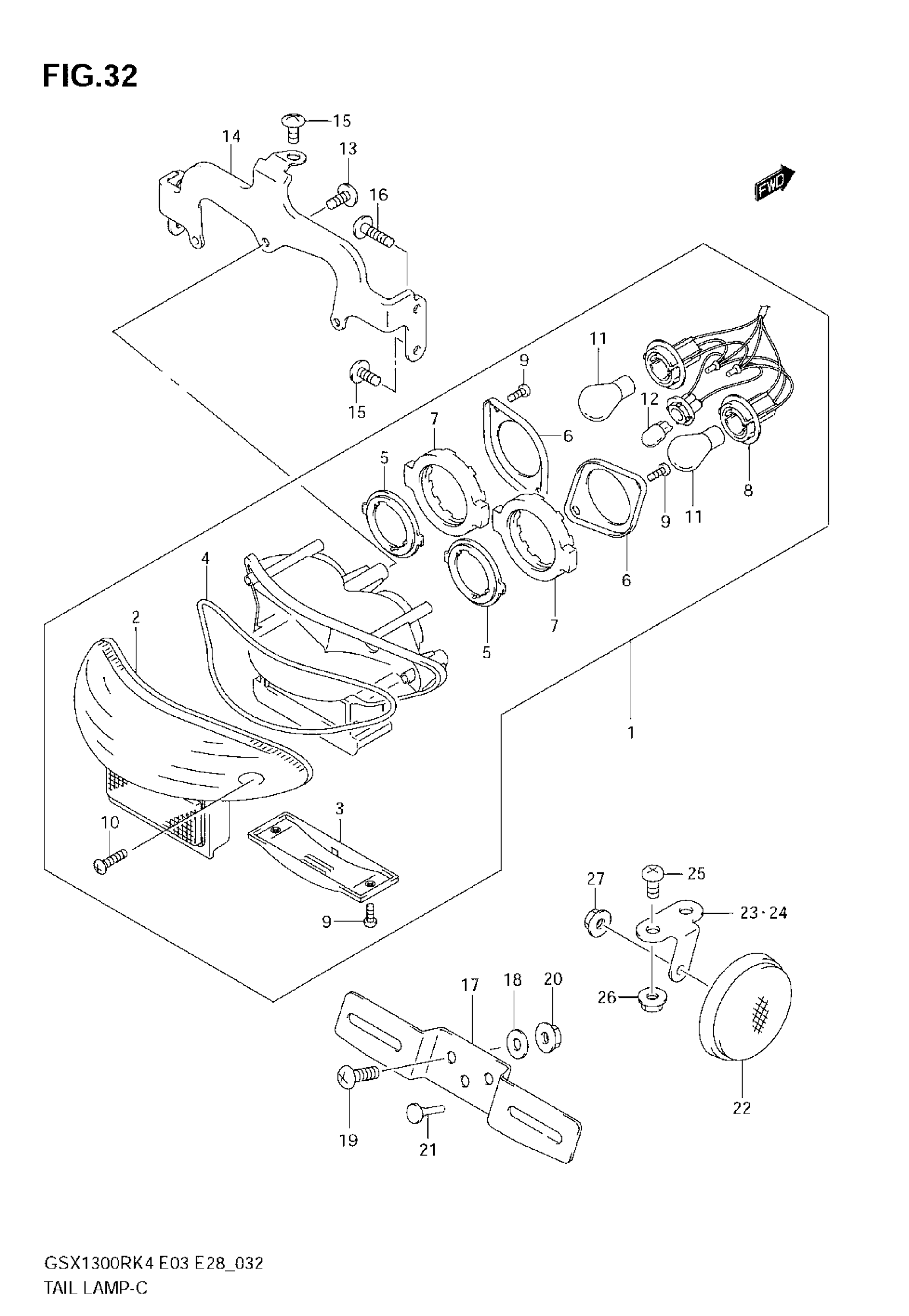

2007 Suzuki GSX1300R Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 12

35710-24F30

1
Out of stock

2

LENS

35712-24F30

1
Out of stock

3

LENS, LICENSE

35912-24F00

1
Out of stock

4

GASKET

35713-24F00

1
Out of stock

5

PLATE NO.1

35716-48B21

2
Out of stock

6

PLATE NO.2

35736-48B21

2
Out of stock

7

CUSHION

35765-48B21

2
Out of stock

8

SOCKET & CORD

35718-24F00

1
Out of stock

9

SCREW This part replaces 03211-04123.

03211-0412A

6
Out of stock

10

SCREW

03211-04207

2
Out of stock

11

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

2
Out of stock

12

.BULB (12V5W)

09471-12216

1
Out of stock

13

SCREW, REAR COMB

03541-0516B

3
Out of stock

14

BRACKET, REAR COMB

35726-24F00

1
Out of stock

15

SCREW, BRACKET

03541-0516B

3
Out of stock

16

SCREW, BRACKET

03541-0525B

2
Out of stock

17

BRACKET, LICENSE PLATE

35927-24F00

1
Out of stock

18

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

19

SCREW

02142-0616B

2
Out of stock

20

NUT

08316-1006B

2
Out of stock

21

CUSHION

09321-06026

1
Out of stock

22

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

23

BRACKET, REAR RH

35975-24F01

1
Out of stock

24

BRACKET, REAR LH

35976-24F01

1
Out of stock

25

SCREW

02112-0612B

4
Out of stock

26

NUT

08316-1006B

4
Out of stock

27

NUT

08316-1005B

2
Out of stock
