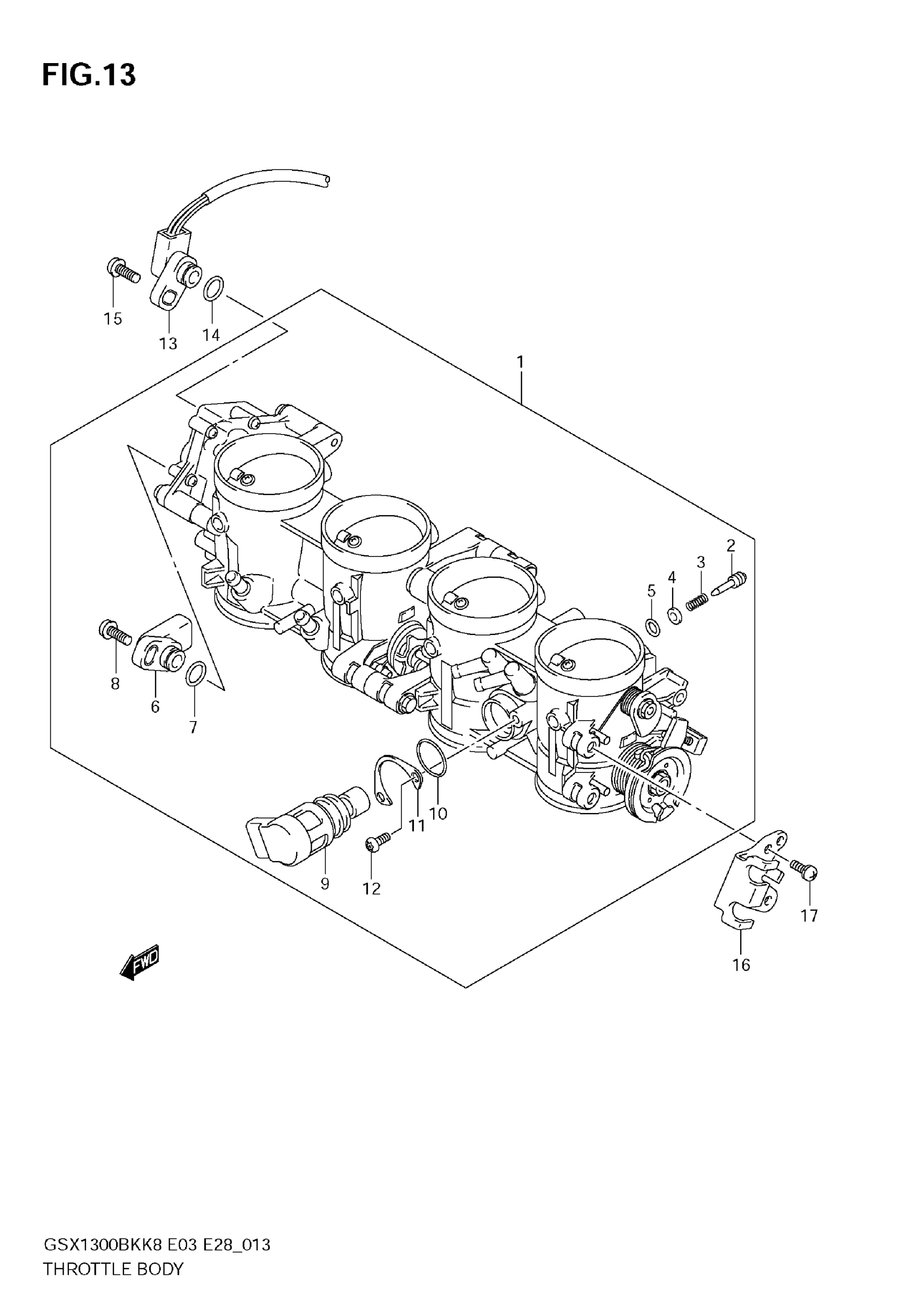

Suzuki GSX1300BK (2009) THROTTLE BODY Diagram

#

Description
Price

1

THROTTLE BODY | E3,E28

13406-23H00

Unavailable

1

THROTTLE BODY | E33; Includes Item(s) 2 - 12

13406-23H10

Unavailable

2

SCREW, AIR ADJUST

13269-18G00

$13.35

3

SPRING, AIR SCREW

13271-43E00

Unavailable

4

WASHER

13291-26E00

$2.80

5

O RING

13295-26E00

$3.97

6

SENSOR ASSY, MAIN

13580-18G00

$191.97

7

O RING

13575-40F00

$3.85

8

SCREW

13605-40F00

$3.50

9

.VALVE ASSY, ISC This part replaces 18117-15H10.

18117-15H12

$403.72

10

O RING

18119-05H00

$4.47

11

PLATE, STAY

13428-15H00

Unavailable

12

SCREW

13605-15H00

$8.03

13

SENSOR ASSY, THROTTLE SUB This part replaces 13580-40F30.

13580-40F31

$197.79

14

O RING

13575-40F00

$3.85

15

SCREW

13605-40F00

$3.50

16

PLATE, STAY

13565-21H00

Unavailable

17

SCREW

13601-21H00

Unavailable
