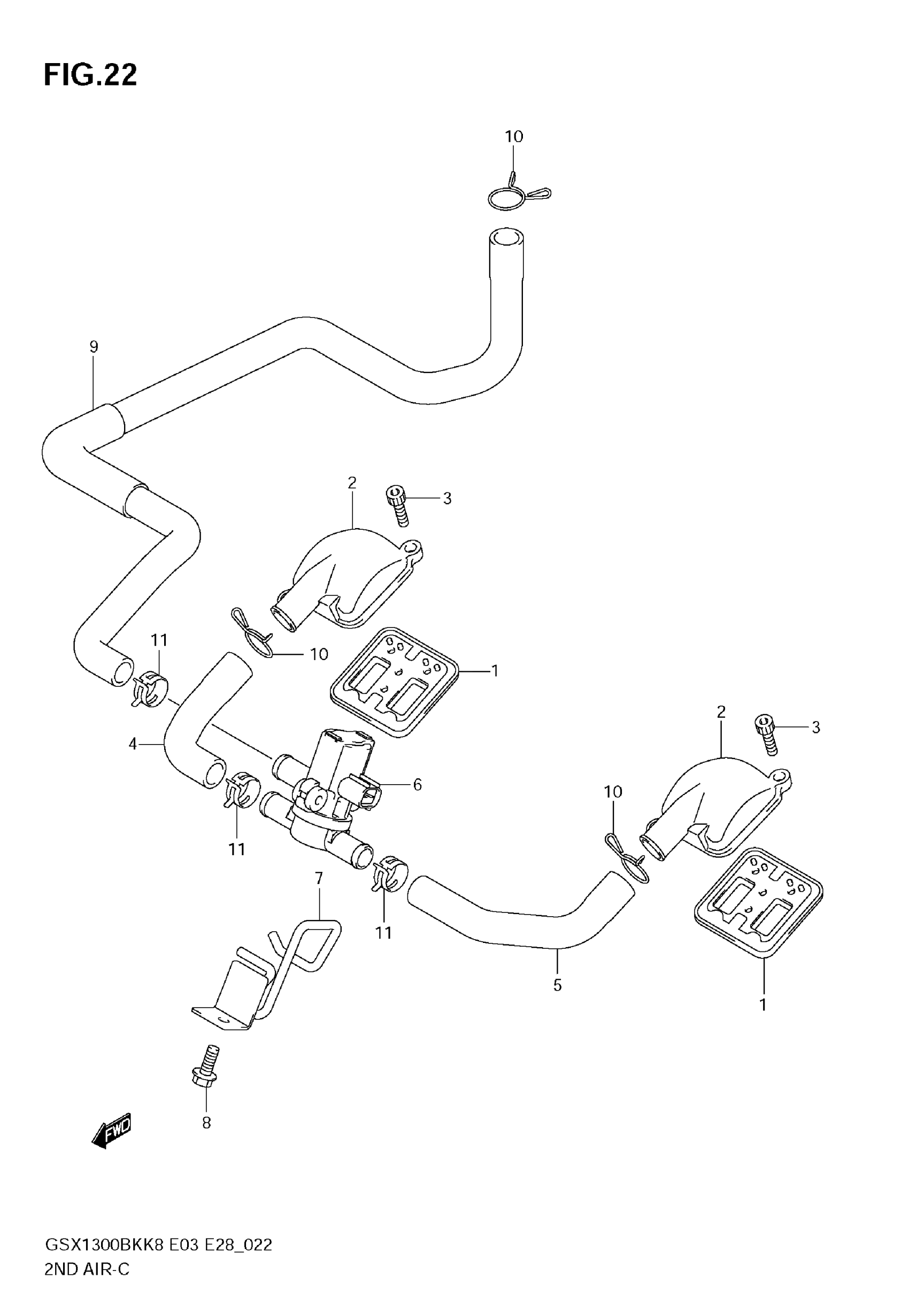

Suzuki GSX1300BK (2009) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY, 2ND AIR REED

18450-35F30

$111.91

2

COVER

18531-15H00

Unavailable

3

BOLT (6X16)

09106-06073

$2.38

4

HOSE, 2ND AIR VALVE RH

18461-23H00

Unavailable

5

HOSE, 2ND AIR VALVE LH

18471-23H00

Unavailable

6

VALVE ASSY,AIR CUT This part replaces 18510-29G30.

18510-29G31

$144.57

7

BRACKET

18610-23H00

Unavailable

8

BOLT (6X16)

09103-06283

$2.80

9

HOSE, 2ND AIR CLEANER

18711-23H00

Unavailable

10

CLIP

09401-17201

$3.42

11

CLIP

09401-17401

$1.01
