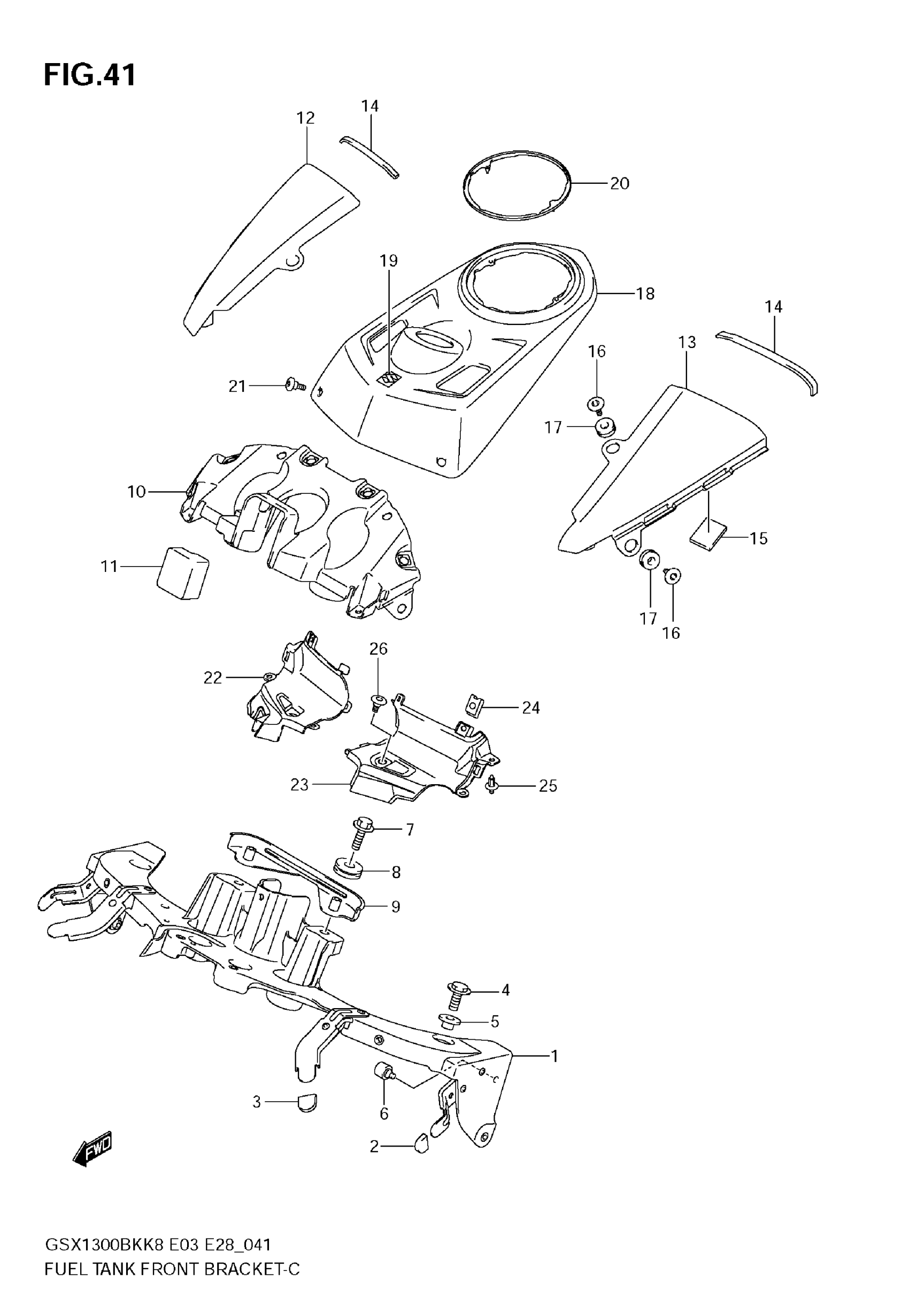

Suzuki GSX1300BK (2009) FUEL TANK FRONT BRACKET Diagram

#

Description
Price

1

BRACKET,FUEL TA This part replaces 44160-23H00.

44160-23H01

$364.37

2

CUSHION, SIDE

09329-18001

$1.89

3

CUSHION,TANK CO This part replaces 44169-23H00.

44169-23H01

$8.87

4

BOLT

01550-0620B

$2.38

5

WASHER

09169-06081

$4.70

6

CUSHION, SIDE

44163-23H00

Unavailable

7

BOLT, FRONT

09116-06195

$4.02

8

CUSHION

44511-10G10

Unavailable

9

WASHER

44510-23H00

Unavailable

10

BRACKET, FUEL TANK FRONT

44520-23H00

Unavailable

11

CUSHION, FRONT

44543-23H00

Unavailable

12

COVER, TANK UPPER RH (BLACK) | FOR CRU

44251-23H00-019

Unavailable

12

COVER, TANK UPPER RH (GRAY) | FOR ETT

44251-23H00-YHF

Unavailable

12

COVER, TANK UPPER RH (WHITE) | FOR YPA

44251-23H00-YPA

Unavailable

13

COVER, TANK UPPER LH (BLACK) | FOR CRU

44261-23H00-019

$257.65

13

COVER, TANK UPPER LH (GRAY) | FOR ETT

44261-23H00-YHF

Unavailable

13

COVER, TANK UPPER LH (WHITE) | FOR YPA

44261-23H00-YPA

Unavailable

14

CUSHION

44278-23H00

Unavailable

15

FASTENER

44572-13G00

$10.13

16

SCREW

09139-05078

$3.19

17

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

18

COVER, TANK UPPER

44191-23H00

Unavailable

19

EMBLEM

68281-35F00

$15.48

20

RUBBER, UPPER COVER

44295-23H00

$17.78

21

SCREW

09139-05064

$2.56

22

COVER, UPPER RH | WITHOUT ABS

44291-23H00

$79.40

22

COVER, UPPER RH | WITH ABS

44291-23H10

Unavailable

23

COVER, UPPER LH

44292-23H00

$56.03

24

NUT

09148-05052

$3.04

25

CLIP

09409-06329

$2.80

26

SCREW

09139-05074

$2.58
