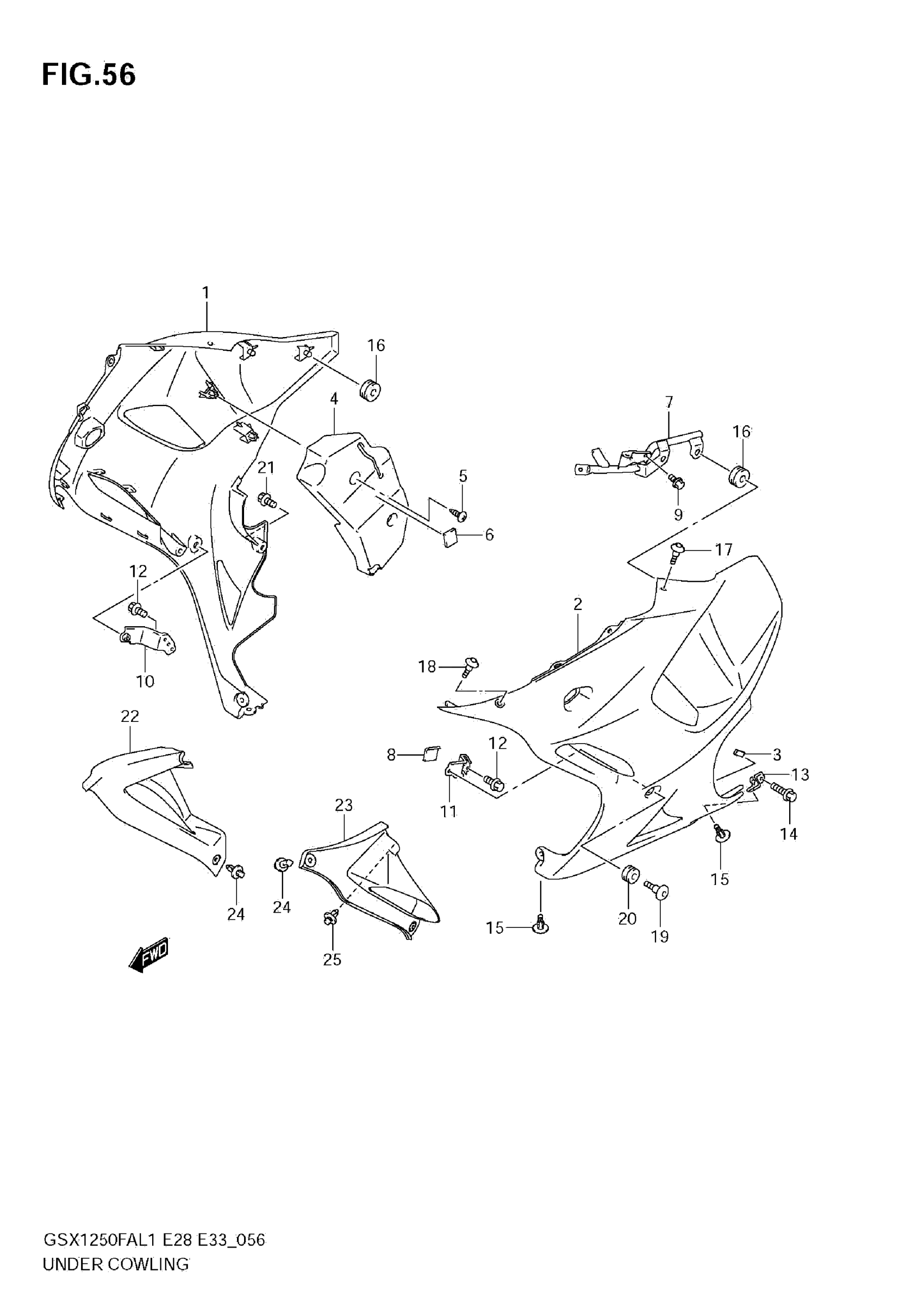

Find the part on the Under Cowling diagram for your 2011 Suzuki GSX1250FAL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX1250FAL1 Under Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING, UNDER RH (BLACK)

94471-18H00-YAY

1
Out of stock

2

COWLING, UNDER LH (BLACK)

94481-18H00-YAY

1
Out of stock

3

CUSHION (10X30X6)

33652-47F00

2
Out of stock

4

PROTECTOR, RH

94477-18H00

1
Out of stock

5

SCREW

03541-0512B

2
Out of stock

6

CUSHION

94478-17H00

2
Out of stock

7

BRACKET, UNDER COWL LH

94540-17H10

1
Out of stock

8

PROTECTOR, COWLING UNDER

94474-17H00

3
Out of stock

9

BOLT | LH

01550-0612B

1
Out of stock

10

BRACKET, CENTER RH

94550-17H00

1
Out of stock

11

BRACKET, CENTER LH

94560-17H00

1
Out of stock

12

BOLT

01550-0610A

2
Out of stock

13

BRACKET, REAR LH

94580-17H01

1
Out of stock

14

BOLT | LH

09116-06150

1
Out of stock

15

CLIP

94479-35F00

3
Out of stock

16

CUSHION

09320-08028

4
Out of stock

17

SCREW (5X16)

09139-05077

2
Out of stock

18

SCREW (5X13)

09139-05064

2
Out of stock

19

SCREW (6X20)

09139-06126

2
Out of stock

20

CUSHION

09320-09016

2
Out of stock

21

SCREW (6X12)

09139-06144

1
Out of stock

22

COWLING, UNDER INNER RH

94461-18H00

1
Out of stock

23

COWLING, UNDER INNER LH

94462-18H00

1
Out of stock

24

CLIP

09409-06329

5
Out of stock

25

CLIP | LH

09409-06317

1
Out of stock
