2011 Suzuki GSX1250FAL1 Manual BOX Diagram

← All diagrams

Find the part on the Manual BOX diagram for your 2011 Suzuki GSX1250FAL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

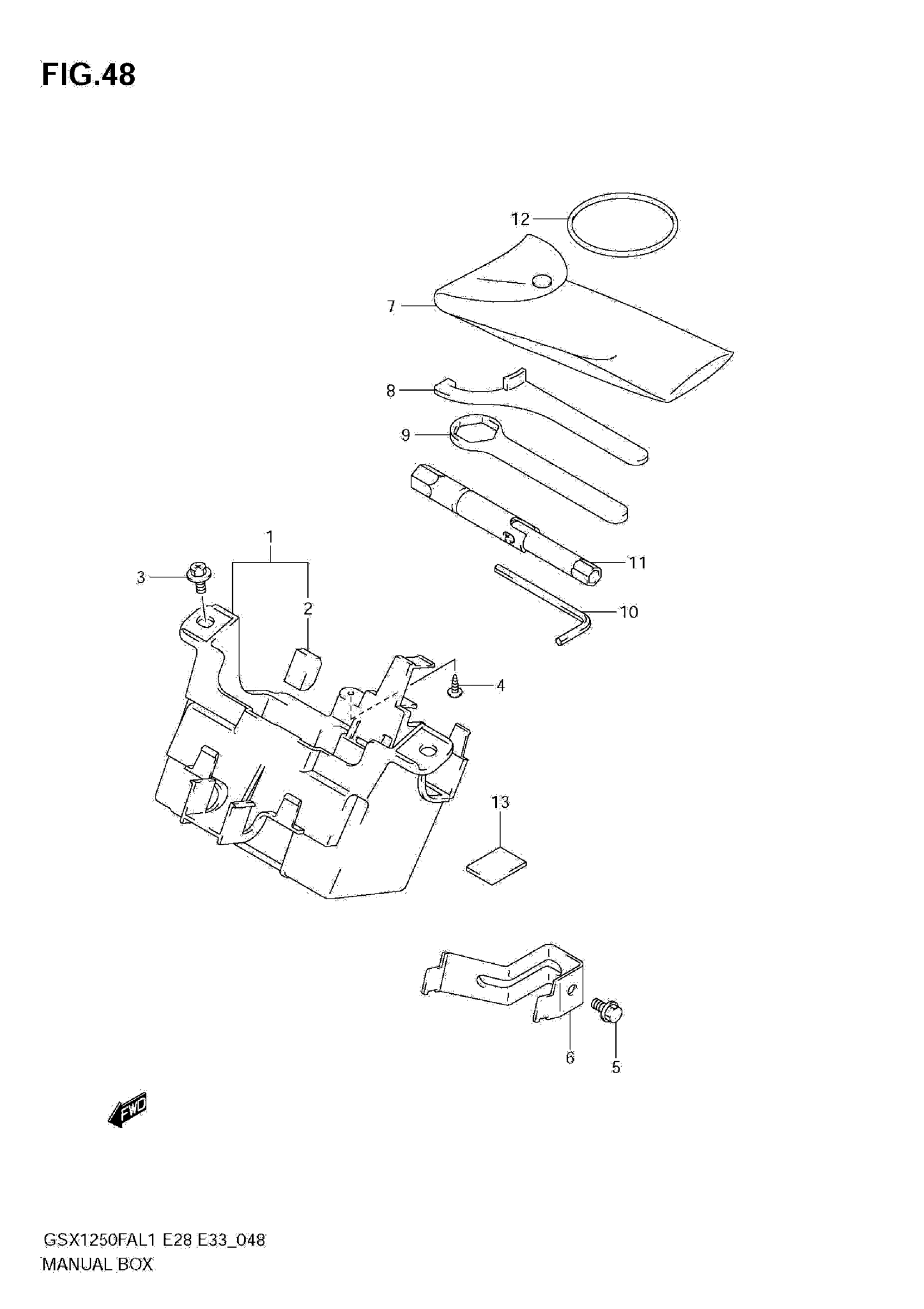

2011 Suzuki GSX1250FAL1 Manual BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, BATTERY

47430-18H02

1
Out of stock

2

CUSHION

94423-10G11

1
Out of stock

3

BOLT

09111-06107

2
Out of stock

4

SCREW (5X16)

09132-05053

2
Out of stock

5

BOLT

01550-0612A

1
Out of stock

6

PLATE, FUSE BOX

47410-38G01

1
Out of stock

7

TOOL ASSY This part replaces 09800-21055.

09800-21102

1
Out of stock

8

CLAMP

09822-00005

1
Out of stock

9

RING, SPANNER

09817-00034

1
Out of stock

10

SPANNER, HEXAGON 5

09816-00059

1
Out of stock

11

SPANNER (16)

09816-00149

1
Out of stock

12

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

1
Out of stock

13

CUSHION, TOOL BAG

33652-36000

2

$2.87

In stock
