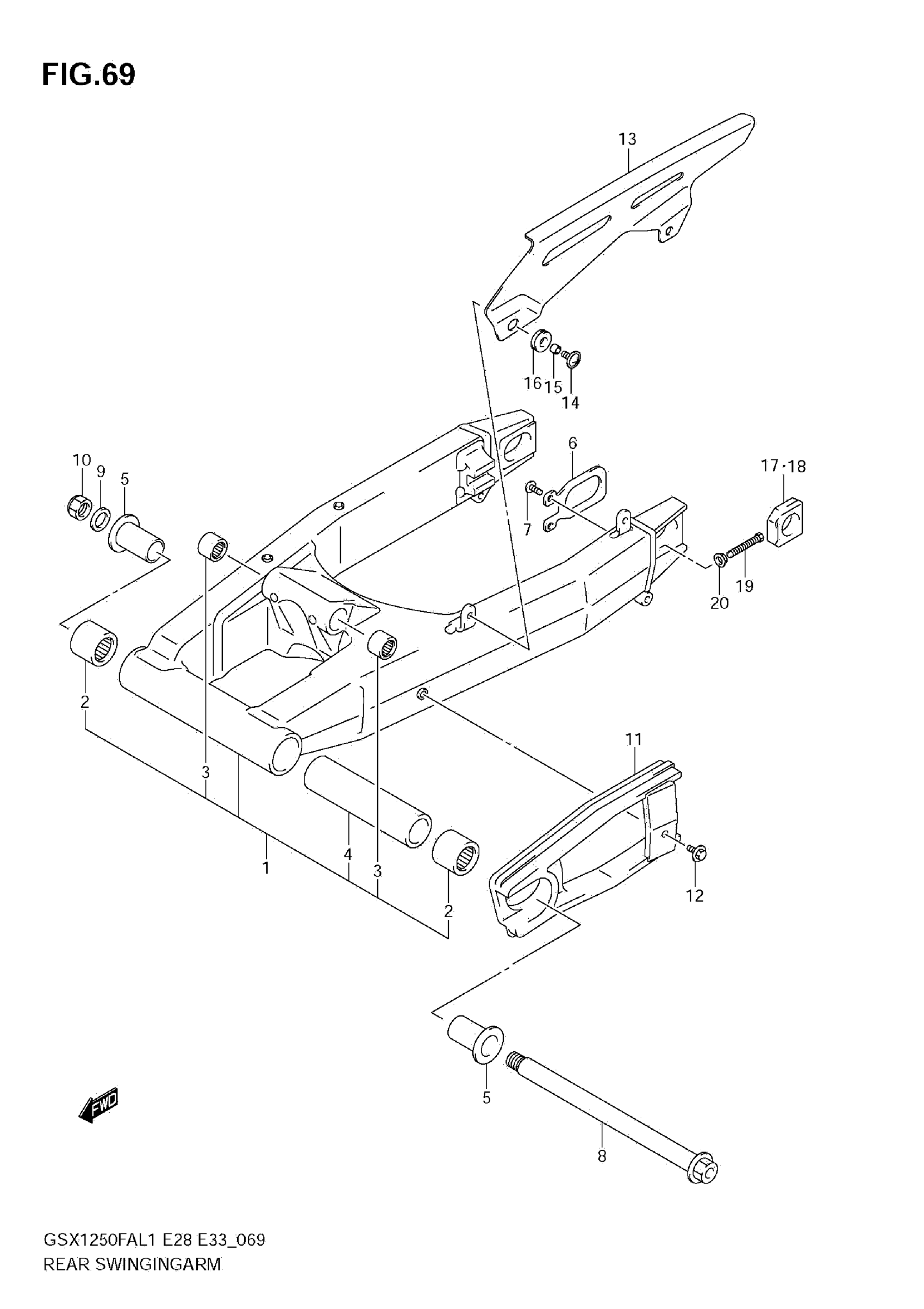

Suzuki GSX1250FAL1 (2011) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (BLACK)

61000-49G10-YAP

Unavailable

2

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$28.89

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$20.23

4

SPACER

61282-31E00

Unavailable

5

SPACER,PIVOT BEARING

61251-31E00

$66.87

6

PLATE, RR SWGARM BRACKET

61124-33E00

$6.56

7

SCREW

02142-0616B

$1.86

8

SHAFT, PIVOT

61211-31E00

$144.57

9

WASHER (18.5X28X2.6)

09160-18030

$2.67

10

NUT

09159-18007

$21.28

11

BUFFER, CHAIN TOUCH DEFENSE

61273-49G10

Unavailable

12

BOLT (6X17.8)

09111-06072

$2.10

13

CASE, CHAIN

61311-27E20

$298.40

14

SCREW (6X16)

09136-06017

$2.39

15

SPACER (6.2X8.3X6.1)

09180-06092

$3.72

16

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.98

17

ADJUSTER, CHAIN, R This part replaces 61445-40F20.

61445-40F00

$45.14

18

ADJUSTER, CHAIN, L This part replaces 61446-40F10.

61446-40F00

$45.14

19

BOLT (8X50)

09100-08287

$2.88

20

NUT

08316-1008A

$2.56
