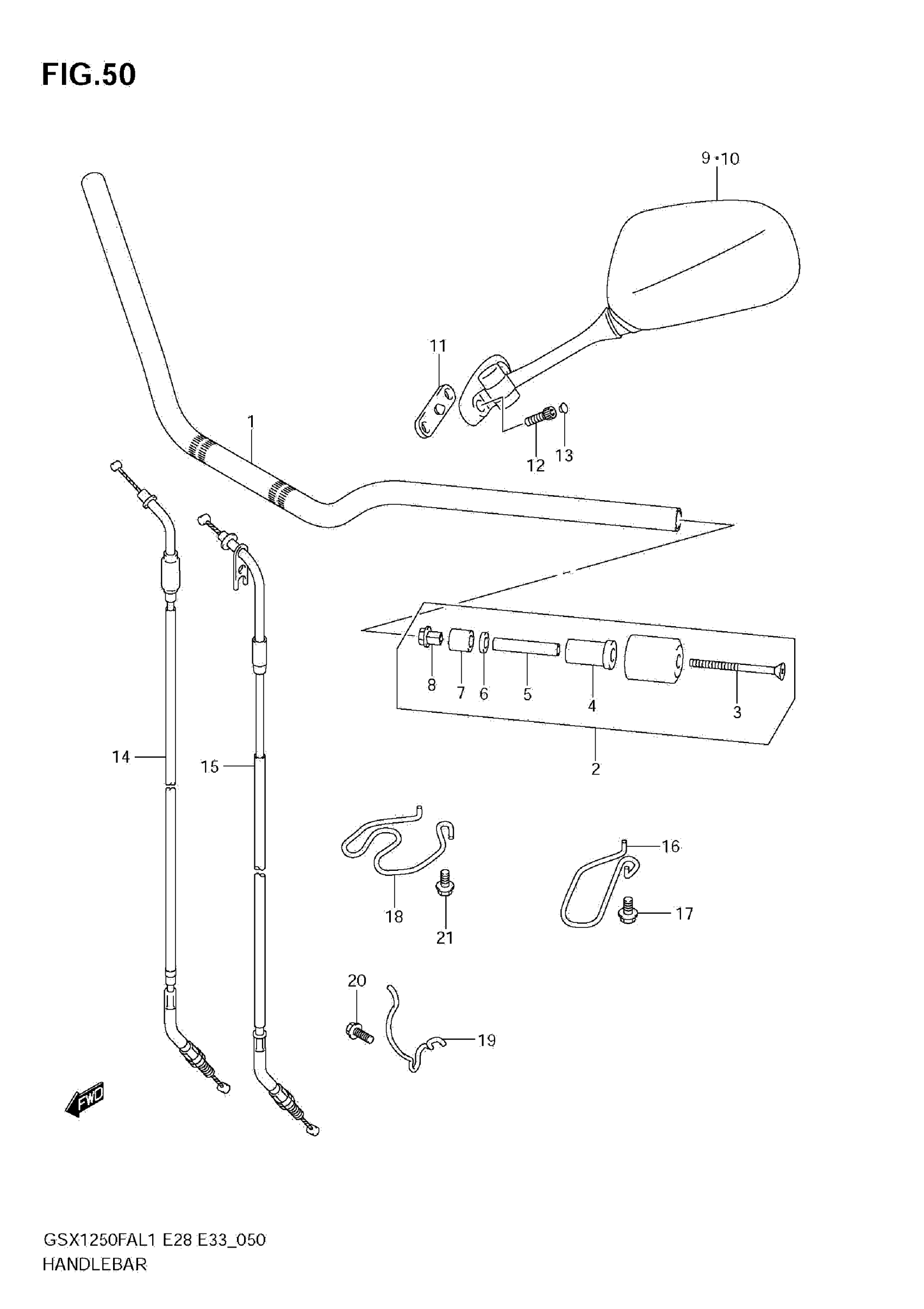

Suzuki GSX1250FAL1 (2011) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-49G00

$227.53

2

BALANCER SET,HA This part replaces 56200-38822.

56200-38824

$50.03

3

SCREW (6X110)

09127-06018

$3.21

4

EXPANDER, OUTER

56272-19D00

Unavailable

5

SPACER

56276-17D00

$5.00

6

WASHER (6.5X16X4)

09160-06131

$2.62

7

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.64

8

NUT

56273-10G10

$8.27

9

MIRROR,REAR RH This part replaces 56500-18H00.

56500-18H01

$142.02

10

MIRROR,REAR LH This part replaces 56600-18H00.

56600-18H01

$136.83

11

CUSHION

94576-24F00

$6.41

12

BOLT

07130-0616B

$2.44

13

CAP (OD:10)

09250-05009

$2.17

14

CABLE ASSY,THRO This part replaces 58300-18H60.

58300-18H61

$58.95

15

CABLE ASSY, THROTTLE NO.2

58300-18H30

$82.18

16

GUIDE, THROTTLE CABLE

58631-38G00

Unavailable

17

SCREW (5X10)

09125-05042

$2.04

18

GUIDE, THROTTLE CABLE

58621-18H00

Unavailable

19

GUIDE, CABLE

58622-38G00

Unavailable

20

BOLT

01550-0620A

$2.01

21

BOLT

01550-0612A

$2.01
