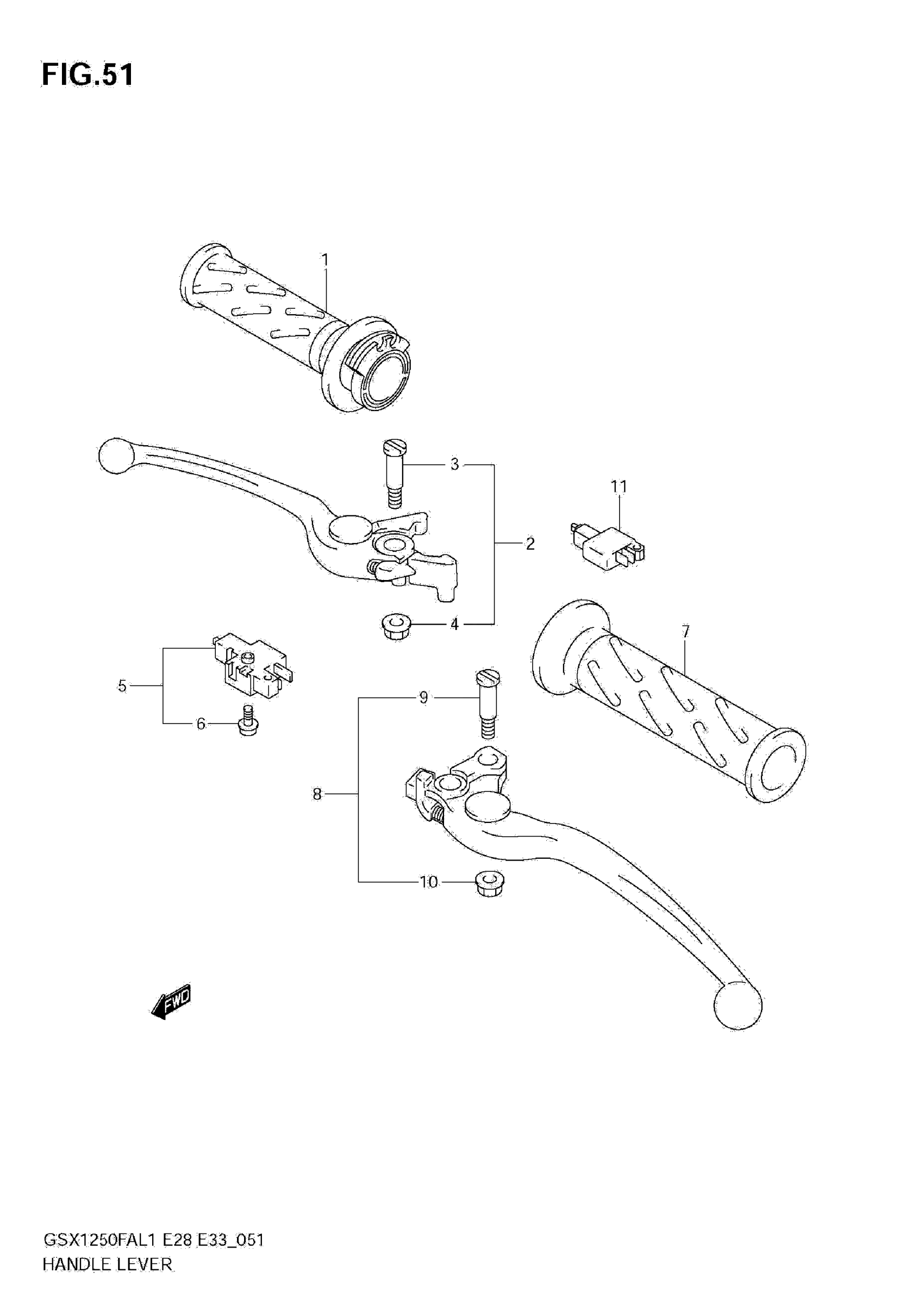

Suzuki GSX1250FAL1 (2011) HANDLE LEVER Diagram

#

Description

Price

1

GRIP, THROTTLE (BLACK) This part replaces 57110-29G01-291.

57110-29G02-291

$28.62

2

LEVER ASSY, FRONT BRAKE This part replaces 57300-10G31.

57300-10G32

$40.42

3

.BOLT, PIVOT This part replaces 57431-17H01.

57431-17H02

$7.02

4

NUT

08319-2106A

$1.97

5

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

$36.79

6

SCREW

57465-17C00

$2.37

7

GRIP, LH (BLACK) This part replaces 57211-22D01-291.

57211-22D02-291

$13.93

8

LEVER ASSY,CLUTCH This part replaces 57500-24F21.

57500-24F22

$54.00

9

.BOLT, PIVOT This part replaces 57431-17H01.

57431-17H02

$7.02

10

NUT

08316-1606B

$3.27

11

SWITCH ASSY,CLUTCH

57560-02FA0

$22.55
