2011 Suzuki GSX1250FAL1 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2011 Suzuki GSX1250FAL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

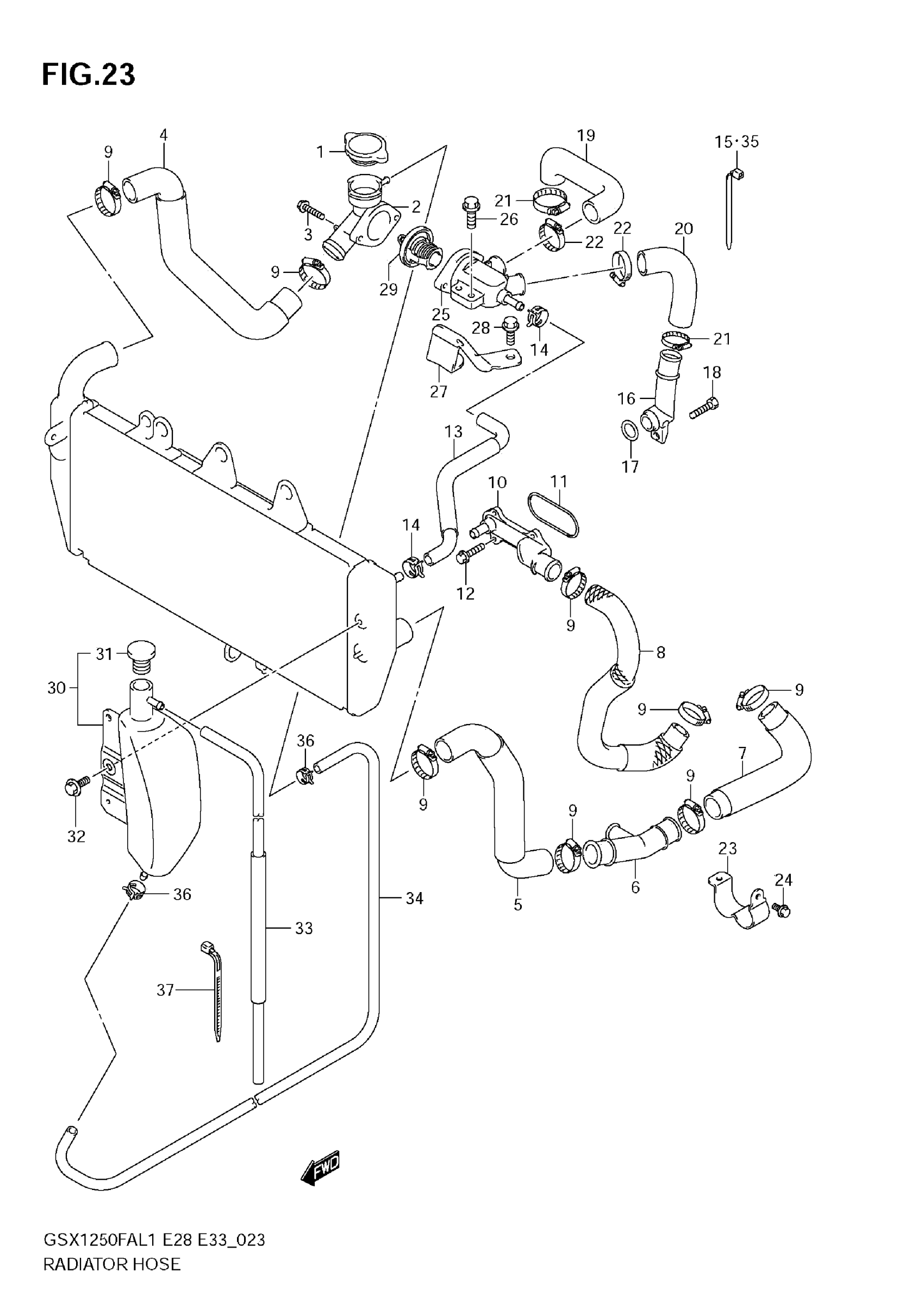

2011 Suzuki GSX1250FAL1 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR

17730-14G00

1
Out of stock

2

CONDUCTION

17791-18H00

1
Out of stock

3

BOLT

01550-0620A

2
Out of stock

4

HOSE, RADIATOR INLET

17851-18H10

1
Out of stock

5

HOSE, RADIATOR OUTLET

17852-18H10

1
Out of stock

6

PIPE, RADIATOR OUTLET

17890-18H00

1
Out of stock

7

HOSE, WATER PUMP INLET

17853-18H00

1
Out of stock

8

HOSE, WATER PUMP OUTLET

17854-18H00

1
Out of stock

9

CLAMP

09402-38512

8
Out of stock

10

CONNECTOR, CYLINDER INLET

17861-18H00

1
Out of stock

11

O RING

17863-18H00

1
Out of stock

12

BOLT

01547-0620A

4
Out of stock

13

HOSE, WATER BYPASS

17856-18H10

1
Out of stock

14

CLIP This part replaces 09401-12409.

09401-12414

2
Out of stock

15

CLAMP (L:165)

09407-18402

1
Out of stock

16

PIPE, CYLINDER OUTLET

17880-18H00

2
Out of stock

17

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

2
Out of stock

18

BOLT

07130-0612A

2
Out of stock

19

HOSE, CYLINDER OUTLET RH

17857-18H00

1
Out of stock

20

HOSE, CYLINDER OUTLET LH

17858-18H00

1
Out of stock

21

CLAMP

09402-28513

2
Out of stock

22

CLAMP

09402-32512

2
Out of stock

23

PLATE, WATER HOSE CLAMP

17859-18H00

1
Out of stock

24

BOLT

01547-0612A

2
Out of stock

25

CONNECTOR

17662-18H00

1
Out of stock

26

BOLT

01550-0620A

2
Out of stock

27

BRACKET

17669-18H00

1
Out of stock

28

BOLT

01550-0612B

2
Out of stock

29

THERMOSTAT,WTR (82<-C)

17670-76G00

1
Out of stock

30

TANK ASSY, RESERVOIR

17910-18H10

1
Out of stock

31

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

32

BOLT (6X12)

09111-06085

1
Out of stock

33

HOSE, OVERFLOW

17982-18H10

1
Out of stock

34

HOSE (5X9X2000) | L:2000>800

09352-50901-00B

1
Out of stock

35

CLAMP (L:165)

09407-18402

2
Out of stock

36

CLIP

09401-08411

2
Out of stock

37

CLAMP (L:235)

09407-25401

1
Out of stock
