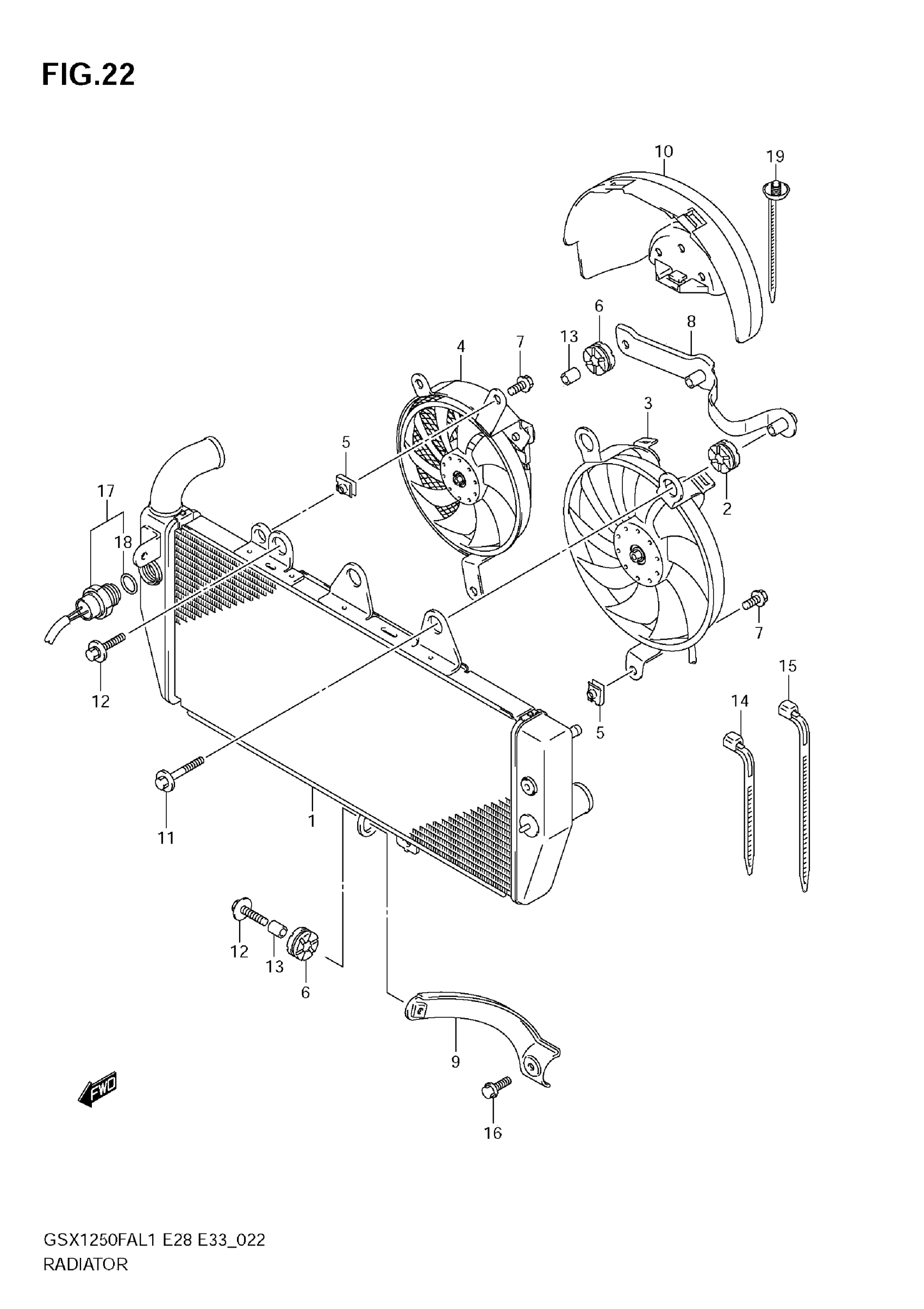

Suzuki GSX1250FAL1 (2011) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-18H10

$1,192.13

2

CUSHION

17781-18H10

$8.35

3

FAN ASSY, RADIATOR

17800-18H10

Unavailable

4

FAN ASSY, RADIATOR

17800-18H20

$467.95

5

NUT

17802-14F00

$3.33

6

CUSHION

09320-10051

$2.91

7

BOLT

01550-0616A

$2.01

8

BRACKET, UPPER

17740-18H10

Unavailable

9

BRACKET, LOWER

17750-18H10

$19.00

10

SHIELD, HEAT

17771-18H00

Unavailable

11

BOLT (6X37)

09116-06176

Unavailable

12

BOLT (6X25)

09118-06097

$2.57

13

SPACER (6.5X10X12)

09180-06290

$2.09

14

CLAMP (L:125)

09407-14403

$2.31

15

CLAMP (L:165)

09407-18402

$2.29

16

BOLT

01550-0620A

$2.01

17

SWITCH, RADIATOR FAN

17680-48E00

$134.47

18

O RING

17689-48E00

$3.25

19

CLAMP (L:154)

09407-17403

$4.79
