2011 Suzuki GSX1250FAL1 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2011 Suzuki GSX1250FAL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

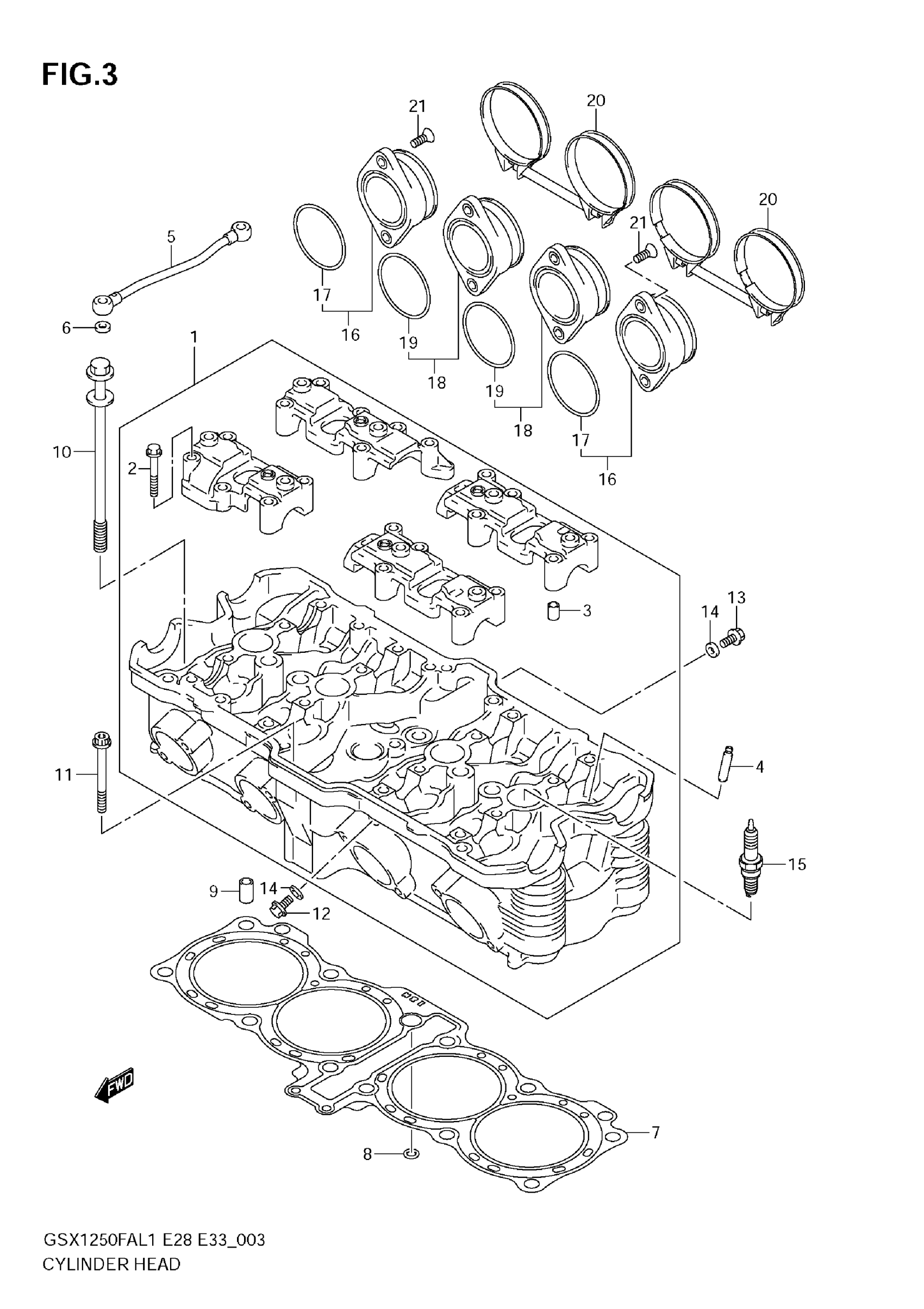

2011 Suzuki GSX1250FAL1 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-18H10

1
Out of stock

2

BOLT (6X45)

09103-06293

21
Out of stock

3

PIN (8X11)

09206-08001

8
Out of stock

4

GUIDE, VALVE (OS 0.3) | OPT

11115-17E70

8
Out of stock

5

PIPE, OIL

11131-18H00

1
Out of stock

6

WASHER

08322-0106B

2
Out of stock

7

GASKET, CYLINDER HEAD

11141-18H00

1
Out of stock

8

O RING

11143-32F00

1
Out of stock

9

PIN

04211-11169

2
Out of stock

10

BOLT

11117-18H00

12
Out of stock

11

BOLT

07120-0665B

2
Out of stock

12

BOLT

01550-0612A

1
Out of stock

13

BOLT

07120-0612B

1
Out of stock

14

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

15

SPARK PLUG (NGK,CR7E)

09482-00516

4
Out of stock

15

SPARK PLUG (DENSO,U22ESR-N)

09482-00515

4
Out of stock

15

SPARK PLUG (NGK,CR6E) | OPT

09482-00528

4
Out of stock

15

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

4
Out of stock

15

SPARK PLUG (DENSO,U20ESR-N) | OPT

09482-00529

4
Out of stock

15

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

4
Out of stock

16

PIPE, INTAKE NO.1

13101-18H00

2
Out of stock

17

O RING (D:2.4,ID:41.7)

09280-42003

2
Out of stock

18

PIPE ASSY,INTAK This part replaces 13102-18H00.

13102-18H01

2
Out of stock

19

O RING (D:2.4,ID:41.7)

09280-42003

2
Out of stock

20

CLAMP, INTAKE PIPE

13170-18H10

2
Out of stock

21

SCREW

02122-0616B

8
Out of stock
