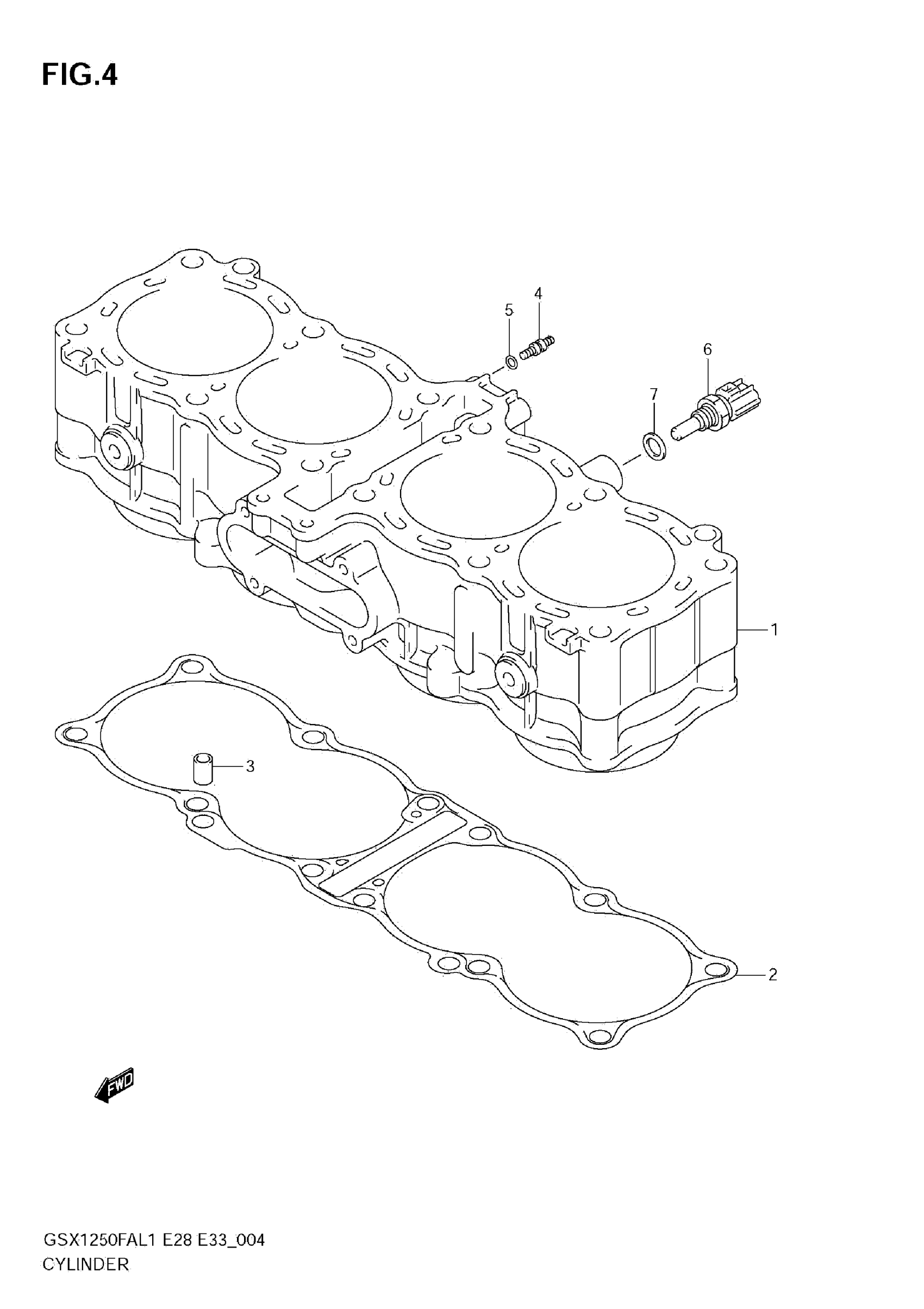

Suzuki GSX1250FAL1 (2011) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11210-18H10-0F0

$2,218.27

2

GASKET, CYLINDER

11241-18H00

$45.70

3

PIN

04211-11169

$1.82

4

JET

09493-80005

$17.57

5

O RING (D:1.2,ID:4)

09280-04004

$1.76

6

SENSOR, WATER TEMP

13650-49X00

$86.27

7

GASKET (12X17X1)

09168-12017

$2.01
