1993 Suzuki GSX1100GP Seat Diagram

← All diagrams

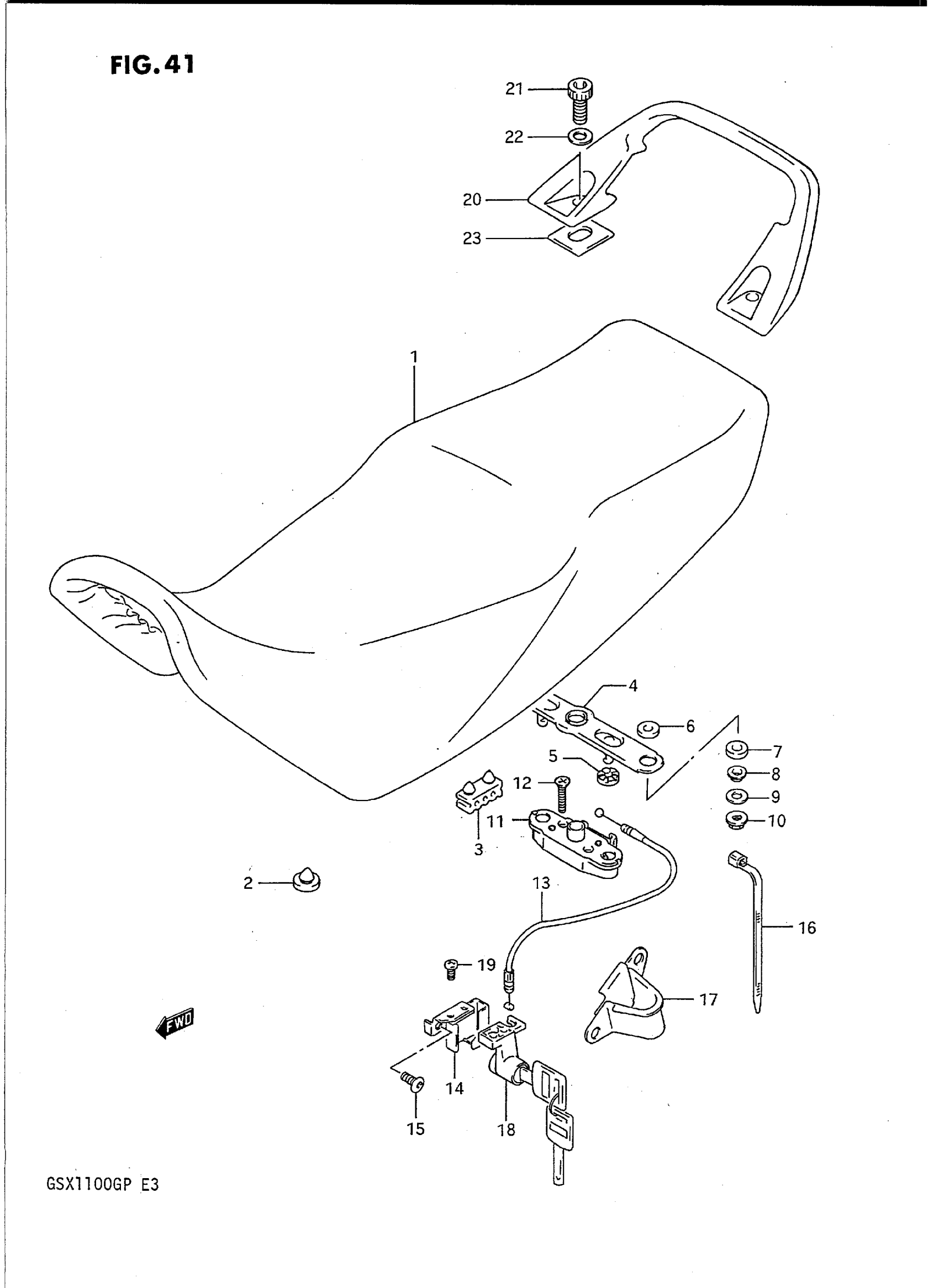

Find the part on the Seat diagram for your 1993 Suzuki GSX1100GP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100GP Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT SET (BLACK) | Includes Item(s) 2 - 10

45100-26D00-59N

1
Out of stock

2

CUSHION, FRONT

09329-10001

1

$2.56

In stock

3

CUSHION, CENTER

45149-31300

6
Out of stock

4

STRIKER, SEAT LOCK

45210-25C01

1
Out of stock

5

CUSHION, BOSS

45213-13601

2

$2.92

In stock

6

2

$2.68

In stock

7

2

$2.68

In stock

8

WASHER This part replaces 09169-06034.

09169-06071

2
Out of stock

9

WASHER

08212-06201

2

$1.80

In stock

10

NUT This part replaces 08316-26066.

08316-1006B

2
Out of stock

11

BRACKET, SEAT SUPPORT | MODEL M/N This part replaces 45220-20A00.

45220-47H00

1
Out of stock

11

BRACKET, SEAT SUPPORT | MODEL P This part replaces 45220-20A01.

45220-47H00

1
Out of stock

12

2

$2.23

In stock

13

CABLE, SEAT LOCK

45280-26D00

1
Out of stock

14

BRACKET, SEAT LOCK UPPER

45290-26D10

1
Out of stock

15

SCREW

09139-08013

1
Out of stock

16

CLAMP

09407-18402

2
Out of stock

17

PLATE, SEAT LOCK CABLE

45290-26D00

1
Out of stock

18

1

$88.40

In stock

19

2

$1.49

In stock

20

HANDLE, PILLION (MAROON)

46211-26D00-20F

1
Out of stock

20

HANDLE, PILLION (BLACK) | MODEL M This part replaces 46211-26D00-0FJ.

46211-26D00-019

1
Out of stock

20

HANDLE, PILLION (BLACK) | MODEL M This part replaces 46211-26D00-1AC.

46211-26D00-019

1
Out of stock

20

HANDLE, PILLION (BLACK) | MODEL M This part replaces 46211-26D00-33J.

46211-26D00-019

1
Out of stock

20

HANDLE, PILLION (BLACK) | MODEL N/P

46211-26D00-019

1
Out of stock

21

2

$5.83

In stock

22

WASHER | MODEL N/P This part replaces 08322-11107.

08322-01107

2
Out of stock

23

CUSHION, FRAME COVER

47161-26D00

4
Out of stock
