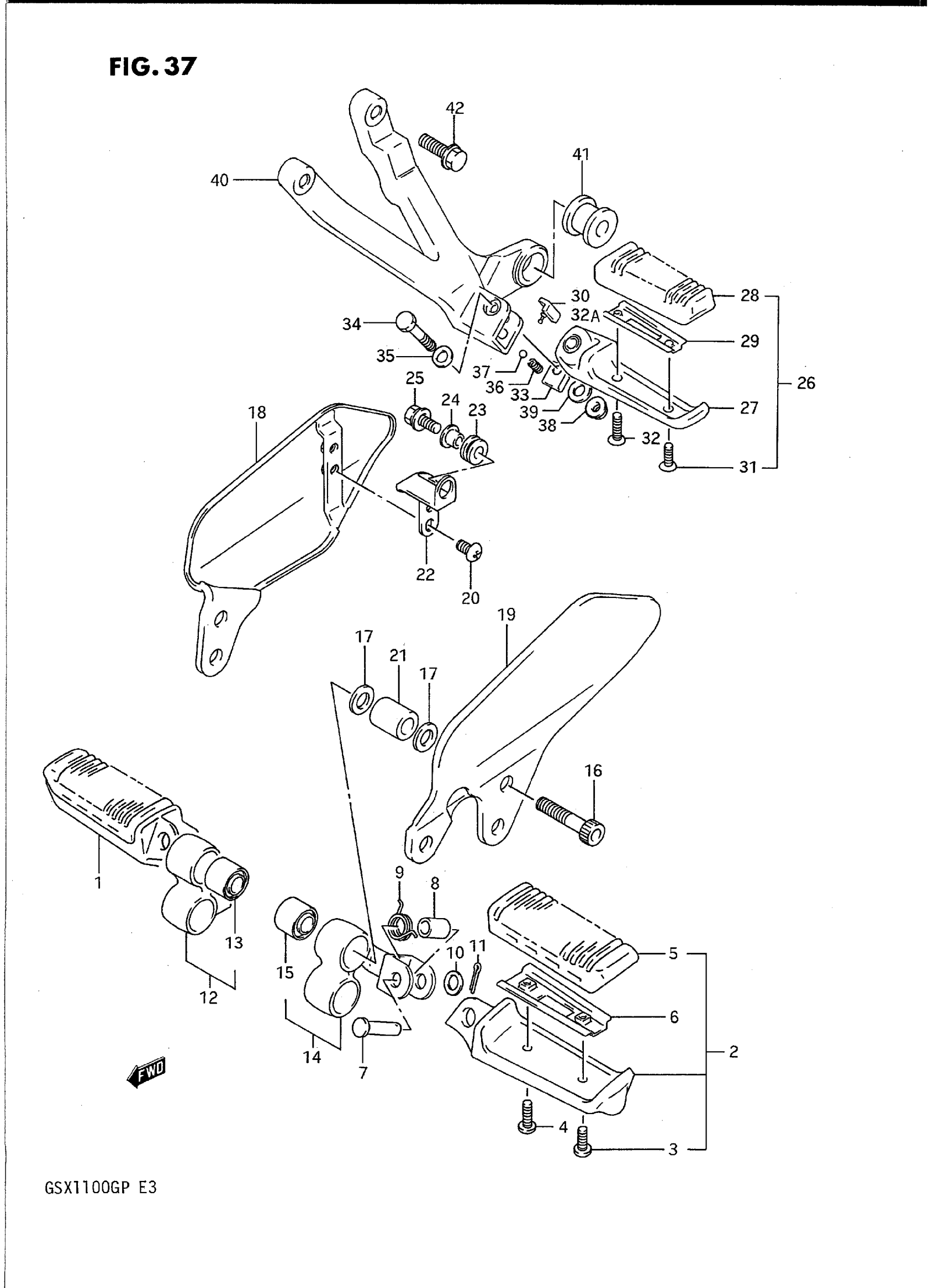

Find the part on the Footrest diagram for your 1993 Suzuki GSX1100GP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100GP Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST ASSY, FRONT RH

43501-45C00

1
Out of stock

2

FOOTREST ASSY, FRONT LH | Includes Item(s) 3 - 6

43502-45C00

1
Out of stock

3

SCREW This part replaces 02112-05128.

02112-05127

2
Out of stock

4

SCREW This part replaces 02112-05168.

02112-05167

2
Out of stock

5

RUBBER,FR FOOTR This part replaces 43551-31301.

43550-31300

2
Out of stock

6

PLATE, FRONT FOOTREST RUBBER

43580-33301

2
Out of stock

7

PIN

09200-08057

2
Out of stock

8

SPACER

09180-08149

2
Out of stock

9

SPRING

09448-18022

2
Out of stock

10

WASHER This part replaces 08322-11084.

08322-0108A

2
Out of stock

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

12

NO DESCRIPTION AVAILABLE | Includes Item(s) 13 This part replaces 43530-26D00.

43530-26D01

1
Out of stock

13

BUSH

09319-10047

2
Out of stock

14

NO DESCRIPTION AVAILABLE | Includes Item(s) 15 This part replaces 43540-26D00.

43540-26D01

1
Out of stock

15

BUSH

09319-10047

2
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 07110-10457.

07130-10457

4
Out of stock

17

WASHER, REAR This part replaces 09160-10057.

09160-10142

8
Out of stock

18

FOOT GUARD, RH | MODEL M/N This part replaces 43560-26D00.

43560-26D01

1
Out of stock

18

FOOT GUARD, RH | MODEL P

43560-26D01

1
Out of stock

19

FOOT GUARD, LH

43570-26D00

1
Out of stock

20

SCREW, PLATE | MODEL M

09125-06071

2
Out of stock

20

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 02142-06088.

02142-06087

2
Out of stock

21

SPACER, LH

43597-26D00

1
Out of stock

22

PLATE, GUARD

43581-26D00

1
Out of stock

23

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

1
Out of stock

24

WASHER

09169-06063

1
Out of stock

25

BOLT (6X20) | MODEL M This part replaces 09116-06065.

09116-06010

1
Out of stock

25

BOLT | MODEL N/P This part replaces 09116-06111.

09116-06152

1
Out of stock

26

FOOTREST ASSY, PILLION RH | MODEL M This part replaces 43600-26D00.

43600-26D01

1
Out of stock

26

FOOTREST ASSY, PILLION RH | MODEL N/P

43600-26D01

1
Out of stock

26

FOOTREST ASSY, PILLION LH | MODEL M This part replaces 43700-26D00.

43700-26D01

1
Out of stock

26

FOOTREST ASSY, PILLION LH | MODEL N/P; Includes Item(s) 27 - 32

43700-26D01

1
Out of stock

27

FOOTREST ASSY, PILLION RH This part replaces 43610-26D00.

43600-26D01

1
Out of stock

27

FOOTREST ASSY, PILLION LH This part replaces 43710-26D00.

43700-26D01

1
Out of stock

28

RUBBER, PILLION FOOTREST

43612-31300

2
Out of stock

29

PLATE, RUBBER STOP

43632-45501

2
Out of stock

30

CUSHION | MODEL M This part replaces 43542-26D00.

43542-26D01

2
Out of stock

31

SCREW This part replaces 02132-05127.

02122-05127

2
Out of stock

32

SCREW This part replaces 02132-05167.

02122-05167

2
Out of stock

32A

CUSHION | MODEL N/P

43542-26D01

2
Out of stock

33

PLATE, SPRING STOP RH

43635-45C00

1
Out of stock

33

PLATE, SPRING STOP LH

43735-45C00

1
Out of stock

34

BOLT

09111-06048

2
Out of stock

35

SHIM

09181-08004

2
Out of stock

36

SPRING

09440-05028

2
Out of stock

37

STEEL BALL

06111-08003

2
Out of stock

38

NUT

08319-31067

2
Out of stock

39

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

40

BRACKET, PILLION RH

43811-26D00

1
Out of stock

40

BRACKET, PILLION LH

43821-26D00

1
Out of stock

41

BUSH

09319-10033

2
Out of stock

42

BOLT | MODEL M This part replaces 07110-08257.

07130-08257

4
Out of stock

42

BOLT | MODEL N/P This part replaces 01517-08258.

01550-08257

4
Out of stock
