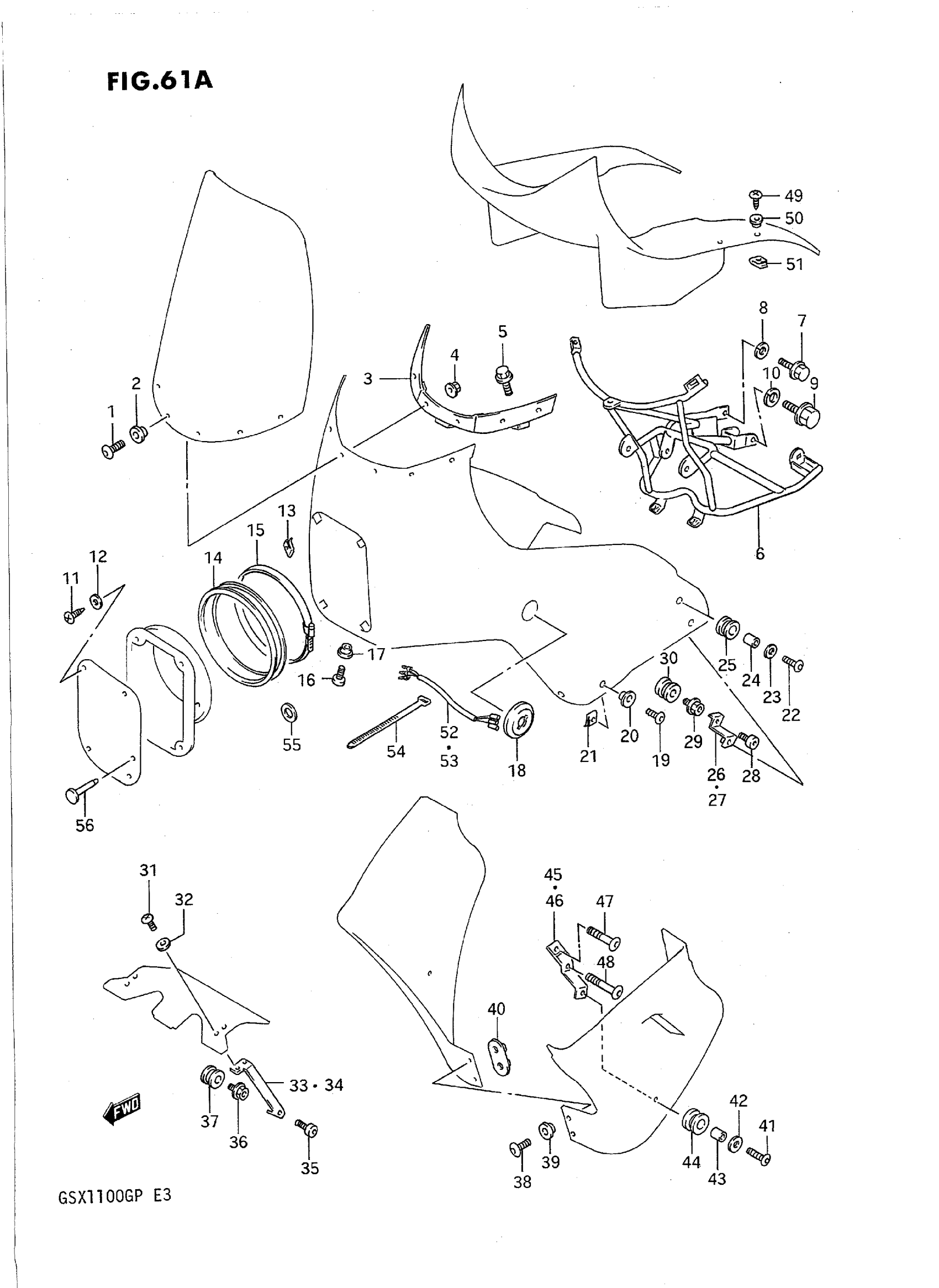

Find the part on the Cowling Fitting SET diagram for your 1993 Suzuki GSX1100GP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100GP Cowling Fitting SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

FULL COWLING SET

94000-26810-1AC

1
Out of stock

FULL COWLING SET

94000-26810-13Z

1
Out of stock

FULL COWLING SET | Includes Item(s) 1 - 56

94000-26810-20F

1
Out of stock

1

SCREW, SCREEN (6X25)

09139-06029

6
Out of stock

2

WASHER

09161-06021

6
Out of stock

3

BRACE, SCREEN

94500-26D50

1
Out of stock

4

NUT This part replaces 08316-26065.

08316-2006A

6
Out of stock

5

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

3
Out of stock

6

BRACE, COWLING

94510-26D50

1
Out of stock

7

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

1
Out of stock

8

1

$1.99

In stock

9

2

$3.06

In stock

10

2

$2.02

In stock

11

SCREW, SCREEN (5X20)

03242-05205

4
Out of stock

12

WASHER (5.2X11.0X1.0)

09161-05010

4
Out of stock

13

NUT This part replaces 09148-05004.

09148-05013

4
Out of stock

14

SHADE, HEADLAMP

35129-26D50

1
Out of stock

15

CLAMP, SHADE

35189-26D50

1
Out of stock

16

SDREW, FRONT (6X16)

09139-06030

2
Out of stock

17

WASHER

09161-06021

2
Out of stock

18

GROMMET, LAMP

35674-27A01

2
Out of stock

19

SCREW, BODY (5X18)

09139-05032

8
Out of stock

20

WASHER

09161-05017

8
Out of stock

21

8

$3.95

In stock

22

2

$3.58

In stock

23

WASHER

09160-06056

2
Out of stock

24

SPACER (6.5X9X10) This part replaces 09180-06114.

09180-06307

2
Out of stock

25

CUSHION

09320-09016

2
Out of stock

26

BRACE, BODY REAR RH

94453-26D50

1
Out of stock

27

BRACE, BODY REAR LH

94454-26D50

1
Out of stock

28

BOLT, NO.3 This part replaces 07110-06105.

07130-0610B

2
Out of stock

29

PLUG, HEAD

09247-14032

2
Out of stock

30

GASKET

09168-14004

2
Out of stock

31

.SCREW This part replaces 02142-05124.

02142-0512A

4
Out of stock

32

WASHER (5.2X11.0X1.0)

09161-05010

4
Out of stock

33

PLATE, HEAT GUARD RH

94555-26D50

1
Out of stock

34

PLATE, HEAT GUARD LH

94556-26D50

1
Out of stock

35

BOLT, NO.3 This part replaces 07110-06105.

07130-0610B

2
Out of stock

36

PLUG, HEAD

09247-14032

2
Out of stock

37

GASKET

09168-14004

2
Out of stock

38

SCREW, UNDER FRONT (6X16)

09139-06030

2
Out of stock

39

WASHER

09161-06021

2
Out of stock

40

PLATE, UNDER

94493-06B00

1
Out of stock

41

SCREW, UNDER (6X20)

09139-06028

2

$3.58

In stock

42

WASHER

09160-06056

2
Out of stock

43

SPACER (6.5X9X10) This part replaces 09180-06114.

09180-06307

2
Out of stock

44

CUSHION

09320-09016

2
Out of stock

45

BRACE, LOWER RH

94551-26D50

1
Out of stock

46

BRACE, LOWER LH

94552-26D50

1
Out of stock

47

BOLT | FIG.35,NO.13 This part replaces 07110-08605.

07130-0860B

2
Out of stock

48

BOLT This part replaces 07110-08708.

07130-0870B

2
Out of stock

49

SCREW, PANEL (5X20)

03242-05205

10
Out of stock

50

WASHER

09161-05017

10
Out of stock

51

NUT This part replaces 09148-05004.

09148-05013

10
Out of stock

52

WIRE, TURNSIGNAL LH This part replaces 36852-26D00.

36852-26D10

1
Out of stock

53

WIRE, TURNSIGNAL LH

36852-26D10

1
Out of stock

54

CLAMP, FRONT TURNSIGNAL

09407-10404

4
Out of stock

54

CLAMP (L:82) This part replaces 09404-10403.

09404-10205

1
Out of stock

54

CLAMP, CLUTCH HOSE

09407-14403

1
Out of stock

55

WASHER

08322-11046

6
Out of stock

56

PLUG, HEADLAMP

35165-26D50

1
Out of stock
