1993 Suzuki GSX1100GP Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1993 Suzuki GSX1100GP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

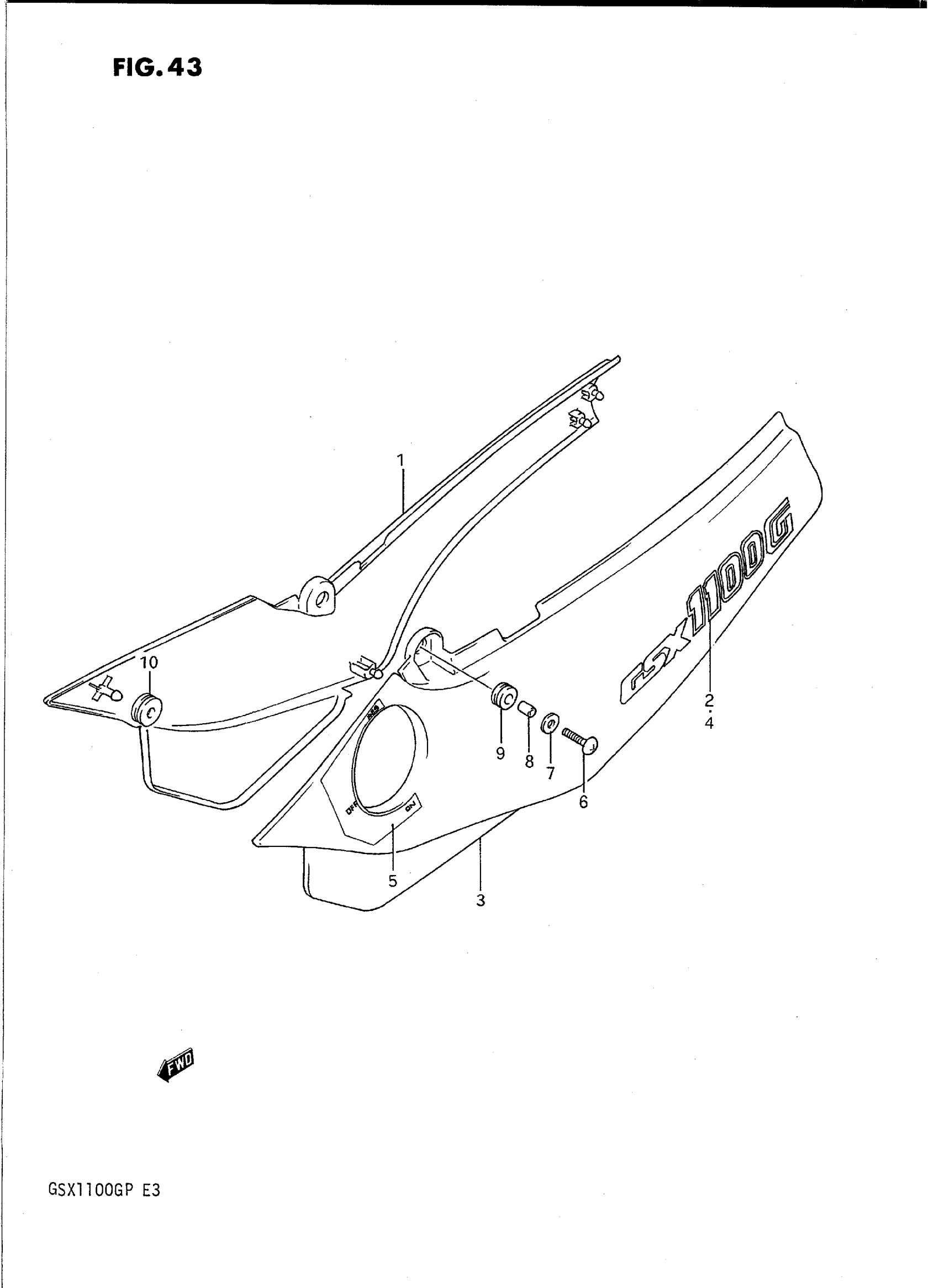

1993 Suzuki GSX1100GP Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (MAROON)

47110-26D00-20F

1
Out of stock

1

COVER, FRAME RH (BLUE) | MODEL M

47110-26D00-0FJ

1
Out of stock

1

COVER, FRAME RH (GRAY) | MODEL M

47110-26D00-1AC

1
Out of stock

1

COVER, FRAME RH (BLACK) | MODEL M This part replaces 47110-26D00-33J.

47110-26D00-13Z

1
Out of stock

1

COVER, FRAME RH (BLACK) | MODEL N/P; Includes Item(s) 2 - 2

47110-26D00-13Z

1
Out of stock

2

EMBLEM, FRAME C | FOR 20F,33J,0FJ,13Z This part replaces 68131-26D01-J56.

68131-26D01-0RN

1
Out of stock

2

EMBLEM, FRAME C | FOR 1AC This part replaces 68131-26D01-J57.

68131-26D01-0RN

1
Out of stock

3

COVER, FRAME LH (MAROON)

47210-26D00-20F

1
Out of stock

3

COVER, FRAME LH (BLACK) | MODEL M This part replaces 47210-26D00-0FJ.

47210-26D00-13Z

1
Out of stock

3

COVER, FRAME LH (GRAY) | MODEL M

47210-26D00-1AC

1
Out of stock

3

COVER, FRAME LH (BLACK) | MODEL M

47210-26D00-33J

1
Out of stock

3

COVER, FRAME LH (BLACK) | MODEL N/P; Includes Item(s) 4 - 5

47210-26D00-13Z

1
Out of stock

4

EMBLEM, FRAME C | FOR 20F,33J,0FJ,13Z This part replaces 68131-26D01-J56.

68131-26D01-0RN

1
Out of stock

4

EMBLEM, FRAME C | FOR 1AC This part replaces 68131-26D01-J57.

68131-26D01-0RN

1
Out of stock

5

LABEL, FUEL COCK

47913-45C00-064

1
Out of stock

6

2

$1.49

In stock

7

WASHER

09160-06056

2

$2.07

In stock

8

SPACER This part replaces 09180-06152.

09180-06262

2
Out of stock

9

CUSHION

09320-09016

2
Out of stock

10

CUSHION

09320-08018

4
Out of stock
