1993 Suzuki GSX1100GP Alternator Diagram

← All diagrams

Find the part on the Alternator diagram for your 1993 Suzuki GSX1100GP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

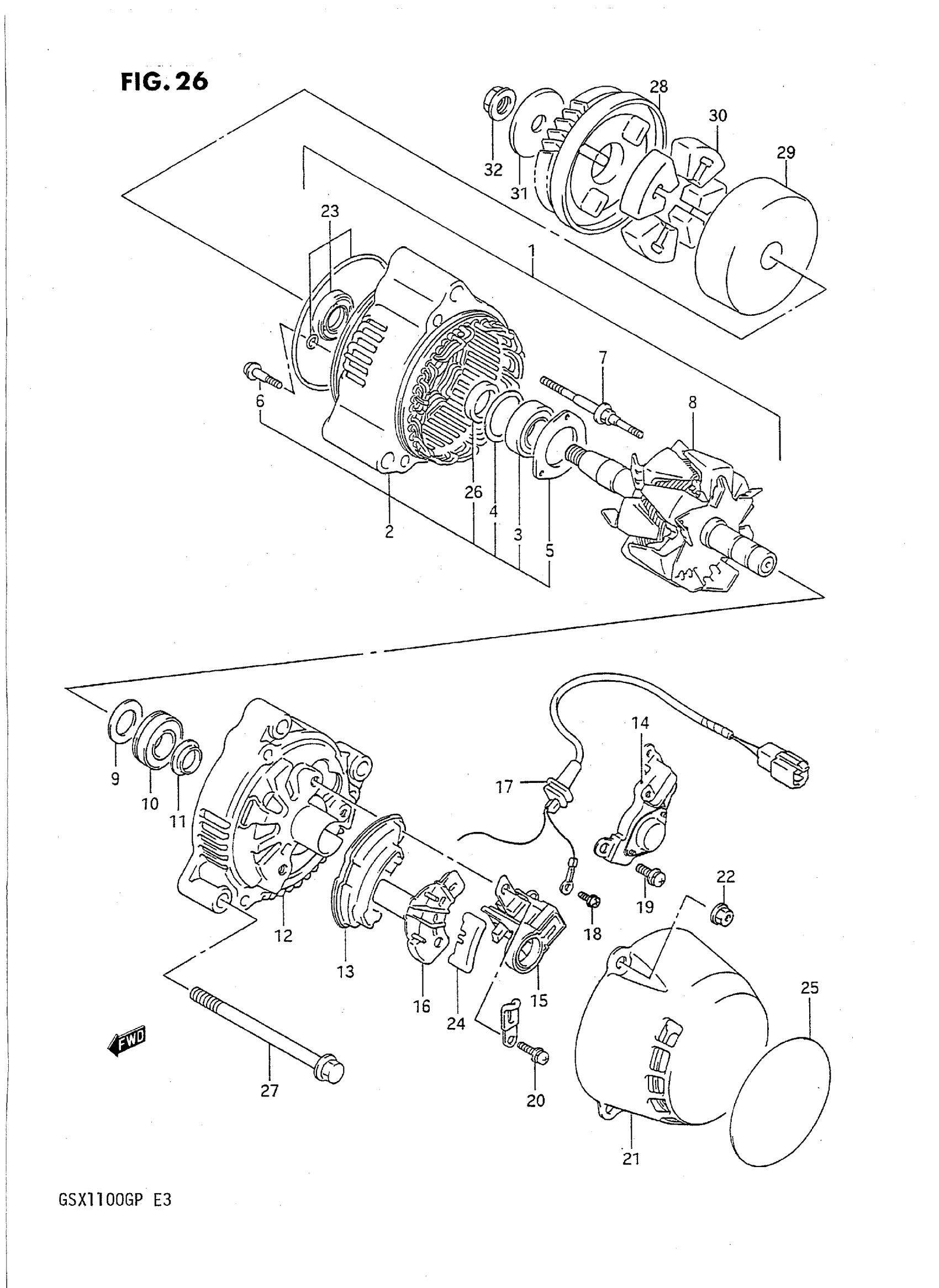

1993 Suzuki GSX1100GP Alternator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ALTERNATOR ASSY | MODEL M/N This part replaces 31400-48B03.

31400-17C04

1
Out of stock

1

ALTERNATOR ASSY | MODEL P; Includes Item(s) 2 - 24 This part replaces 31400-19C02.

31400-17C04

1
Out of stock

2

FRAME, DRIVE END

31580-48B00

1
Out of stock

3

BEARING

31612-06B00

1
Out of stock

4

COVER, BEARING

31613-48B00

1
Out of stock

5

RETAINER, BEARING

31585-48B00

1
Out of stock

6

SCREW, BEARING RETAINER

31586-48B00

3
Out of stock

7

STUD BOLT This part replaces 31587-19C00.

31587-85250

3
Out of stock

8

ROTOR ASSY This part replaces 31710-48B03.

31710-48B04

1
Out of stock

9

COVER (1)

31613-82610

1
Out of stock

10

BEARING

31612-48B00

1
Out of stock

11

COVER (2)

31613-27A10

1
Out of stock

12

FRAME, END

31611-48B00

1
Out of stock

13

HOLDER, RECTIFIER

31621-27A00

1
Out of stock

14

REGULATOR

32500-27A00

1
Out of stock

15

HOLDER, BRUSH

31656-48B00

1
Out of stock

16

COVER, RECTIFIER This part replaces 31687-27A00.

31687-17E00

1
Out of stock

17

LEAD WIRE

31480-48B00

1
Out of stock

18

2

$1.67

In stock

19

SCREW (5X17)

31688-27A00

2
Out of stock

20

SCREW (5X17) This part replaces 31688-06B00.

31688-27A00

1
Out of stock

21

COVER

31614-48B00

1
Out of stock

22

NUT

08316-16055

3
Out of stock

23

OIL SEAL SET This part replaces 31780-48B00.

31780-27X50

1
Out of stock

24

COVER, RECTIFIER This part replaces 31514-27A00.

31687-17E00

1
Out of stock

25

PLATE, ALTERNATOR ABSORBER | MODEL M This part replaces 31615-17C00.

31615-27E00

1
Out of stock

26

SPACER

31776-06B00

1
Out of stock

27

3

$5.63

In stock

28

NO DESCRIPTION AVAILABLE This part replaces 22730-26D00.

22730-26D01

1
Out of stock

29

NO DESCRIPTION AVAILABLE This part replaces 22733-26D00.

22733-26D01

1
Out of stock

30

DAMPER

21231-26D00

4
Out of stock

31

WASHER (10X36X2)

09160-10116

1
Out of stock

32

NUT This part replaces 08316-26106.

08316-2010B

1
Out of stock
