1993 Suzuki GSX1100GP Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 1993 Suzuki GSX1100GP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

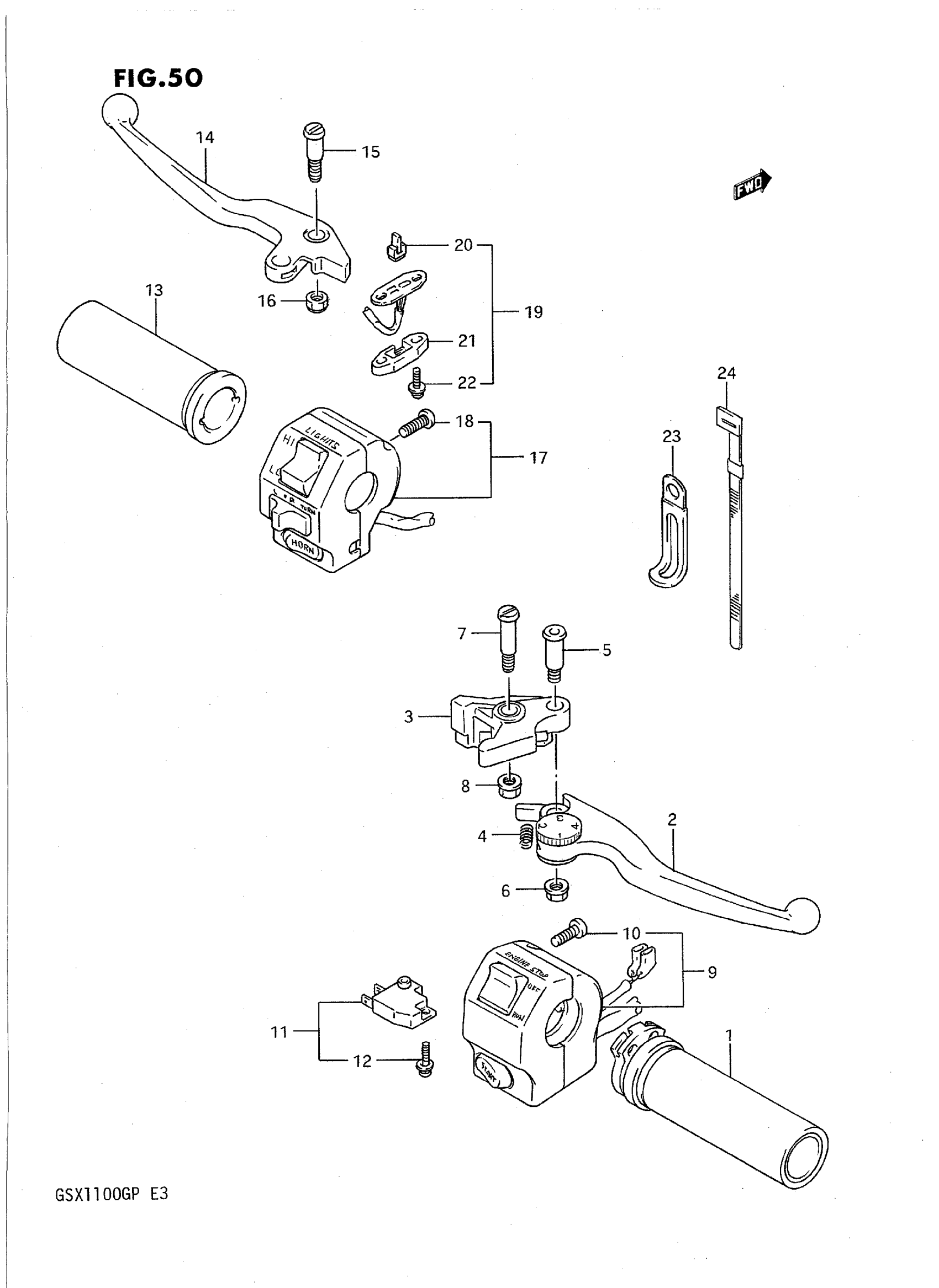

1993 Suzuki GSX1100GP Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP COMP,THROT This part replaces 57110-26D00.

57110-26D01

1
Out of stock

2

LEVER, ADJUST

57420-32C00

1
Out of stock

3

KNOCKER | Includes Item(s) 4 This part replaces 57430-40C00.

57430-40C10

1
Out of stock

4

SPRING

57438-32C00

1
Out of stock

5

BOLT, LEVER This part replaces 57437-32C00.

57437-32C01

1
Out of stock

6

NUT This part replaces 08319-31065.

08319-3106A

1
Out of stock

7

BOLT, LEVER

57431-17C00

1
Out of stock

8

NUT This part replaces 08316-16064.

08316-1006B

1
Out of stock

9

SWITCH ASSY, HANDLE RH | MODEL M This part replaces 37200-26D30.

37200-26D60

1
Out of stock

9

SWITCH ASSY, HANDLE RH | MODEL N/P; Includes Item(s) 10

37200-26D60

1
Out of stock

10

.SCREW This part replaces 02112-05455.

02112-0545B

2
Out of stock

11

SWITCH ASSY,FR BRAKE | Includes Item(s) 12 This part replaces 57460-17C00.

57460-14J02

1
Out of stock

12

SCREW

57465-17C00

1
Out of stock

13

1

$30.14

In stock

14

LEVER, CLUTCH This part replaces 57620-40C00.

57621-38A02

1
Out of stock

15

BOLT This part replaces 57431-26D00.

57431-05A00

1
Out of stock

16

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

17

SWITCH ASSY, HANDLE LH | MODEL M

37400-26D30

1
Out of stock

17

SWITCH ASSY, HANDLE LH | MODEL N/P; Includes Item(s) 18

37400-26D60

1
Out of stock

18

.SCREW This part replaces 02112-05455.

02112-0545B

2
Out of stock

19

SWITCH ASSY, CLUTCH | Includes Item(s) 20 - 22 This part replaces 57560-08A00.

57560-18D10

1
Out of stock

20

HOLDER

57465-18601

1
Out of stock

21

COVER

57481-33010

1
Out of stock

22

SCREW This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock

23

CLAMP | MODEL MMODEL N/P This part replaces 09404-08402.

09404-08420

4
Out of stock

24

BAND

09407-12402

4
Out of stock
