1993 Suzuki GSX1100GP Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 1993 Suzuki GSX1100GP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

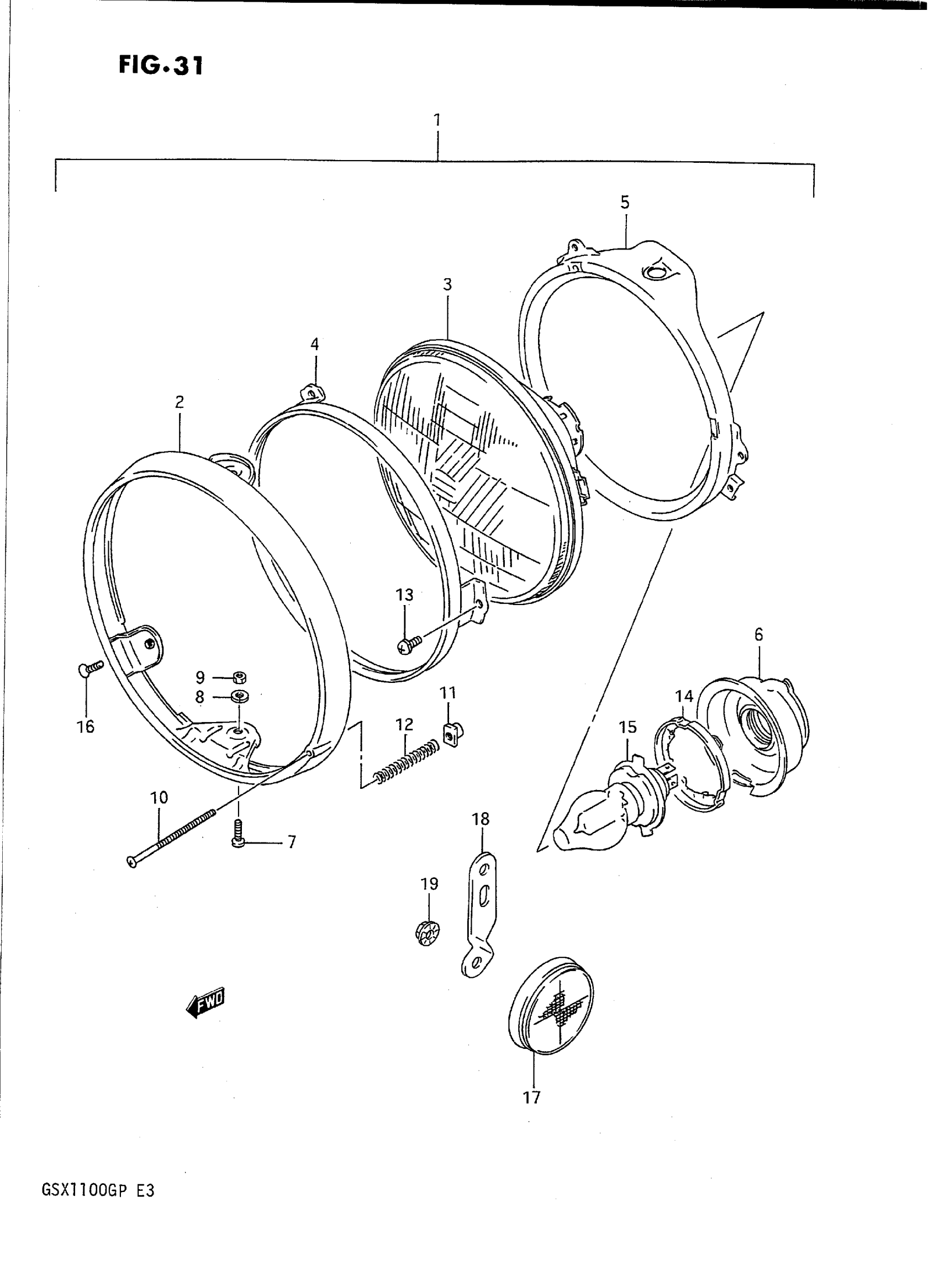

1993 Suzuki GSX1100GP Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 15

35100-01D30

1
Out of stock

2

RIM

35111-01D20

1
Out of stock

3

LAMP UNIT

35121-34430

1
Out of stock

4

RING

35127-45030

1
Out of stock

5

RING, MOUNTING

35130-45030

1
Out of stock

6

COVER, SOCKET This part replaces 35173-45000.

35173-20A01

1
Out of stock

7

SCREW

35181-15611

2
Out of stock

8

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

9

NUT This part replaces 08310-11056.

08310-0005A

2
Out of stock

10

SCREW This part replaces 35151-45030.

35151-45900

1
Out of stock

11

NUT

35152-15611

1
Out of stock

12

SPRING

35154-31900

1
Out of stock

13

SCREW This part replaces 02112-04106.

02112-0410A

3
Out of stock

14

SETTER, BULB

35136-34400

1
Out of stock

15

BULB (12V,60/55W,H4)

09471-12060

1
Out of stock

16

SCREW This part replaces 02132-05127.

02122-05127

2
Out of stock

17

REFLECTOR, FRONT SIDE

35950-14A00

2
Out of stock

18

BRACKET, RH

35956-26D00

1
Out of stock

18

BRACKET, LH

35957-26D00

1
Out of stock

19

NUT This part replaces 08316-26055.

08316-2005A

2
Out of stock
