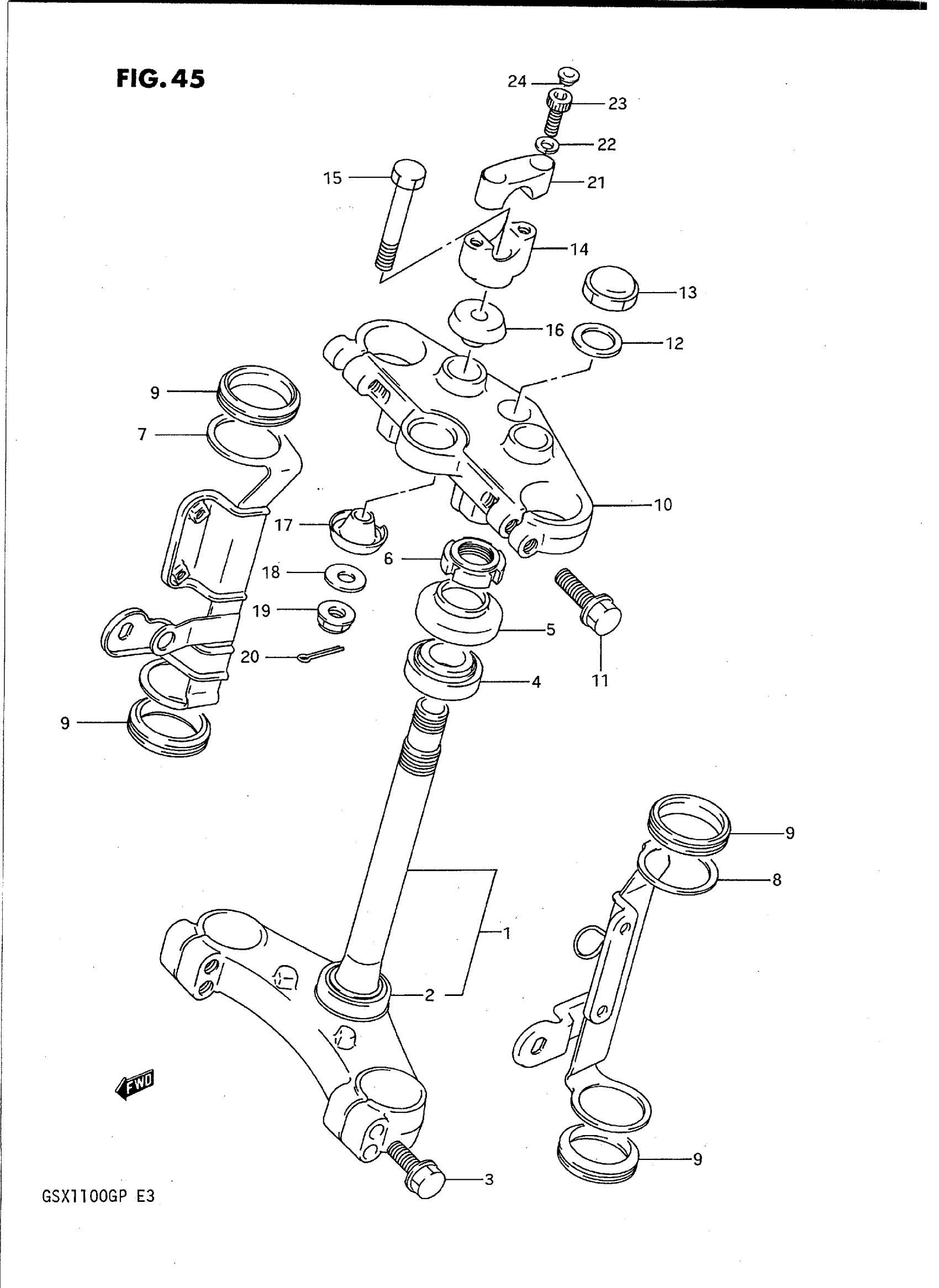

Suzuki GSX1100GP (1993) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-26D10

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$52.22

3

BOLT This part replaces 51328-26D00.

01550-0840A

$2.80

4

BEARING

09265-25008

$61.43

5

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$13.92

6

NUT, STEM

51631-28000

$19.60

7

BRACKET, HEADLAMP RH | MODEL M/N

51530-26D00

Unavailable

7

BRACKET, HEADLAMP RH | MODEL P

51530-26D01

Unavailable

8

BRACKET, HEADLAMP LH | MODEL M/N This part replaces 51540-26D00.

51540-26D01

Unavailable

8

BRACKET, HEADLAMP LH | MODEL P

51540-26D01

Unavailable

9

DAMPER,HEAD LAMP HSG BRKT This part replaces 51553-26D00.

51553-15D01

$3.66

10

HEAD, STEERING STEM

51311-26D10

Unavailable

11

BOLT This part replaces 01517-10458.

01550-1045B

$5.17

12

WASHER

51356-24B01

$7.13

13

NUT

51353-24B00

$34.62

14

HOLDER, HANDLE LOWER

56221-26D10

Unavailable

15

BOLT

56321-28C00

$7.80

16

RUBBER, DAMPER UPPER

56242-26D00

Unavailable

17

RUBBER, DAMPER LOWER

56242-14200

$33.97

18

WASHER This part replaces 51356-40400.

09160-10035

$1.80

19

NUT

08319-31107

$2.73

20

PIN This part replaces 04111-20308.

04111-2030A

$1.63

21

HOLDER, HANDLE UPPER

56211-26D10

Unavailable

22

LOCK WASHER

09164-08015

$2.90

23

BOLT This part replaces 07110-08307.

07130-08307

$4.98

24

CAP

09250-06009

$3.13
