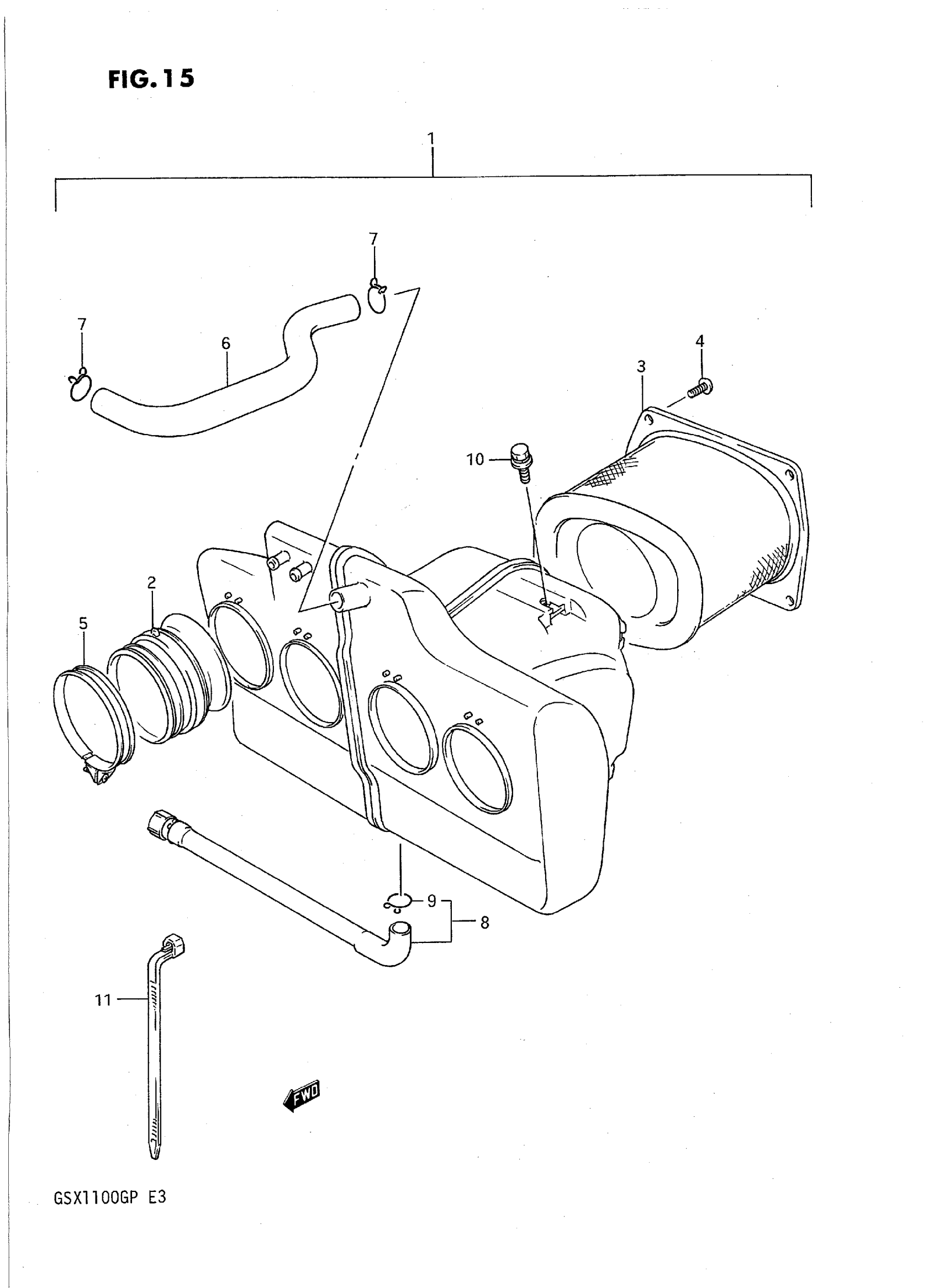

Suzuki GSX1100GP (1993) AIR CLEANER Diagram

#

Description

Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 9

13700-26D00

Unavailable

2

TUBE,OUTLET This part replaces 13881-01D00.

13881-01D02

$16.19

3

FILTER ASSY

13780-26D00

Unavailable

4

.SCREW This part replaces 02142-05124.

02142-0512A

$1.41

5

CLAMP

09402-68208

$5.28

6

TUBE, BREATHER

13853-26D00

Unavailable

7

CLIP This part replaces 13824-48B10.

09401-16401

$2.97

8

TUBE,DRAIN This part replaces 13870-26D00.

13870-21309

$11.86

9

CLIP This part replaces 13824-00A00.

09401-13409

$2.20

10

BOLT This part replaces 01177-06166.

01580-0616A

$2.53

11

CLAMP, DRAIN TUBE

09407-14403

$2.31
