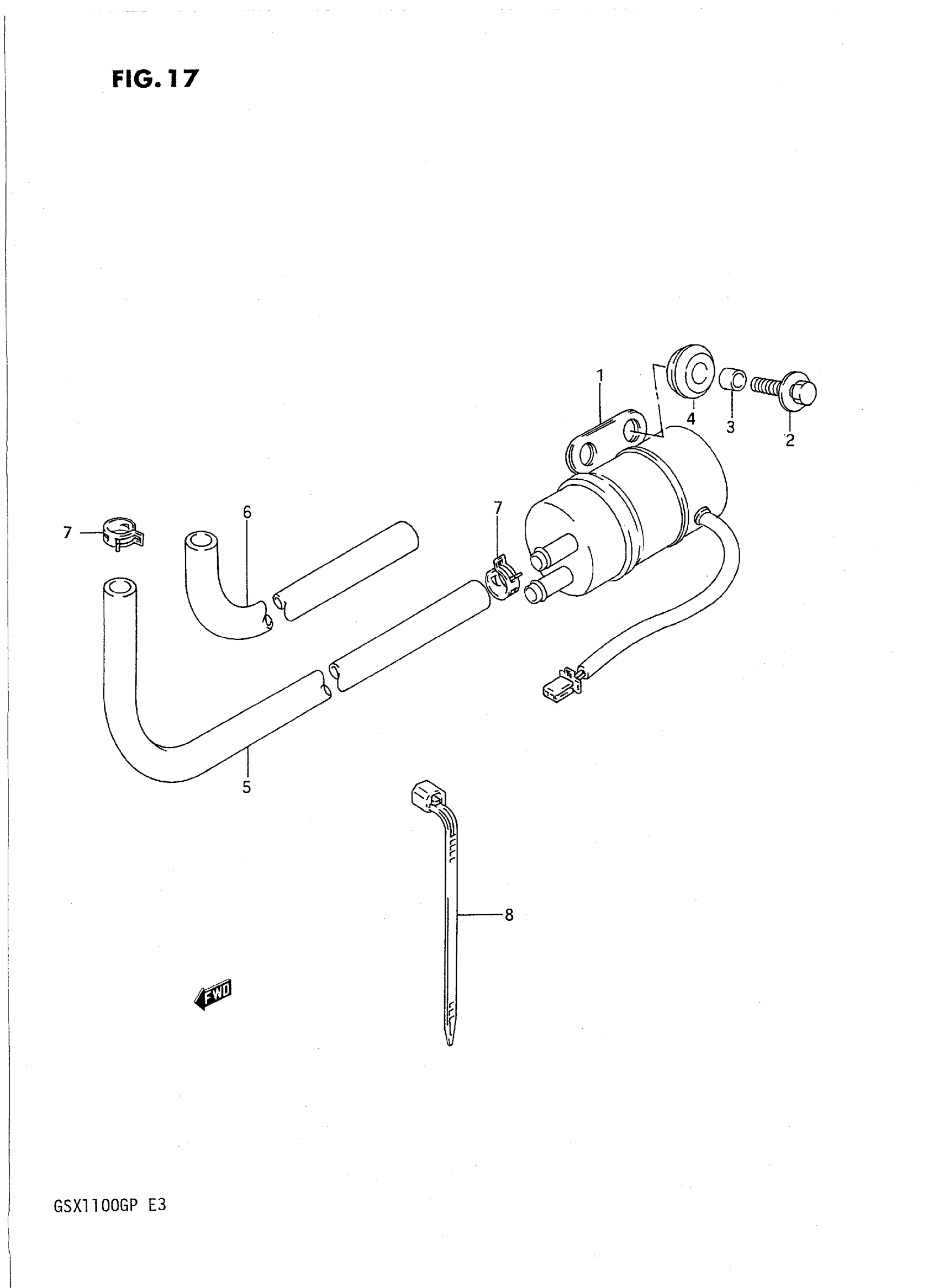

Suzuki GSX1100GP (1993) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY, FUEL

15100-26D00

Unavailable

2

BOLT (6X20)

09116-06010

$2.17

3

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

4

CUSHION This part replaces 09320-09026.

09320-09062

$2.14

5

HOSE,FUEL | L:1000->620 This part replaces 09354-70133-00A.

09355-70125-00B

$46.10

6

PROTECTOR (14.5X15.5X600) | L:600->580

09351-14152-600

$10.07

7

CLIP

09401-12404

$2.44

8

CLAMP (L:125) | MODEL M

09407-14403

$2.31
