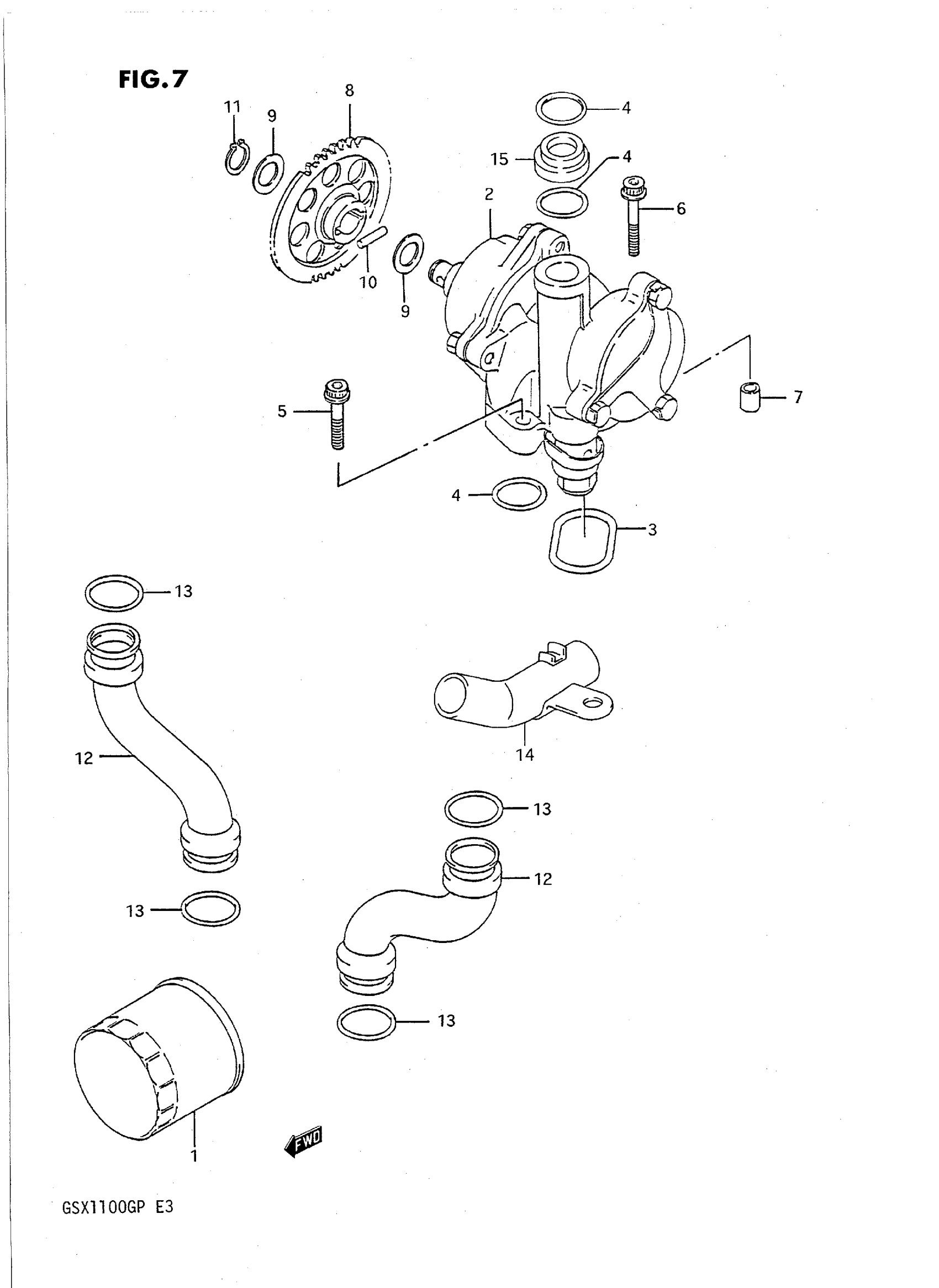

Suzuki GSX1100GP (1993) OIL PUMP Diagram

#

Description
Price

1

FILTER, ENGINE OIL This part replaces 16510-06B01.

16510-07J00

$11.99

2

PUMP ASSY, ENGINE OIL This part replaces 16400-06B10.

16400-06B01

Unavailable

3

O RING, OIL PUMP

16491-27A01

$10.51

4

O RING

09280-18009

$5.26

5

BOLT This part replaces 07120-06308.

07120-06307

$4.70

6

BOLT This part replaces 07120-06358.

07120-0635B

$3.10

7

PIN

04211-09129

$1.64

8

GEAR, OIL PUMP DRIVEN

16331-26D00-0B0

Unavailable

9

WASHER

08221-12205

$2.50

10

PIN

09261-05006

$1.46

11

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77

12

PIPE, OUTLET

16481-48B01

$56.53

13

O RING

09280-22016

$5.04

14

PIPE, OIL UNDER

16530-26D00

Unavailable

15

SPACER, OIL PUMP

16421-26D00

Unavailable
