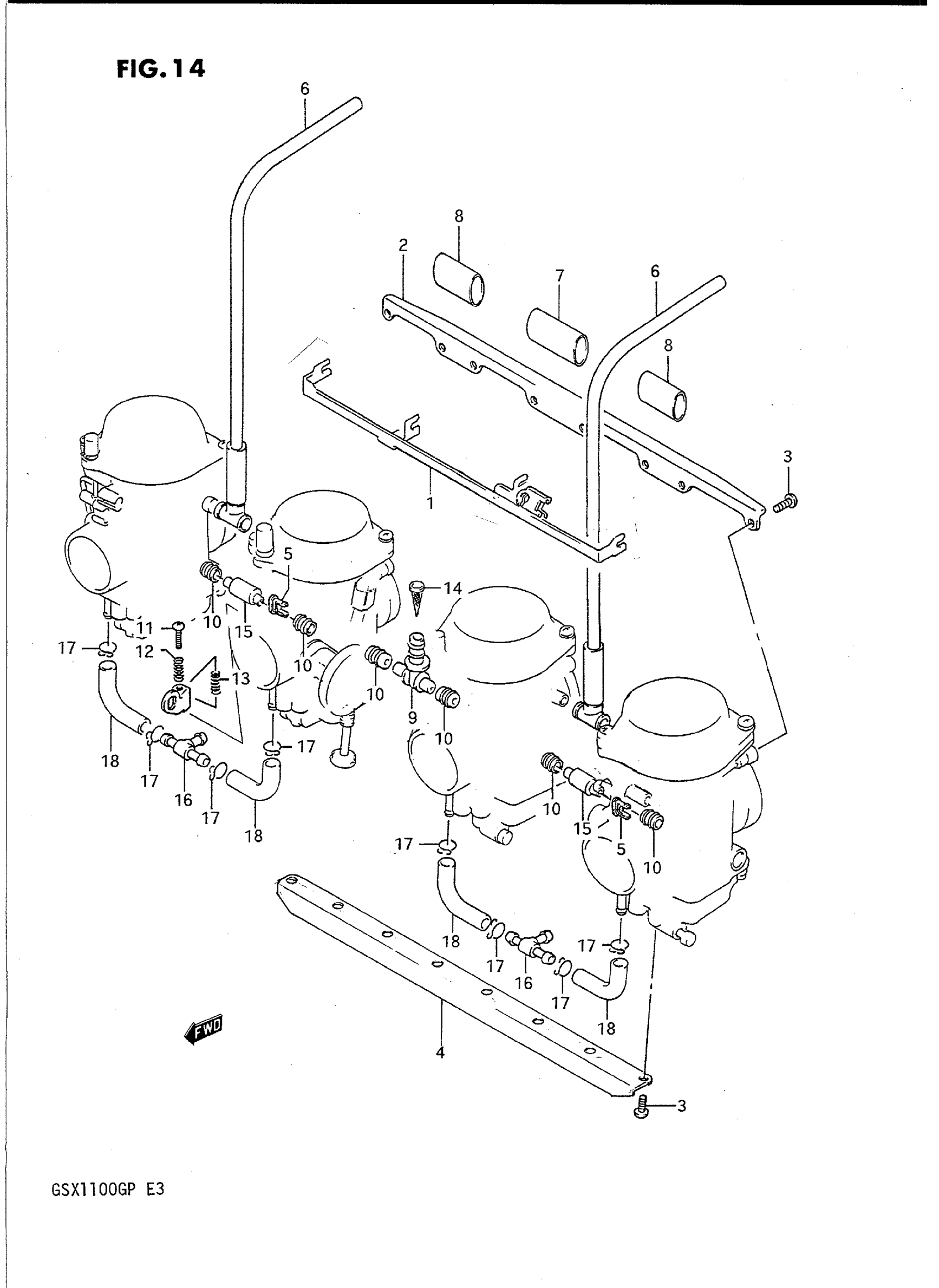

Suzuki GSX1100GP (1993) CARBURETOR FITTINGS Diagram

#

Description
Price

1

LEVER

13413-26D00

Unavailable

2

PLATE

13628-17C10

Unavailable

3

SCREW This part replaces 13602-05128.

02112-05127

$2.01

4

PLATE

13628-17D00

Unavailable

5

HOLDER

13439-17C00

$14.10

6

HOSE | LH,L:625->200RH,L:625->115 This part replaces 13683-17C30.

13683-17C31

$16.39

7

HOSE This part replaces 13684-17C00.

13684-43440

Unavailable

8

HOSE This part replaces 13684-17C10.

13684-43440

Unavailable

9

NIPPLE

13685-44B00

$11.19

10

SEAL

13673-44B00

$4.40

11

SCREW

13267-44B00

$4.62

12

SPRING

13271-44B00

$3.83

13

SPRING

13268-17C10

$6.08

14

FILTER

13236-26D00

Unavailable

15

PIPE

13556-26D00

Unavailable

16

.NIPPLE | CALIFORNIA ONLY

13685-48B00

$11.96

17

CLIP | CALIFORNIA ONLY This part replaces 13671-48B10.

09401-10401

$1.49

18

HOSE | CALIFORNIA ONLY This part replaces 13684-48B00.

13684-48B11

$15.28
