1993 Suzuki GSX1100F Headlamp Diagram

← All diagrams

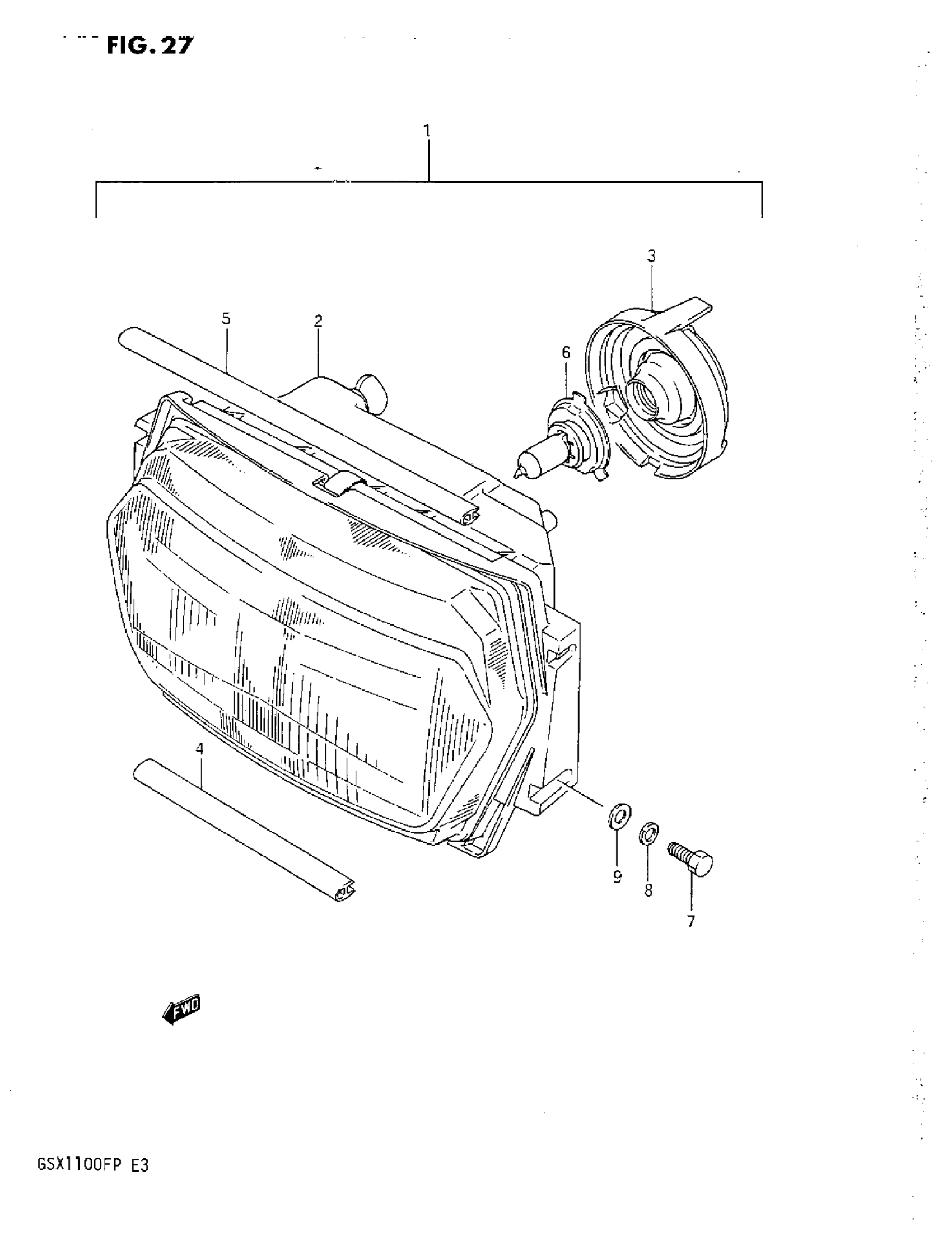

Find the part on the Headlamp diagram for your 1993 Suzuki GSX1100F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100F Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-48B10

1
Out of stock

2

UNIT

35121-48B10

1
Out of stock

3

SOCKET COVER

35173-48B00

1
Out of stock

4

GASKET

35242-48B00

1
Out of stock

5

GASKET

35243-48B00

1
Out of stock

6

BULB (12V, 60/55W)

09471-12060

1
Out of stock

7

BOLT | MODEL J/K/L/M This part replaces 01107-06166.

01500-0616A

4
Out of stock

7

BOLT | MODEL N/P This part replaces 01177-06166.

01580-0616A

4
Out of stock

8

4

$1.97

In stock

9

.WASHER This part replaces 08322-21066.

08322-0106B

4
Out of stock
← Handle Switch Rear Combination Lamp →
