2016 Suzuki GSX-S750AL6 Seat Diagram

← All diagrams

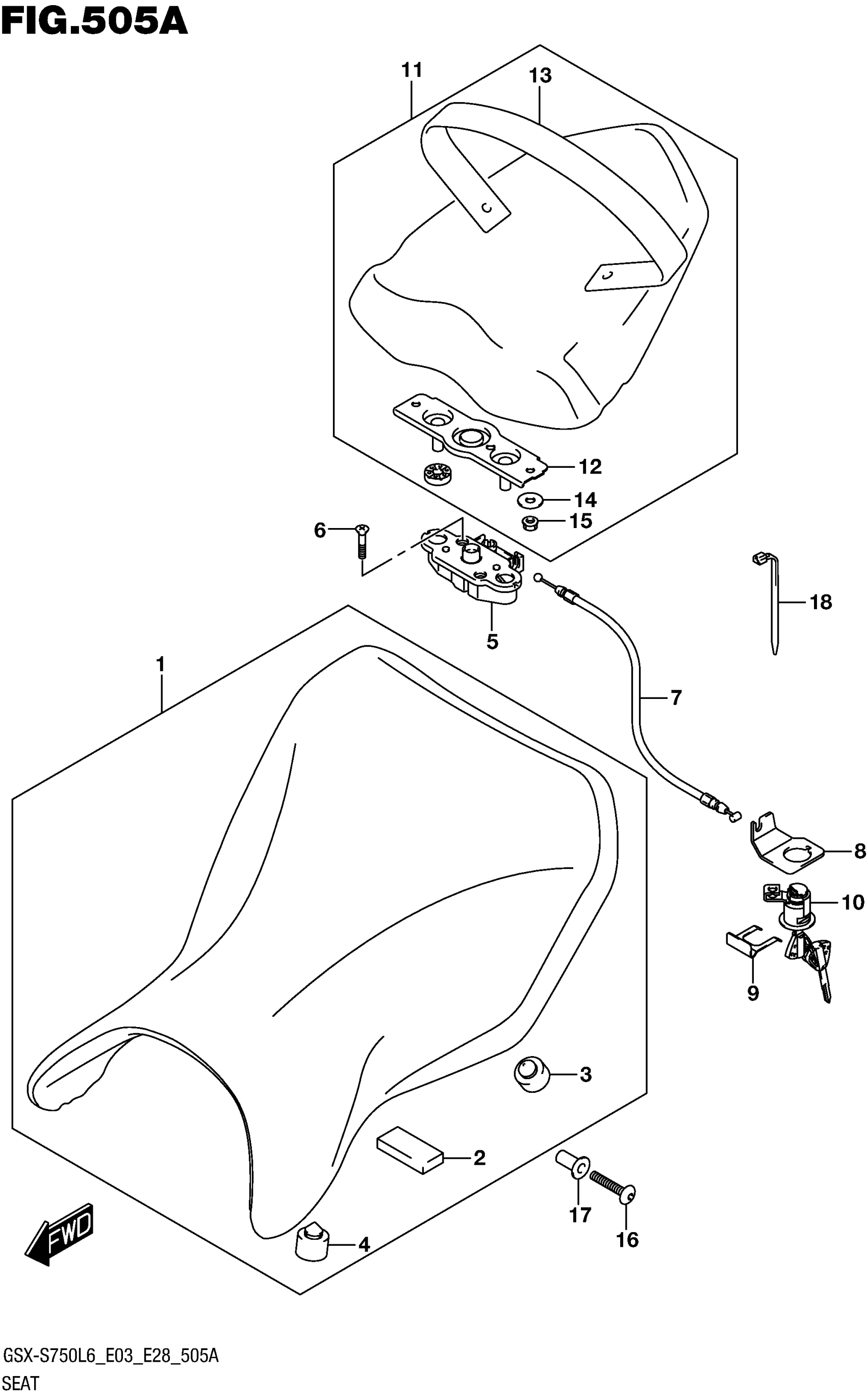

Find the part on the Seat diagram for your 2016 Suzuki GSX-S750AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki GSX-S750AL6 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$257.52

In stock

2

.CUSHION

45149-37H00

1

$7.77

In stock

3

.CUSHION

09321-10011

4

$2.92

In stock

4

.CUSHION

09321-10034

2

$8.17

In stock

5

BRACKET, SEAT SUPPORT

45220-47H00

1
Out of stock

6

SCREW

02122-0630A

2

$1.89

In stock

7

CABLE, SEAT LOCK

45280-08J00

1
Out of stock

8

GUIDE, SEAT LOCK CABLE

45288-14F00

1
Out of stock

9

PLATE, SEAT LOCK ASSY

45289-11F00

1
Out of stock

10

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

1
Out of stock

11

1

$243.93

In stock

12

.STRIKER, SEAT LOCK

45290-47H01

1

$44.02

In stock

13

.BAND, PILLION SEAT GRIP

45380-08J00

—
Out of stock

14

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

15

.NUT

08316-1006A

2
Out of stock

16

SCREW (6X30)

09139-06065-XC0

2

$2.92

In stock

17

SPACER (6.5X9X19.4)

09180-06320

2

$4.62

In stock

18

CLAMP (L:95)

09407-11401

1
Out of stock
