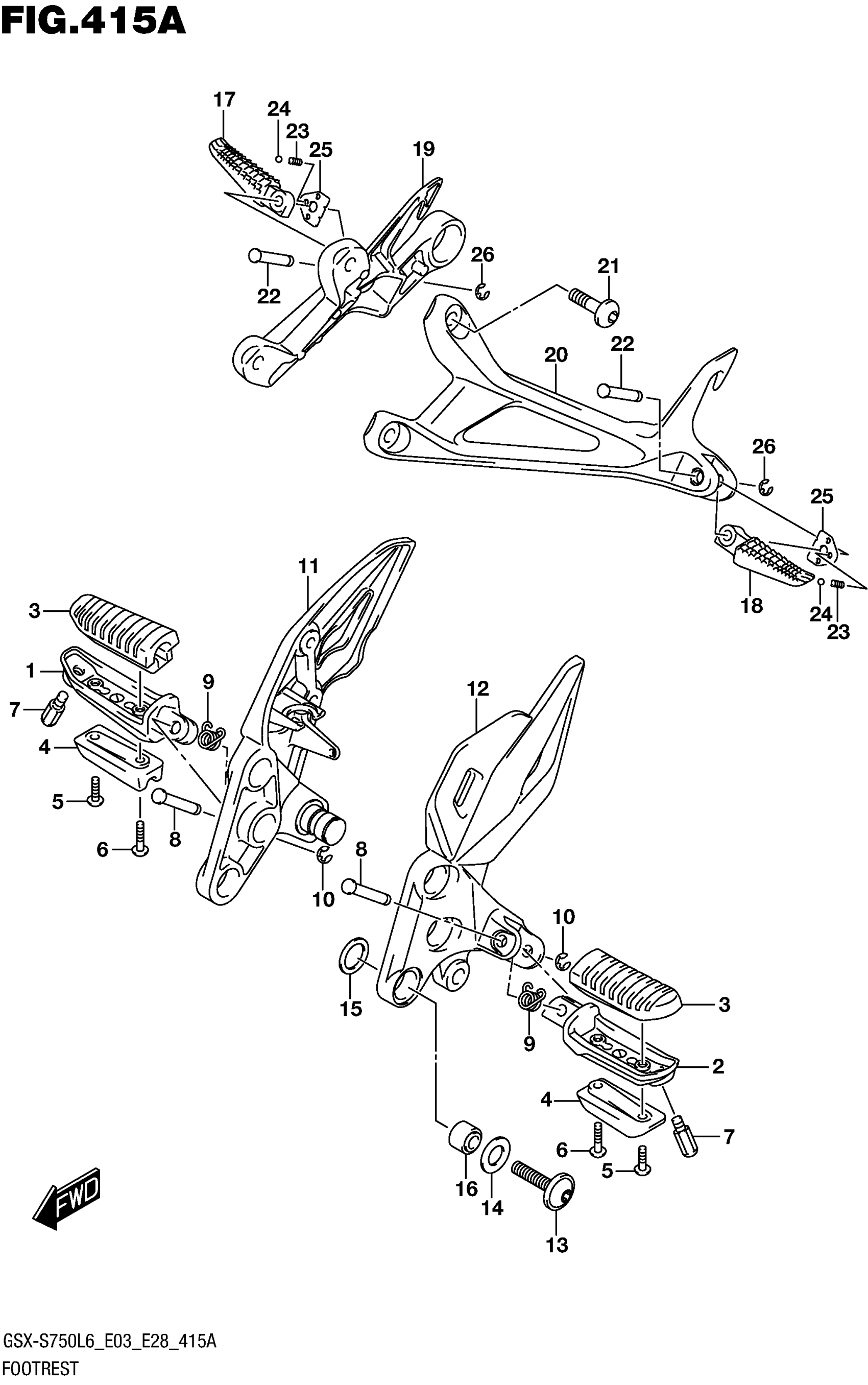

Find the part on the Footrest diagram for your 2016 Suzuki GSX-S750AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki GSX-S750AL6 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR,FR FOOTREST,R

43511-44G10

1
Out of stock

2

BAR,FR FOOTREST,L

43521-44G10

1
Out of stock

3

RUBBER

43550-44G20

2
Out of stock

4

BALANCER, FRONT FOOTREST

43536-44G00

2
Out of stock

5

SCREW

02142-0525A

2
Out of stock

6

SCREW

02142-0530A

2
Out of stock

7

BOLT, BANK SENSOR

43576-48B02

2
Out of stock

8

PIN

09208-08019

2
Out of stock

9

SPRING

09448-14046

2
Out of stock

10

E RING

08332-1106A

2
Out of stock

11

BRACKET, FRONT FOOTREST RH

43510-08J00

1
Out of stock

12

BRACKET, FRONT FOOTREST LH

43521-08J00

1
Out of stock

13

BOLT (8X30)

09106-08147

6
Out of stock

14

WASHER (13.7X24X2)

09161-13004

6
Out of stock

15

WASHER (17.2X24X2.2)

09161-17002

6
Out of stock

16

BUSH (8.4X20X16)

09319-08045

6
Out of stock

17

BAR,PILLION FOOTREST,R This part replaces 43611-37H00.

43611-37H20

1
Out of stock

18

BAR,PILLION FOOTREST,L This part replaces 43621-37H00.

43621-37H20

1
Out of stock

19

BRACKET, PILLION FOOTREST RH

43811-08J00-YAP

1
Out of stock

19

(BLACK)

43811-08J00-YAP

1
Out of stock

20

BRACKET, PILLION FOOTREST LH

43821-08J00-YAP

1
Out of stock

20

(BLACK)

43821-08J00-YAP

1
Out of stock

21

BOLT (8X23)

09106-08186

4
Out of stock

22

PIN

09208-08020

2
Out of stock

23

SPRING

09440-05003

2
Out of stock

24

BALL

06111-07004

2
Out of stock

25

PLATE,PILLION FOOTREST

43816-01H20

2
Out of stock

26

E RING

08332-1106A

2
Out of stock
