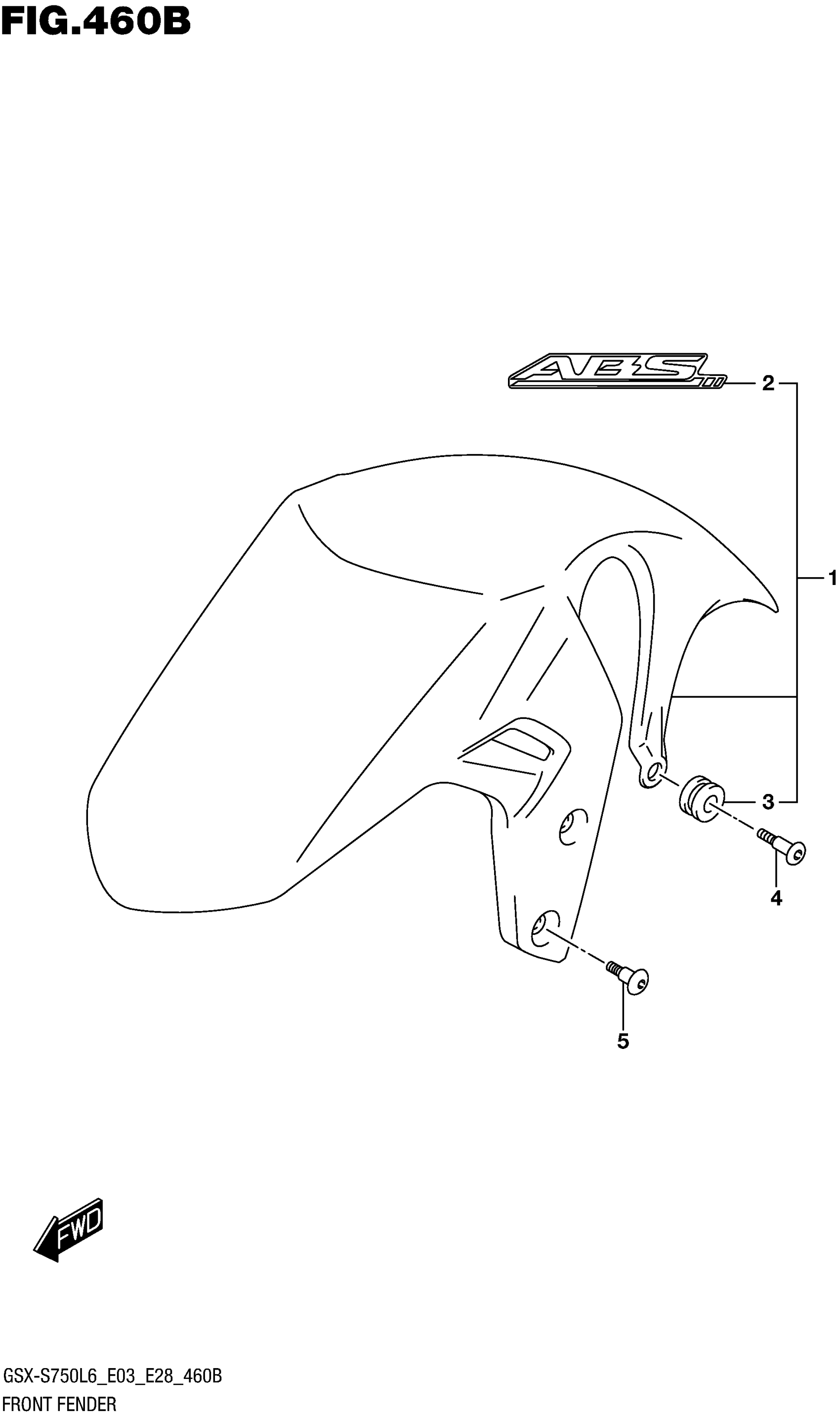

Suzuki GSX-S750AL6 (2016) FRONT FENDER (GSX-S750AL6 E28) Diagram

#

Description

Price

1-1

FENDER, FRONT (WHITE) | FOR AJX

53100-08J40-YWW

Unavailable

1-2

FENDER, FRONT (BLACK) | FOR YKV

53100-08J50-YKV

$214.80

1-3

FENDER ASSY,FRO | FOR YSF This part replaces 53100-08J40-YSF.

53100-08J41-YSF

$184.42

2-1

.EMBLEM,ABS (GRAY) | FOR AJX,YSF This part replaces 68151-44G00-1ZY.

68151-44G01-1ZY

$9.44

2-2

.EMBLEM,ABS (GRAY,BLACK) | FOR YKV This part replaces 68151-44G10-GWM.

68151-44G11-GWM

$13.92

3

.CUSHION

09320-09016

$2.01

4

SCREW (6X16)

09139-06146

$2.80

5

SCREW (6X16)

09139-06131

$2.80
