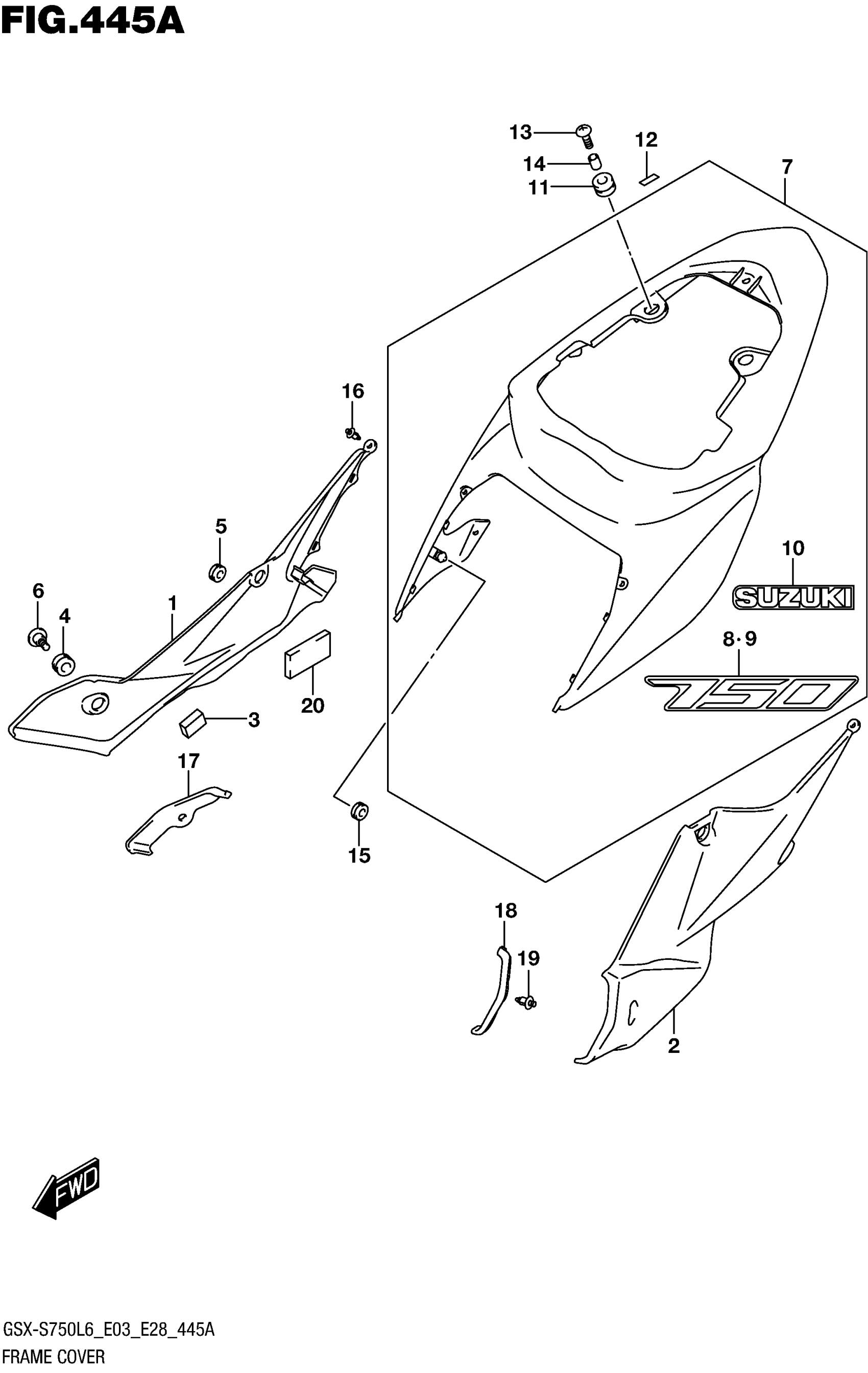

Suzuki GSX-S750AL6 (2016) FRAME COVER (FOR YKV,AJX) Diagram

#

Description
Price

1

COVER,FRAME FR, This part replaces 47511-08J00-291.

47511-08J01-291

$95.40

2

COVER,FRAME FR, This part replaces 47611-08J00-291.

47611-08J01-291

$86.87

3

CUSHION

94422-06G00

$6.57

4

CUSHION

09320-09016

$1.97

5

CUSHION

47113-37H00

$5.00

6

SCREW (6X20)

47118-08J00

$4.92

7-1

COVER SET,FRAME | FOR AJX This part replaces 47310-08J00-AJX.

47310-08J02-AJX

Unavailable

7-2

COVER SET,FRAME | FOR YKV This part replaces 47310-08J20-4TX.

47310-08J21-4TX

$291.15

8-1

.EMBLEM, "750" RH | FOR AJX

68161-08J00-AHS

$15.37

8-1

(BLACK/WHITE)

68161-08J00-AHS

$15.37

8-2

.EMBLEM, "750" RH (RED/BLACK) | FOR 4TX

68161-08J00-A39

Unavailable

9-1

.EMBLEM, "750" LH | FOR AJX

68171-08J00-AHS

$15.37

9-1

(BLACK/WHITE)

68171-08J00-AHS

$15.37

9-2

.EMBLEM, "750" LH (RED/BLACK) | FOR 4TX

68171-08J00-A39

$15.37

10-1

EMBLEM,SUZUKI | FOR AJX This part replaces 68171-28H00-YU8.

68171-28H01-YU8

$7.37

10-2

EMBLEM,"SUZUKI" | FOR 4TX This part replaces 68171-28H10-CTY.

68171-28H11-CTY

$9.18

11

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

12

TAPE, FRAME COVER CENTER

94443-06G00

$2.97

13

SCREW (6X20)

09136-06105

$1.99

14

SPACER (6.5X10X7)

09180-06283

$1.89

15

CUSHION

09320-08018

$2.80

16

CLIP (BLACK)

09409-06314-5PK

$2.80

17

COVER,FRAME TOP RH

47711-08J00

$8.30

18

COVER,FRAME TOP LH

47811-08J00

$8.30

19

CLIP

09409-07333

$2.29

20

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.80
