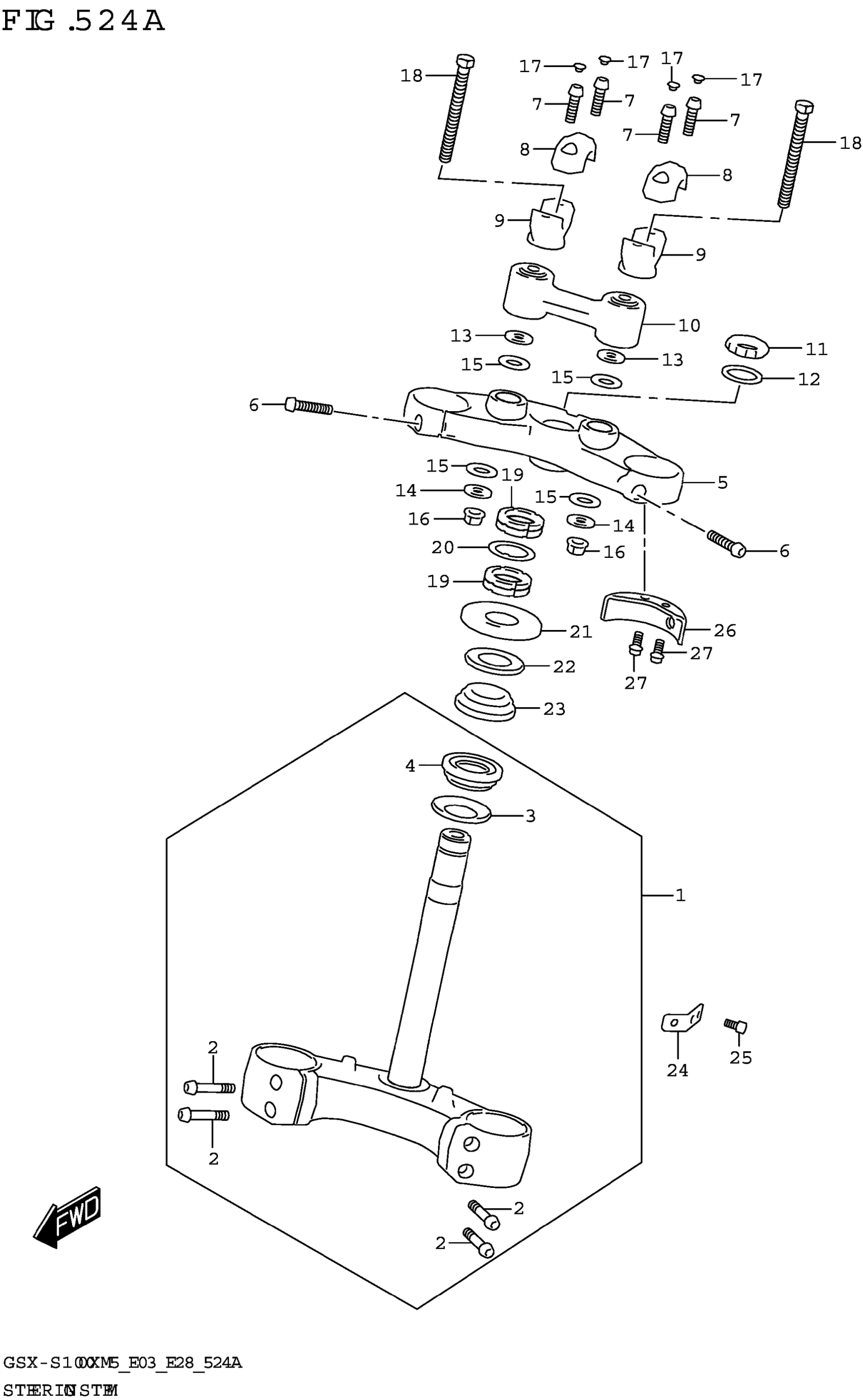

Suzuki GSX-S1000XRREM5 (2025) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER (BLACK)

51410-48KE0-291

$804.32

2

BOLT,BRACKET

51328-25L30

$3.85

3

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$8.65

4

.BEARING (30X55X17)

09267-30010

$43.41

5

BRACKET,UPPER (SILVER)

51310-48KE0-20H

$390.65

6

BOLT,BRACKET

51328-25L30

$3.85

7

BOLT,HANDLE HOLDER

51321-25L30

$2.80

8

HOLDER,HANDLE UPPER (SILVER)

51331-25L30-20H

$78.55

9

HOLDER,HANDLE LOWER (SILVER)

51332-48KE0-20H

$90.23

10

SPACER,HANDLE HOLDER LOWER (S | LVER)

51337-48KE0-20H

$202.15

11

NUT,STEM HEAD

51353-01H00

$32.73

12

WASHER,STEM HEAD

51354-01H00

$7.06

13

WASHER

51355-49G00

Unavailable

14

WASHER

51355-49G00

Unavailable

15

RUBBER SEAT

56245-49G00

$10.62

16

NUT

08319-3110A

$2.73

17

CAP (OD:10.5)

09250-06015

$2.75

18

BOLT,HANDLE HOLDER LOWER

51321-48KE0

$10.12

19

NUT,STEERING STEM

51631-33E00

$21.64

20

WASHER,STEERING STEM

51641-33E00

$5.67

21

COVER,STEERING UPR

51643-41G00

$8.20

22

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$8.65

23

.BEARING (30X55X17)

09267-30010

$43.41

24

BRACKET,FRONT FORK HARNESS

51583-48K00

$8.63

25

.BOLT

07130-0612B

$2.88

26

PLATE, STEERING LOCK

51911-04K00

$10.19

27

BOLT (8X16)

09103-08351

$3.52
