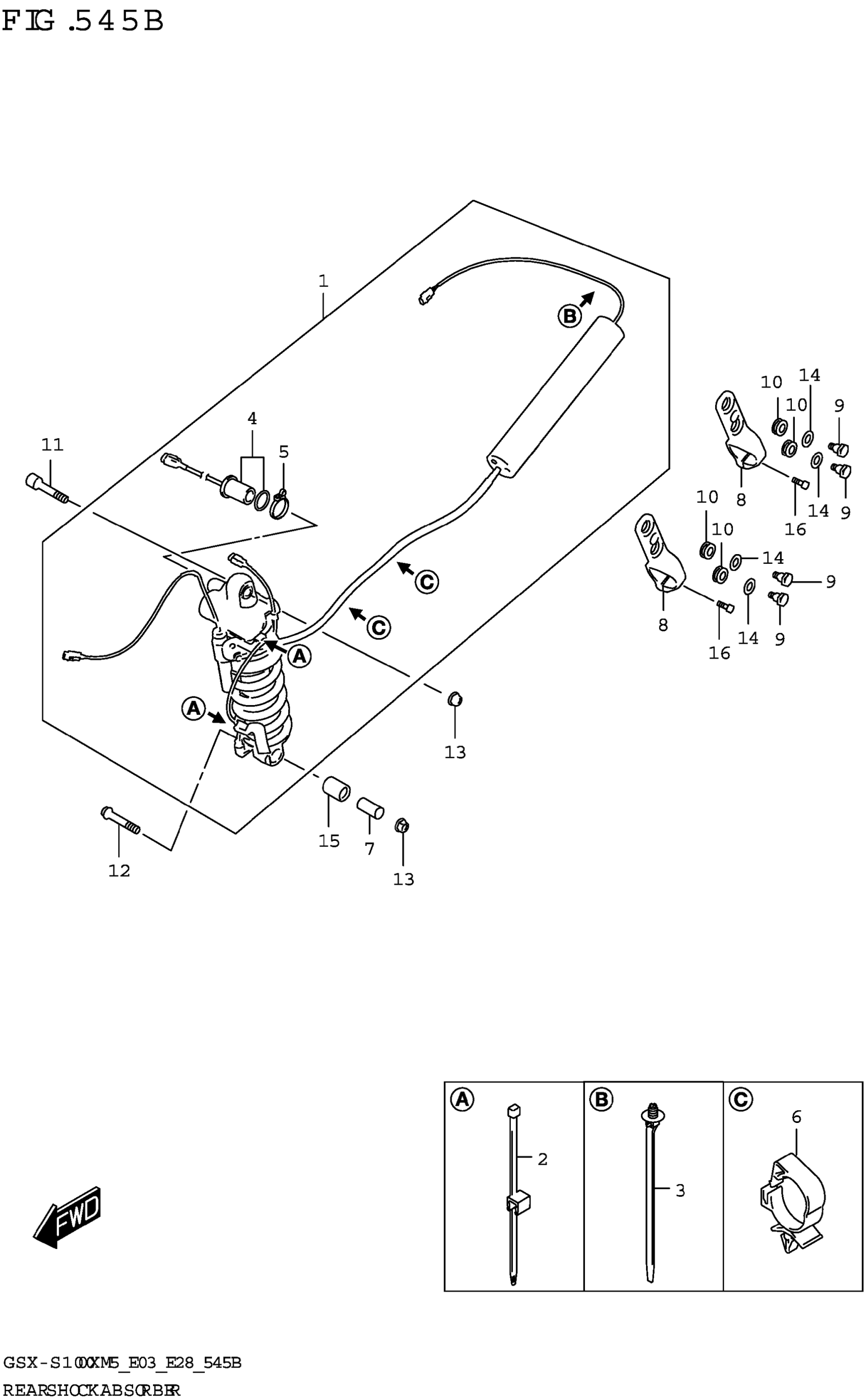

Suzuki GSX-S1000XRREM5 (2025) REAR SHOCK ABSORBER Diagram

Description

Price

ABSORBER ASSY,REAR SHOCK (GRA | )

62100-48KF0-17U

$4,413.73

.CLIP

62148-48KE0

$12.48

CLAMP (L:170)

09407-17403

$4.63

.SOLENOID

62450-48KE0

$426.03

.BAND

62149-48KE0

$6.28

CLAMP,CABLE

23915-78A20

Unavailable

SPACER,RR SHOCK ABS LWR

62317-47H00

$23.08

CLAMP,SPRING ADJUSTER

62391-48K00

$163.78

BOLT

62393-48K10

$16.85

CUSHION,CLAMP

62394-48K00

$6.67

BOLT,RR SHOCK ABS UPPER

62658-04K10

$16.23

BOLT (10X58)

09103-10428

$5.52

NUT (M10)

09159-10115

$3.21

WASHER (12.5X23X1.0)

09160-12067

$3.60

BEARING (17X24X32)

09263-17046

$45.05

BOLT

07130-0616B

$2.38
