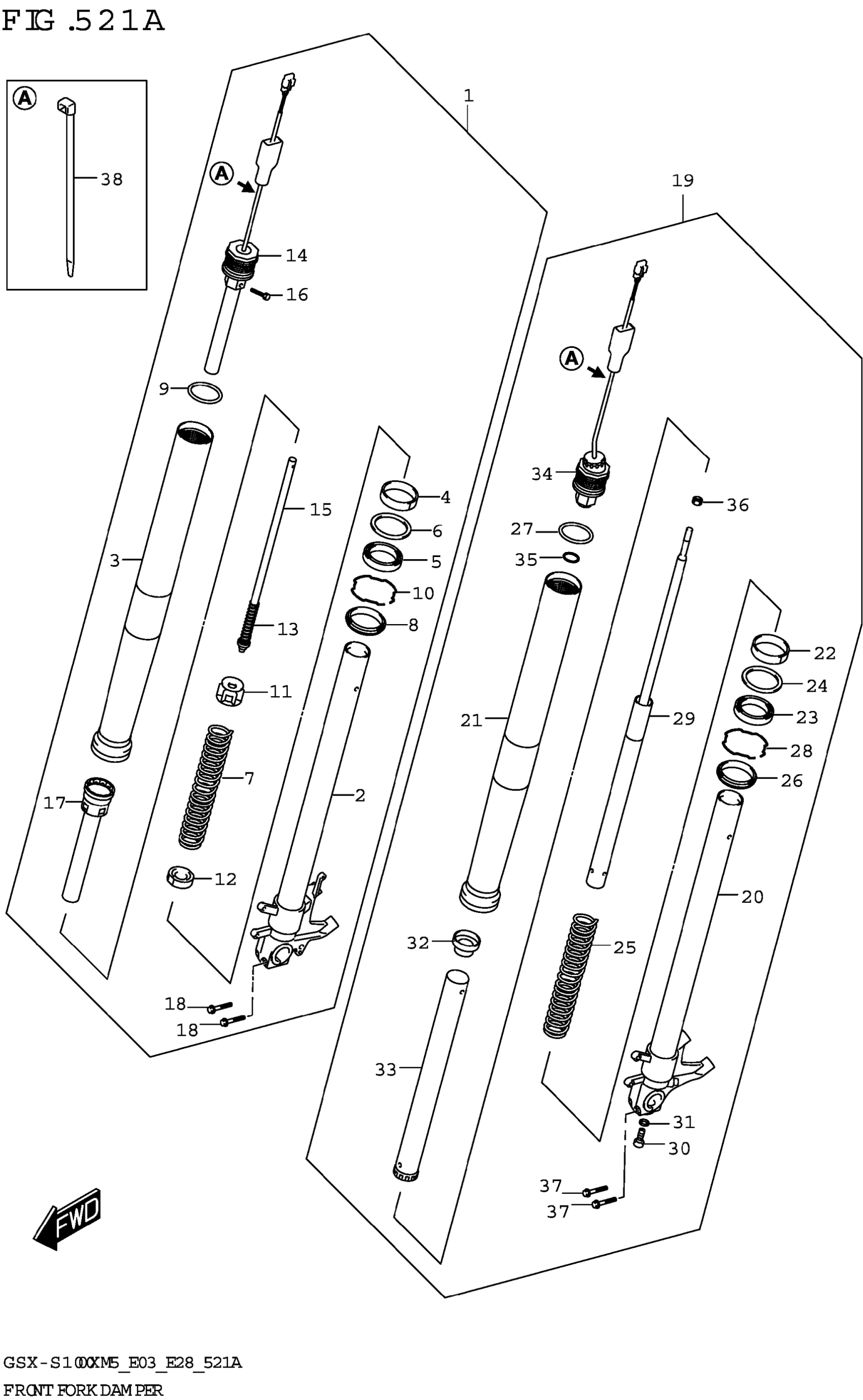

Suzuki GSX-S1000XRREM5 (2025) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,R

51103-48KE0

$1,625.47

2

.TUBE,INNER,R

51110-48KE0

$564.40

3

.TUBE,OUTER

51131-48KE0

$486.65

4

.BUSH, GUIDE

51152-47H00

$13.01

5

.SEAL,OIL

51153-27G00

$21.12

6

.SPACER,SEAL

51168-29G00

$8.65

7

.SPRING,FR

51171-48KE0

$51.48

8

.SEAL DUST

51173-48KE0

$20.12

9

..O-RING

51187-47H00

$6.52

10

.RING,STOPPER

51556-38B00

$6.61

11

.SPRING SEAT

51175-48KE0

$3.38

12

.COLLAR SPRING

51176-48KE0

$15.00

13

.REBOUND SPRING

51177-48KE0

$7.32

14

.BOLT,FORK R

51790-48KE0

$397.66

15

.ROD

51791-48KE0

$83.60

16

.BOLT

51792-48KE0

$30.35

17

.ROD COVER

51793-48KE0

$167.78

18

.BOLT,BRACKET UPPER

51328-44HB0

$5.02

19

DAMPER ASSY,L

51104-48KE0

$2,203.33

20

.TUBE,INNER,L

51120-48KE0

$540.73

21

.TUBE,OUTER

51131-48KE0

$486.65

22

.BUSH, GUIDE

51152-47H00

$13.01

23

.SEAL,OIL

51153-27G00

$21.12

24

.SPACER,SEAL

51168-29G00

$8.65

25

.SPRING,FR

51171-48KE0

$51.48

26

.SEAL DUST

51173-48KE0

$20.12

27

..O-RING

51187-47H00

$6.52

28

.RING,STOPPER

51556-38B00

$6.61

29

.DAMPER SUB

51128-48KE0

$460.57

30

.BOLT (8X18)

51147-06F10

$6.75

31

O RING This part replaces 51148-31030.

51148-36011

$3.26

32

.SPRING SEAT STOPPER

51178-48KE0

$40.95

33

.COLLAR SPRING

51198-48KE0

$34.41

34

.SOLENOID SET,FR FORK

51700-48810

$787.47

35

.O-RING

51774-48KE0

$2.33

36

.NUT

51827-27E00

Unavailable

37

.BOLT,BRACKET UPPER

51328-44HB0

$5.02

38

CLAMP (L:145)

09407-14407

$2.80
