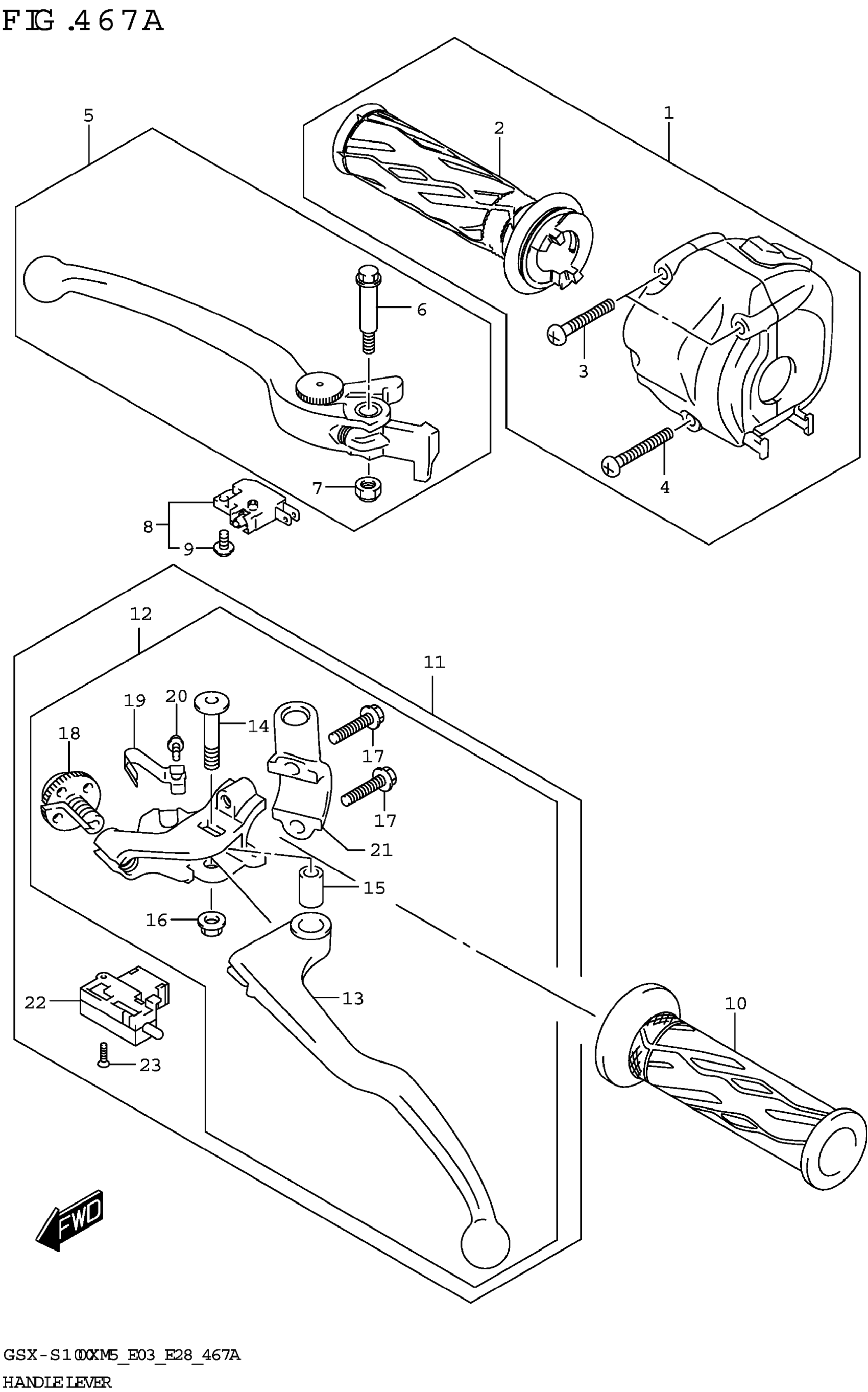

Suzuki GSX-S1000XRREM5 (2025) HANDLE LEVER Diagram

#

Description
Price

1

GRIP ASSY,THROTTLE

57100-06L50

$383.58

2

.GRIP,THROTTLE

57110-06L10

$33.75

3

.SCREW

02112-0530B

$1.45

4

.SCREW

02112-0540B

$2.88

5

LEVER ASSY,FRONT BRAKE

57300-10G40

$59.76

6

.BOLT,LEVER PIVOT

57431-17H02

$6.72

7

.NUT

08319-2106A

$1.89

8

SWITCH ASSY,FRONT BRAKE

37750-48K10

$86.90

9

.SCREW, FRONT BRAKE SWITCH

37755-48K00

$2.60

10

GRIP,L

57211-21H01

$10.18

11

LEVER SET,CLUTCH

57059-48K10

$125.73

12

.LEVER ASSY,CLUTCH

57500-48K10

$99.28

13

.LEVER, CLUTCH

57621-48K00

$25.15

14

.BOLT,LEVER PIVOT

57431-41G60

$11.78

15

.COLLAR

57532-41G00

$18.07

16

NUT

08319-3106B

$2.47

17

BOLT

01547-0625B

$2.43

18

.NUT,ADJUSTER

57641-33E21

$46.38

19

.SPRING,ADJUST

57644-33E10

Unavailable

20

.SCREW,ADJUST

57642-33E10

Unavailable

21

.HOLDER,CLUTCH LEVER

57512-41G00

$35.33

22

.SWITCH ASSY,CLUTCH

57560-05A10

$29.04

23

.SCREW,CLUTCH SWITCH

57562-41G01

$10.82
