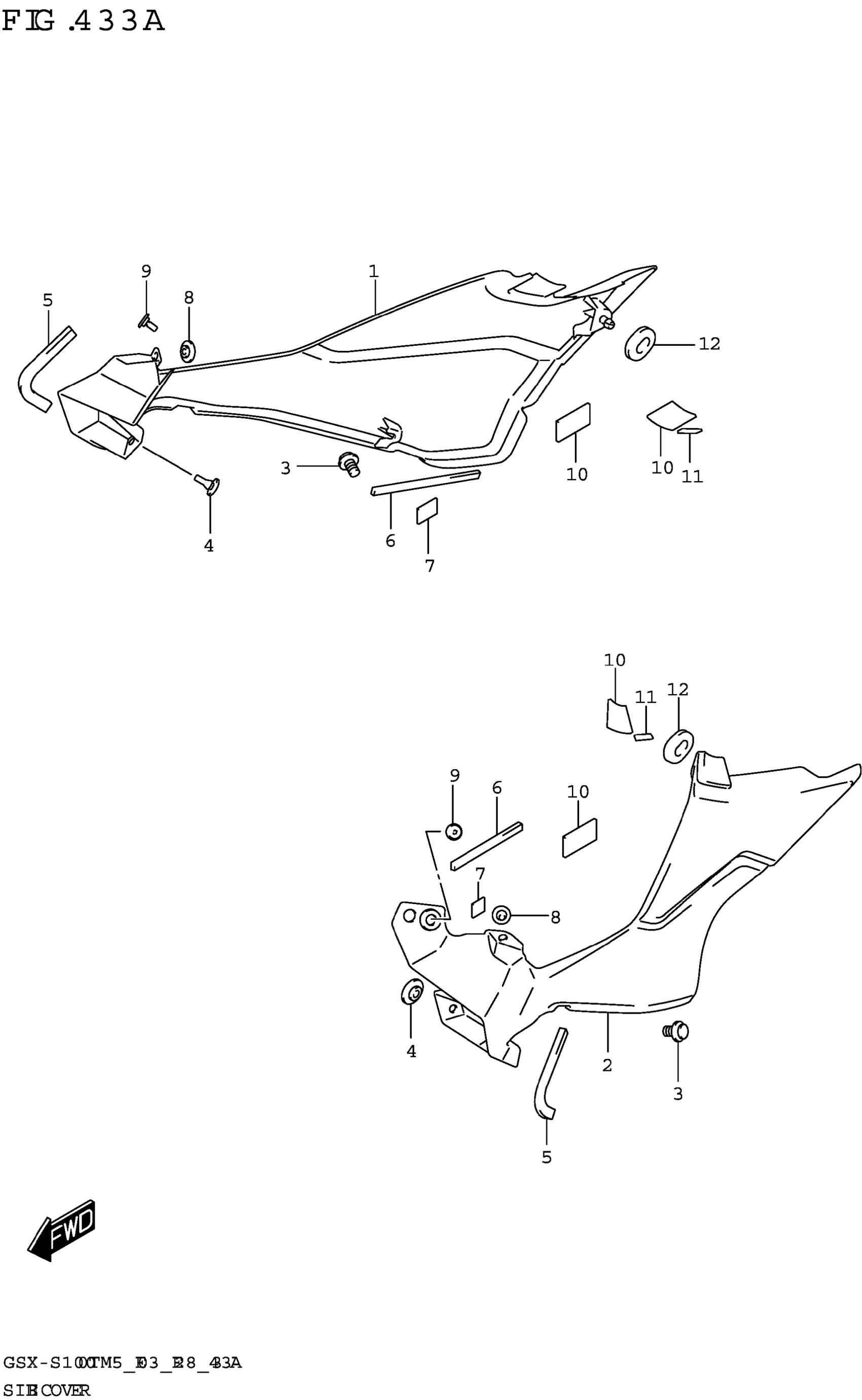

Suzuki GSX-S1000TRQM5(E03) (2025) SIDE COVER Diagram

#

Description
Price

1

COVER, FRAME FRONT RH

47111-48K10

$59.00

2

COVER, FRAME FRONT LH

47211-48K10

$59.00

3

CLIP

09409-10314

$1.99

4

CUSHION

09321-06026

$2.15

5

CUSHION (10X10X120)

63312-29F00

$7.77

6

CUSHION (5X120X6)

44176-31J00

$3.10

7

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.01

8

CUSHION,SEAT MOUNT

45148-27J00

$19.43

9

SCREW (5X13)

09139-05091

$2.01

10

FASTENER (33X25X2.6)

44572-13G00

$10.13

11

CUSHION,SPOILER (6X25X2)

47161-40D10

$1.33

12

CUSHION

09320-08029

$2.51
