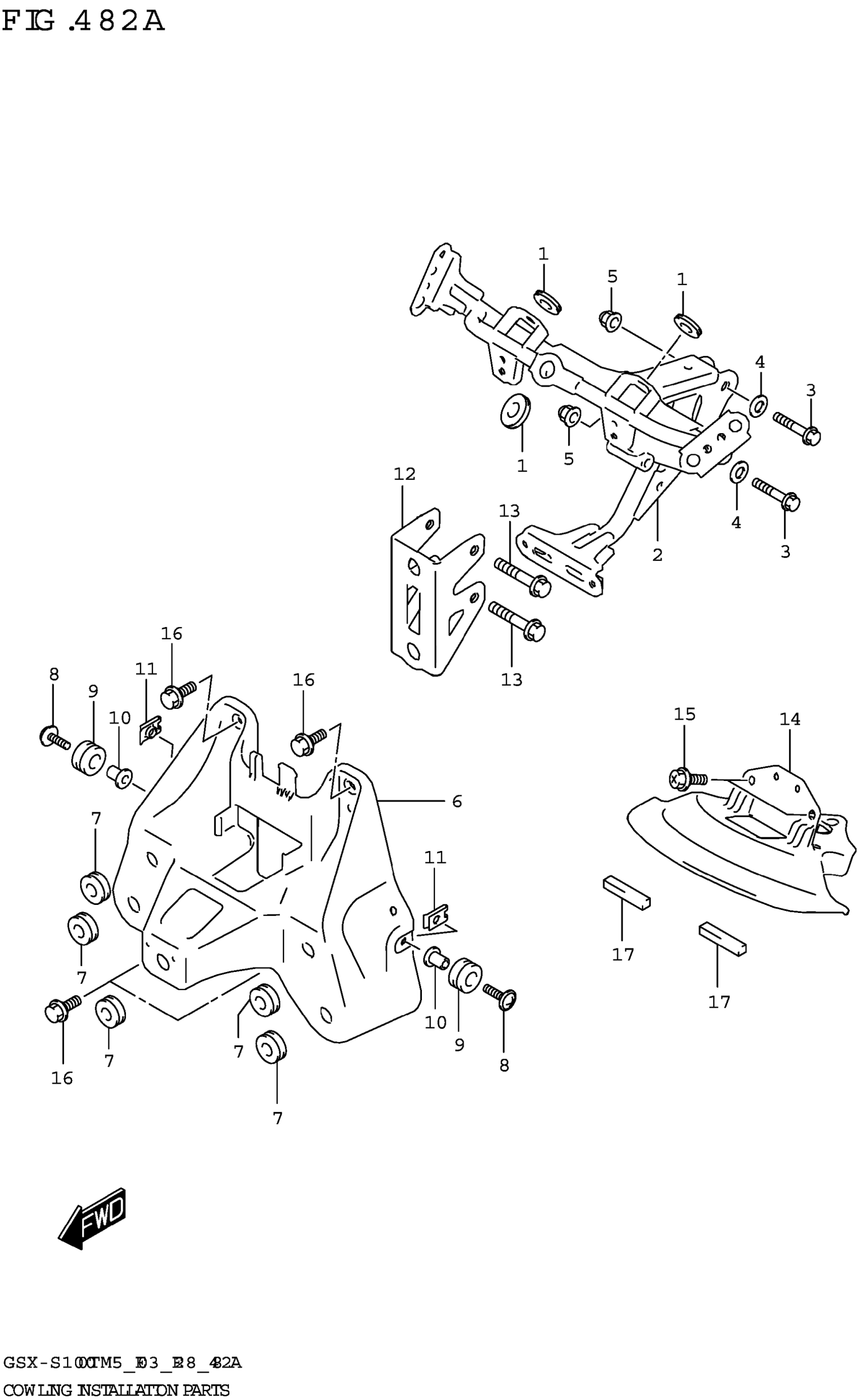

Suzuki GSX-S1000TRQM5(E03) (2025) COWLING INSTALLATION PARTS Diagram

Description

Price

CUSHION (8x26x7)

09320-08018

$2.80

BRACE, COWLING

94510-48K00

$200.60

BOLT

01550-0840A

$2.80

WASHER (8.5X18X2.0)

09160-08120

$2.21

NUT

08313-2008A

$2.50

BRACE, HEADLAMP

94571-48K00

$82.80

CUSHION (8X26X7)

09320-08028

$2.80

SCREW

09136-06126

$3.42

.CUSHION,SEAT MOUNT

45148-04K00

$7.30

WASHER

09169-06070

$5.17

NUT

09148-06020

$4.01

BRACKET, RECTIFIER

47410-48K00

$11.90

BOLT

01550-0650A

$3.10

COVER, LWR BRACKET

94458-48K00

$36.87

BOLT (6X12)

09111-06107

$2.66

BOLT (6X16)

09111-06089

$2.61

CUSHION (12X50X10)

94412-31F00

$2.40
